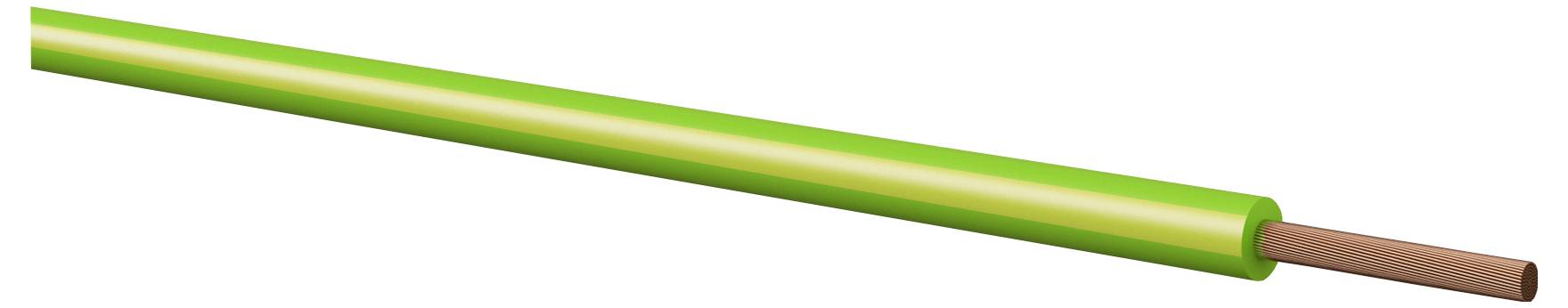

Kabeltronik 160105028 Braid LiFY 1 x 0.5 mm² Green-yellow 100 m
Product type
Braid
No. of leads
1 x
Cross section (each core)
0.5 mm²
Cable type
LiFY
Content
100 m
Datasheet (PDF)
Part number:
Item no:
Technical specifications
- Type: Insulated single wires
- Weight kg/km: 8.80 kg/km.
- CU weight kg/km: 5.00 kg/km.
- Item group name: LifY
- Wire Ø 2 mm
- Bending radius quiet: Min. 8 x
- Bending radius, moving: Min. 10 x
- Use: Flexible connections in wiring technology, as well as measurement leads.
- Product type
Braid
- No. of leads
1 x
- Content
100 m
- Cross section (each core)
0.5 mm²
- Insulation material
PVC
- Cable features
Extremely flexible
- Cable type
LiFY
- Nominal voltage
900 V
- Halogen-free
No
- Manufacturer part #
160105028
- Factory colour
Green-yellow
- Core layout
256 x 0.05 mm
- Material (details)
Cu strand
- Certification marks
none
- Test voltage
2500 V
- Cross section
1 x 0.5 mm²
- Max. temperature range (flexible installation)
+70 °C
- Min. temperature range (flexible installation)
-5 °C
- Max. temperature range (fixed installation)
+70 °C
- Min. temperature range (fixed installation)
-30 °C
- Type
LifY 0,50 qmm gn-ge
Documents & Downloads
Datasheet
Datasheet 3805050 Kabeltronik 160105028 Braid LiFY 1 x 0.5 mm² Green-yellow 100 m
User & Safety Instructions
User & Safety Instructions 3805050 Kabeltronik 160105028 Braid LiFY 1 x 0.5 mm² Green-yellow 100 m
Description
Flexible connections in wiring technology, as well as measurement lead.
