Name: Kabeltronik 2-LifYCY TP Control lead 36 x 0.08 mm² Grey 823600800 100 m
Brand: Kabeltronik
SKU: 3804740

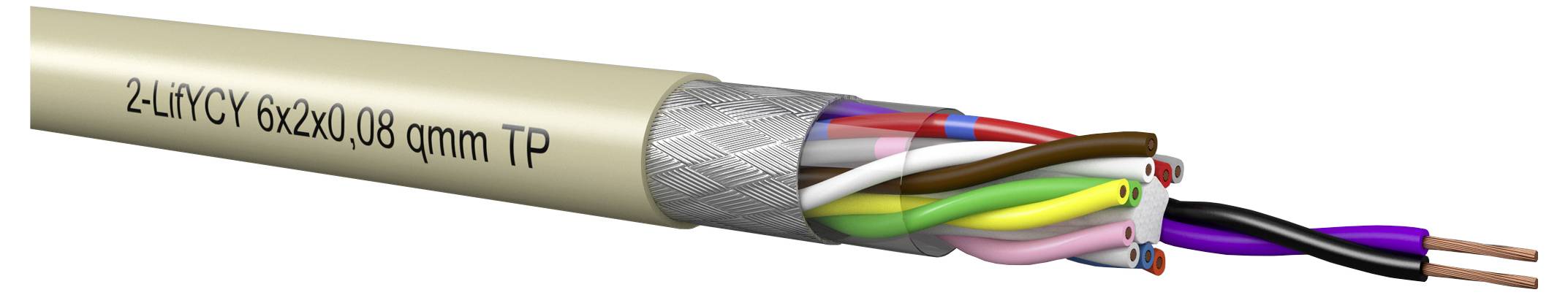

Close-up of a multi-core electrical cable labeled 2-LITCY 6x2x0,08 qmm TP, with six colored insulated wires exposed at the cut end.

Image similar

Product type

Control lead

No. of leads

36 x

Cross section (each core)

0.08 mm²

Cable type

2-LifYCY TP

Outside Ø

9.1 mm

Datasheet (PDF)

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Type: Multi-conductor cables
Weight kg/km: 121.00 kg/km.
CU weight kg/km: 54.00 kg/km.
Highly flexible control cable for moving applications without forced guidance and tensile loading in electronics, control, measurement and control technology.
Number of pairs: 18
Wire diameter 0.8 mm
Overall shield: Copper braid, VZ.

Product type: Control lead

No. of leads: 36 x

Content: 100 m

Cross section (each core): 0.08 mm²

Cable features: Shielded
Extremely flexible
twisted pairs

Cable type: 2-LifYCY TP

Outside Ø: 9.1 mm

Type: 18 Pairs

Bend radius (no. of ODs for fixed installation): 10

Bend radius (no. of ODs for flexible installation): 15

Halogen-free: No

Manufacturer part #: 823600800

Factory colour: Grey

Insulation material: PVC

Insulation: PVC

Core layout: 40 x 0.05 mm

Material (details): Cu-wire, BLK

Nominal voltage: 100 V

Certification marks: None

Test voltage: 350 V

Cross section: 36 x 0.08 mm²

Max. temperature range (flexible installation): +70 °C

Min. temperature range (flexible installation): -5 °C

Max. temperature range (fixed installation): +70 °C

Min. temperature range (fixed installation): -25 °C

Type: 2-LifYCY 18x2x0,08 qmm (TP)

Documents & Downloads

Datasheet

Datasheet 3804740 Kabeltronik 2-LifYCY TP Control lead 36 x 0.08 mm² Grey 823600800 100 m

User & Safety Instructions

User & Safety Instructions 3804740 Kabeltronik 2-LifYCY TP Control lead 36 x 0.08 mm² Grey 823600800 100 m

Description

Highly flexible control cable for moving applications without forced management and tensile loading in electronics, control, measurement and control technology.
