Name: Kabeltronik 2-LiHCH TP FRNC Control lead 16 x 0.14 mm² Grey 431601400 100 m
Brand: Kabeltronik
SKU: 1304367

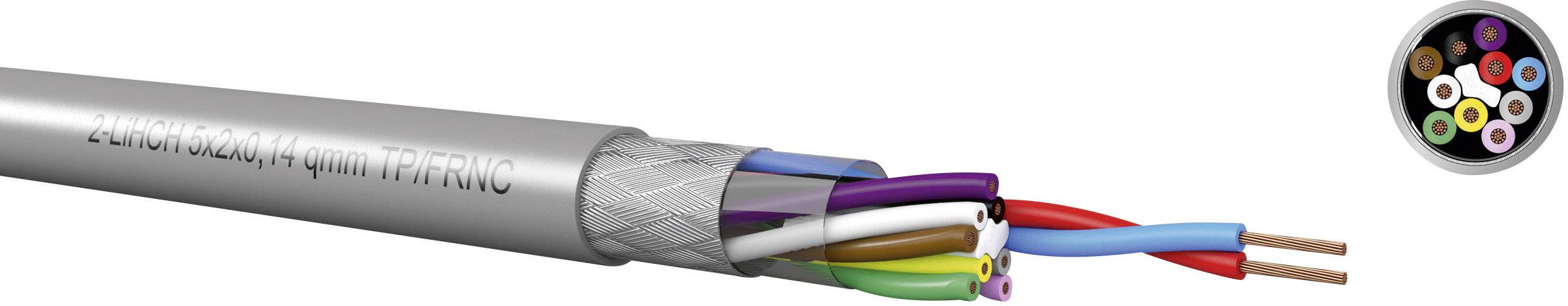

A grey, multi-core cable with coloured wires inside. A cross-section shows the arrangement of the wires. Suitable for TV/radio.

Image similar

Product type

Control lead

No. of leads

16 x

Cross section (each core)

0.14 mm²

Cable type

2-LiHCH TP FRNC

Outside Ø

7.8 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

2-LiHCH TP control cable, twisted-strand

Technical specifications

Product type: Control lead

No. of leads: 16 x

Content: 100 m

Cross section (each core): 0.14 mm²

Cable features: Shielded
Flame-retardant
twisted pairs

Cable type: 2-LiHCH TP FRNC

Outside Ø: 7.8 mm

Packaged: Yes

Bend radius (no. of ODs for fixed installation): 10

Bend radius (no. of ODs for flexible installation): 15

Halogen-free: Yes

Manufacturer part #: 431601400

Factory colour: Grey

Insulation material: PE-EVA

Insulation: FRNC

Core layout: 18 x 0.10 mm

Sold per metre: No

Nominal voltage: 350 V

Cross section: 16 x 0.14 mm²

Suited for cable carriers: No

Max. temperature range (flexible installation): +70 °C

Min. temperature range (flexible installation): -5 °C

Max. temperature range (fixed installation): +80 °C

Min. temperature range (fixed installation): -25 °C

Type: 431601400

Documents & Downloads

Datasheet

Datasheet 1304367 Kabeltronik 2-LiHCH TP FRNC Control lead 16 x 0.14 mm² Grey 431601400 100 m

User & Safety Instructions

User & Safety Instructions 1304367 Kabeltronik 2-LiHCH TP FRNC Control lead 16 x 0.14 mm² Grey 431601400 100 m

Description

Control lines FRNC are suitable for the application in the signal, measurement, control and regulation technology as well as in the computer peripheral where safety regulations require the use of halogen-free flame-retardant cables/. The few stranding optimizes the Crosstalk attenuation and prevents largely electrical couplings within the cable. Interference-free transmission and increased mechanical load
By copper braid shielding.

This text is machine translated.
