Kabeltronik 2-LiHCH TP FRNC Control lead 50 x 0.14 mm² Grey 435001400 100 m

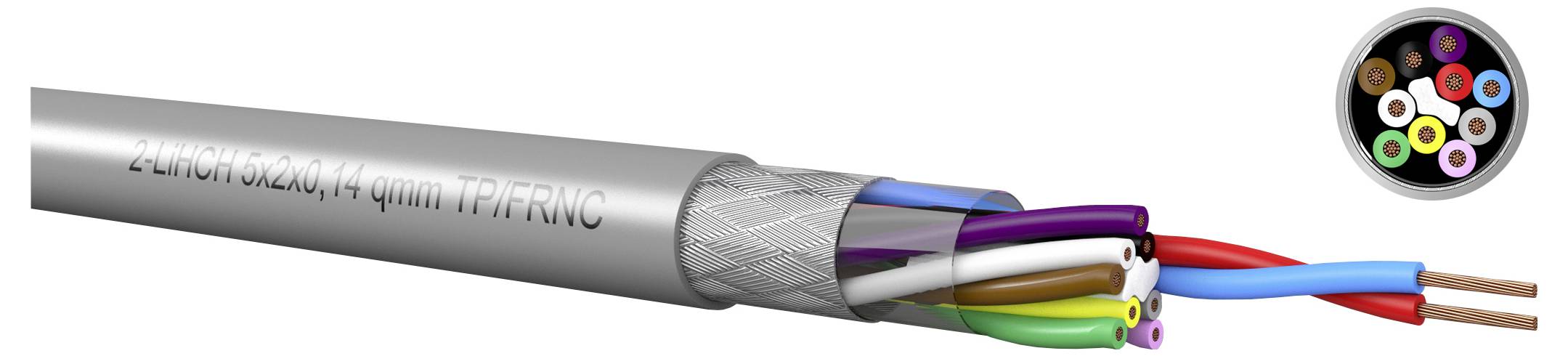

Cutaway of a gray cable showing multiple colored inner wires and braided shielding, with two red and blue insulated wires extending from the end.
Image similar
Product type
Control lead
No. of leads
50 x
Cross section (each core)
0.14 mm²
Cable type
2-LiHCH TP FRNC
Outside Ø
12 mm
Datasheet (PDF)
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

  • Type: Multi-conductor cables
  • Weight kg/km: 225.00 kg/km.
  • CU weight kg/km: 127.40 kg/km.
  • Use: In signal, measurement, control and regulation technology and in IT peripherals.
  • Number of pairs: 25
  • Wire diameter 1.05 mm
  • Overall shield: Copper braid, VZ.
Product type

Control lead

No. of leads

50 x

Content

100 m

Cross section (each core)

0.14 mm²

Cable features

Shielded

Flame-retardant

twisted pairs

Cable type

2-LiHCH TP FRNC

Outside Ø

12 mm

Type

25 pairs

Bend radius (no. of ODs for fixed installation)

10

Bend radius (no. of ODs for flexible installation)

15

Halogen-free

Yes

Manufacturer part #

435001400

Factory colour

Grey

Insulation material

PE-EVA

Insulation

PE-EVA

Core layout

18 x 0.10 mm

Material (details)

Cu-wire, BLK

Nominal voltage

350 V

Certification marks

None

Test voltage

800 V

Cross section

50 x 0.14 mm²

Max. temperature range (flexible installation)

+70 °C

Min. temperature range (flexible installation)

-5 °C

Max. temperature range (fixed installation)

+80 °C

Min. temperature range (fixed installation)

-25 °C

Type

2-LiHCH 25 x 2 x 0,14 qmm TP

Documents & Downloads

Datasheet

Datasheet 3804743 Kabeltronik 2-LiHCH TP FRNC Control lead 50 x 0.14 mm² Grey 435001400 100 m

User & Safety Instructions

User & Safety Instructions 3804743 Kabeltronik 2-LiHCH TP FRNC Control lead 50 x 0.14 mm² Grey 435001400 100 m

Description

For use in signal, measurement, control and regulation systems and IT peripherals.
