Name: Kabeltronik 2-PURtronic-C-UL FRNC Control lead 4 x 0.09 mm² Black 217042800 100 m
Brand: Kabeltronik
SKU: 3804744

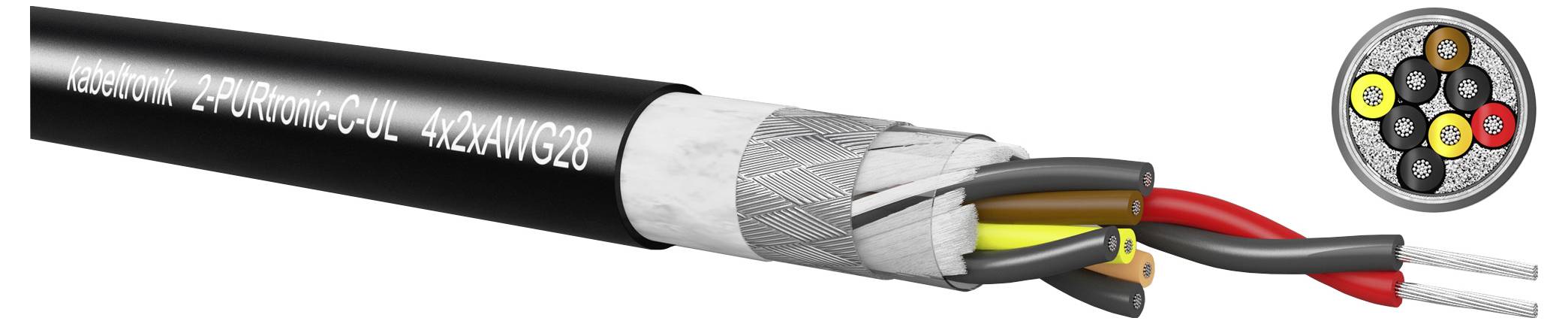

Cutaway of a 4-core electrical cable showing color-coded insulated wires inside a black outer sheath.

Image similar

Product type

Control lead

No. of leads

4 x

Cross section (each core)

0.09 mm²

Cable type

2-PURtronic-C-UL FRNC

Outside Ø

5.9 mm

Datasheet (PDF)

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Type: Multi-conductor cables
Weight kg/km: 39.00 kg/km.
CU weight kg/km: 16.10 kg/km.
For use in measurement, signal, control and regulation systems and at mechanically demanding indoor and outdoor applications.
Number of pairs: 2
Wire diameter 1.05 mm
Overall shield: Copper braid, VZ.

Product type: Control lead

No. of leads: 4 x

Content: 100 m

Cross section (each core): 0.09 mm²

Cable features: Shielded
High abrasion-proofness, durability and tensile strength
Flame-retardant
Hydrolysis resistant
Flexible at low temperature
germ-resistant
largely oil-resistant

Cable type: 2-PURtronic-C-UL FRNC

AWG max.: 28

Outside Ø: 5.9 mm

Type: 2 pairs

Bend radius (no. of ODs for fixed installation): 5

Bend radius (no. of ODs for flexible installation): 10

Halogen-free: Yes

Manufacturer part #: 217042800

Factory colour: Black

Insulation material: PP

Insulation: PUR

Core layout: 10 x 0.10 mm

Material (details): Cu-strand, VZ.

Nominal voltage: 600 V

Certification marks: UL, cUL

Test voltage: 2000 V

Cross section: 4 x 0.09 mm²

Max. temperature range (flexible installation): +80 °C

Min. temperature range (flexible installation): -30 °C

Max. temperature range (fixed installation): +80 °C

Min. temperature range (fixed installation): -50 °C

Type: 2-PURtronic-C-UL 2 x 2 x AWG 28/10

Documents & Downloads

Datasheet

Datasheet 3804744 Kabeltronik 2-PURtronic-C-UL FRNC Control lead 4 x 0.09 mm² Black 217042800 100 m

User & Safety Instructions

User & Safety Instructions 3804744 Kabeltronik 2-PURtronic-C-UL FRNC Control lead 4 x 0.09 mm² Black 217042800 100 m

Description

For use in measurement, signal, control and regulation systems and at mechanically demanding indoor and outdoor applications.
