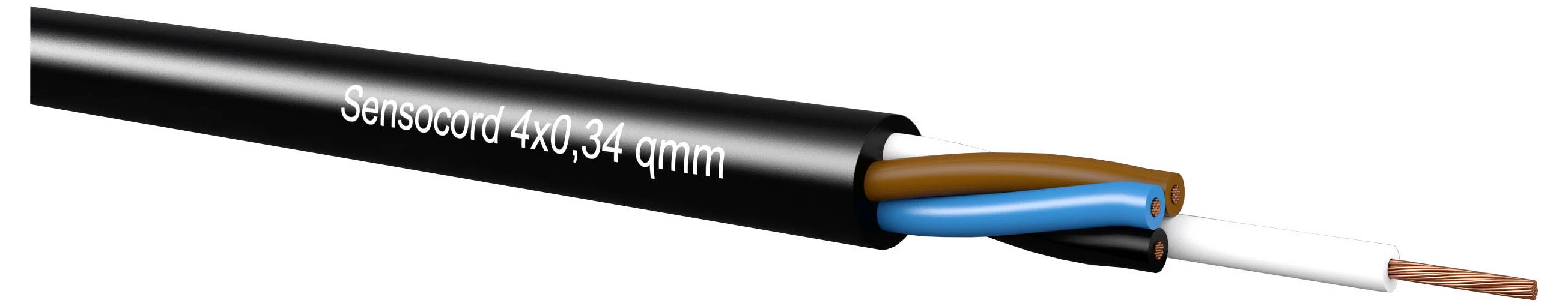

Image similar
Kabeltronik 245401409 Sensor lead Sensocord® 4 x 0.14 mm² Black 100 m
Product type
Sensor lead
No. of leads
4 x
Cross section (each core)
0.14 mm²
Cable features
Unshielded
Cable type
Sensocord®
Datasheet (PDF)
Part number:
Item no:
Technical specifications
- Type: Multi-conductor cables
- Weight kg/km: 22.60 kg/km.
- CU weight kg/km: 5.50 kg/km.
- Use: Connecting line between sensor and actuator in measurement and control technology.
- Wire diameter 1.1 mm
- Conductor material: Cu-strand, BLK.
- Product type
Sensor lead
- Cable type
Sensocord®
- No. of leads
4 x
- Cross section (each core)
0.14 mm²
- Cross section
4 x 0.14 mm²
- Cable features
Unshielded
- Outside Ø
3.9 mm
- Factory colour
Black
- Content
100 m
- Nominal voltage (details)
900 V
- Test voltage
2500 V
- Bend radius (no. of ODs for fixed installation)
8
- Bend radius (no. of ODs for flexible installation)
15
- Halogen-free
No
- Shielded
No
- Manufacturer part #
245401409
- Insulation material
PVC
- Insulation
PVC
- Core layout
18 x 0.10 mm
- Min. temperature range (flexible installation)
-10 °C
- Max. temperature range (flexible installation)
+70 °C
- Min. temperature range (fixed installation)
-30 °C
- Max. temperature range (fixed installation)
+70 °C
- Certification marks
None
- Type
Sensocord® 4x0,14qmm
Documents & Downloads
Datasheet
Datasheet 3805113 Kabeltronik 245401409 Sensor lead Sensocord® 4 x 0.14 mm² Black 100 m
User & Safety Instructions
User & Safety Instructions 3805113 Kabeltronik 245401409 Sensor lead Sensocord® 4 x 0.14 mm² Black 100 m
Description
Connection cable between sensor and actuator in measurement and control technology.
