Name: Kabeltronik 530126703 Network cable 2 x 0.14 mm² Green 100 m
Brand: Kabeltronik
SKU: 3804892

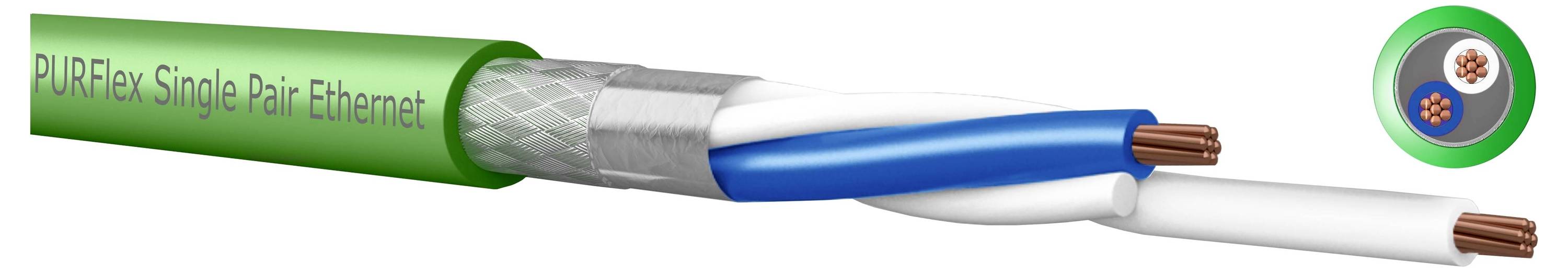

Cutaway of a PURFlex single-pair Ethernet cable showing two insulated copper conductors inside a green outer jacket.

Image similar

Product type

Network cable

Cable type

Ethertronic SPE

No. of leads

2 x

Cross section (each core)

0.14 mm²

Cable features

Shielded

Flame-retardant

Suitable for drag chains

PUR coating

Halogen-free

Datasheet (PDF)

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Type: Multi-conductor cables
Weight kg/km: 25.00 kg/km.
CU weight kg/km: 15.00 kg/km.
Product group name: Ethertronic SPE
Bending radius quiet: Min. 8 x
Bending radius, moving: Min. 15 x
Single Pair Ethernet (SPE) cable for drag chain-compatible and flexible connections of sensors and actuators in machine and plant engineering as well as applications in building, automation and automotive technology, where cables are permanently moved and mechanically stressed.
Overall shield: Copper braid, VZ.
Conductor material: Cu-strand, BLK.
Note: Suitable for drag chains
Conductor construction 7 x 0.16 mm
Sheath material: PUR
Nominal voltage: 300 V
Test voltage 2000 V

Product type: Network cable

Cable type: Ethertronic SPE

No. of leads: 2 x

Cross section (each core): 0.14 mm²

Cross section: 2 x 0.14 mm²

Cable features: Shielded
Flame-retardant
Suitable for drag chains
PUR coating
Halogen-free

Outside Ø: 4.7 mm

Factory colour: Green

Content: 100 m

AWG max.: 26

Manufacturer part #: 530126703

Type: ETHERtronic PURFlex Single Pair Ethernet

Insulation material: Polyolefin

Min. temperature range (flexible installation): -30 °C

Max. temperature range (flexible installation): +70 °C

Min. temperature range (fixed installation): -40 °C

Max. temperature range (fixed installation): +80 °C

Halogen-free: Yes

Documents & Downloads

Datasheet

Datasheet 3804892 Kabeltronik 530126703 Network cable 2 x 0.14 mm² Green 100 m

User & Safety Instructions

User & Safety Instructions 3804892 Kabeltronik 530126703 Network cable 2 x 0.14 mm² Green 100 m

Description

Drag-chain single pair Ethernet (SPE) cable for robust and flexible connections of sensors and actuators in machine and plant engineering and applications in building, automation and vehicle technology, where cables are constantly moved and mechanically stressed.
