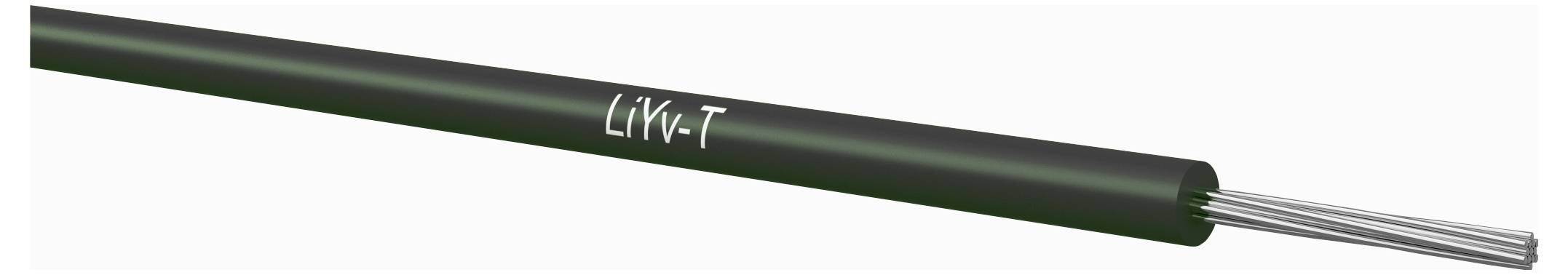

Kabeltronik 760102509 Braid LiYv-t 1 x 0.25 mm² Black 100 m
Product type
Braid
No. of leads
1 x
Cross section (each core)
0.25 mm²
Cable type
LiYv-t
Content
100 m
Datasheet (PDF)
Part number:
Item no:
Technical specifications
- Type: Insulated single wires
- Weight kg/km: 4.00 kg/km.
- CU weight kg/km: 2.40 kg/km.
- Product group name: Liv-t
- Wire Ø 1.6 mm
- Bending radius quiet: Min. 10 x
- Bending radius, moving: Min. 15 x
- Use: Wiring of device assemblies and racks, as well as for telecommunication devices and low-voltage systems.
- Product type
Braid
- No. of leads
1 x
- Content
100 m
- Cross section (each core)
0.25 mm²
- Insulation material
PVC
- Cable features
Heat-resistant
- Cable type
LiYv-t
- Nominal voltage
500 V
- Halogen-free
No
- Manufacturer part #
760102509
- Factory colour
Black
- Core layout
14 x 0.15 mm
- Material (details)
Cu-strand, VZ.
- Certification marks
none
- Test voltage
2500 V
- Cross section
1 x 0.25 mm²
- Max. temperature range (flexible installation)
+105 °C
- Min. temperature range (flexible installation)
-5 °C
- Max. temperature range (fixed installation)
+105 °C
- Min. temperature range (fixed installation)
-30 °C
- Type
LiYv-t 0,25 qmm sw
Documents & Downloads
Datasheet
Datasheet 3805092 Kabeltronik 760102509 Braid LiYv-t 1 x 0.25 mm² Black 100 m
User & Safety Instructions
User & Safety Instructions 3805092 Kabeltronik 760102509 Braid LiYv-t 1 x 0.25 mm² Black 100 m
Description
Wiring of device modules and racks, as well as for telecommunication devices and low-voltage systems.
