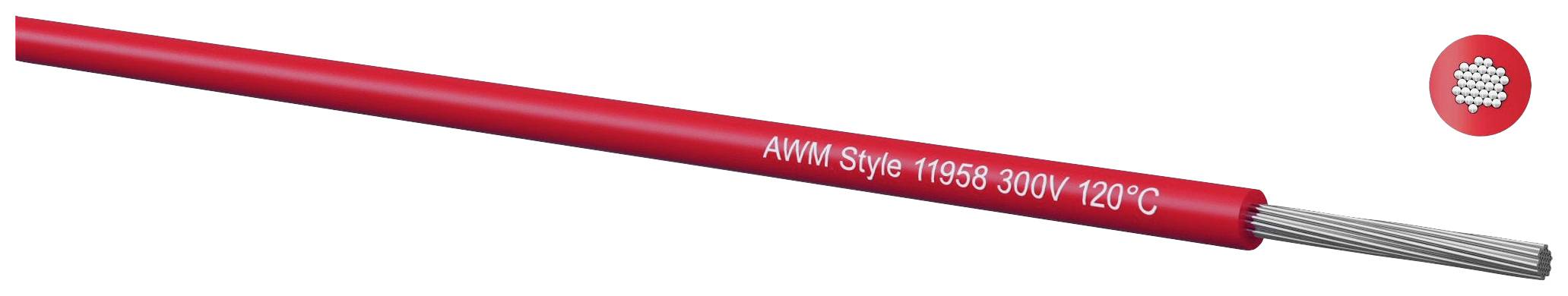

Kabeltronik 780240708 Braid UL 11958 1 x 0.22 mm² Red 500 m
Product type
Braid
No. of leads
1 x
Cross section (each core)
0.22 mm²
Cable type
UL 11958
Content
500 m
EAN:
Part number:
Item no:
Highlights & Details
Wire UL 11958, 300V 120°C AWG 24/7, rt
- For internal wiring of electrical appliances and switchboards. With extremely thin wall thicknesses and a wide temperature range, this is an excellent alternative to stranded PVC, fluoropolymer or cross-linked insulation. The insulation material shows good bending and changing behavior, has excellent aging properties and excellent chemical resistance. The material is also flame-resistant and free of materials inhibiting lacquer-wetting.
- This text is machine translated.
Technical specifications
- Wire diameter 1.20 mm
- Product type
Braid
- No. of leads
1 x
- Content
500 m
- Cross section (each core)
0.22 mm²
- Insulation material
TPE
- Cable features
Flame-retardant
Extremely thin-walled
Heat-resistant
Excellent bending properties
Excellent ageing
Excellent chemical resistance
PWIS-free
- Cable type
UL 11958
- Nominal voltage
300 V
- AWG max.
24
- Halogen-free
No
- Manufacturer part #
780240708
- Factory colour
Red
- Core layout
7 x 0.20 mm
- Certification marks
UL, cUL
- Test voltage
2500 V
- Cross section
1 x 0.22 mm²
- RoHS-compliant
Yes
- Max. temperature range (flexible installation)
+120 °C
- Min. temperature range (flexible installation)
-40 °C
- Max. temperature range (fixed installation)
+120 °C
- Min. temperature range (fixed installation)
-40 °C
- Type
780240708
- Bend radius (no. of ODs for flexible installation)
12.5
- Bend radius (no. of ODs for fixed installation)
7.5
24
