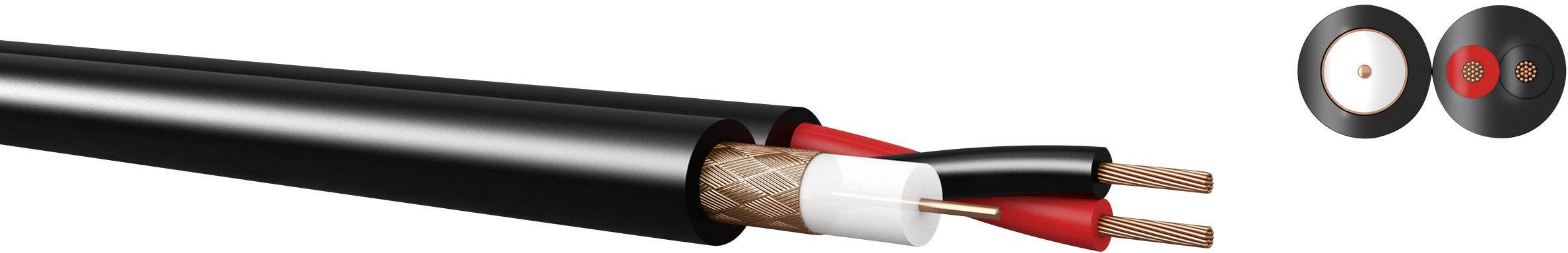

Kabeltronik 841752075 AV cable 1 x 0.33 mm² + 2 x 0.75 mm² Black 100 m
Product type
AV cable
No. of leads
1 x
Cross section (each core)
0.33 mm²
No. of leads (part 2)
2 x
Cross section (each core) (part 2)
0.75 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- 1 x 75 Ohm + 2 x 0.75 mm2
- Product type
AV cable
- No. of leads
1 x
- Cross section (each core)
0.33 mm²
- No. of leads (part 2)
2 x
- Cross section (each core) (part 2)
0.75 mm²
- Cross section
1 x 0.33 mm² + 2 x 0.75 mm²
- Cable features
Shielded
- Width
12.3 mm
- Height
6.1 mm
- Factory colour
Black
- Content
100 m
- Packaged
Yes
- Sold per metre
No
- Halogen-free
No
- Shielded
Yes
- Manufacturer part #
841752075
- Insulation material
PVC
- Min. temperature range (fixed installation)
-25 °C
- Max. temperature range (fixed installation)
+70 °C
- Min. temperature range (flexible installation)
-5 °C
- Max. temperature range (flexible installation)
+70 °C
- Core layout
Plain copper
- Core layout
Video: 1 x 0.60 mm · Netz: 24 x 0.20 mm
- Type
841752075
- Max. length sold by the metre
100 m
Documents & Downloads
Datasheet
Datasheet 1304524 Kabeltronik 841752075 AV cable 1 x 0.33 mm² + 2 x 0.75 mm² Black 100 m
User & Safety Instructions
User & Safety Instructions 1304524 Kabeltronik 841752075 AV cable 1 x 0.33 mm² + 2 x 0.75 mm² Black 100 m
Description
Connection of video monitoring systems, for example, CCTV. The cable can be separated for the Fabrication (video/power supply) and is up to the point of connection by the outer sheath protected.
