Image similar

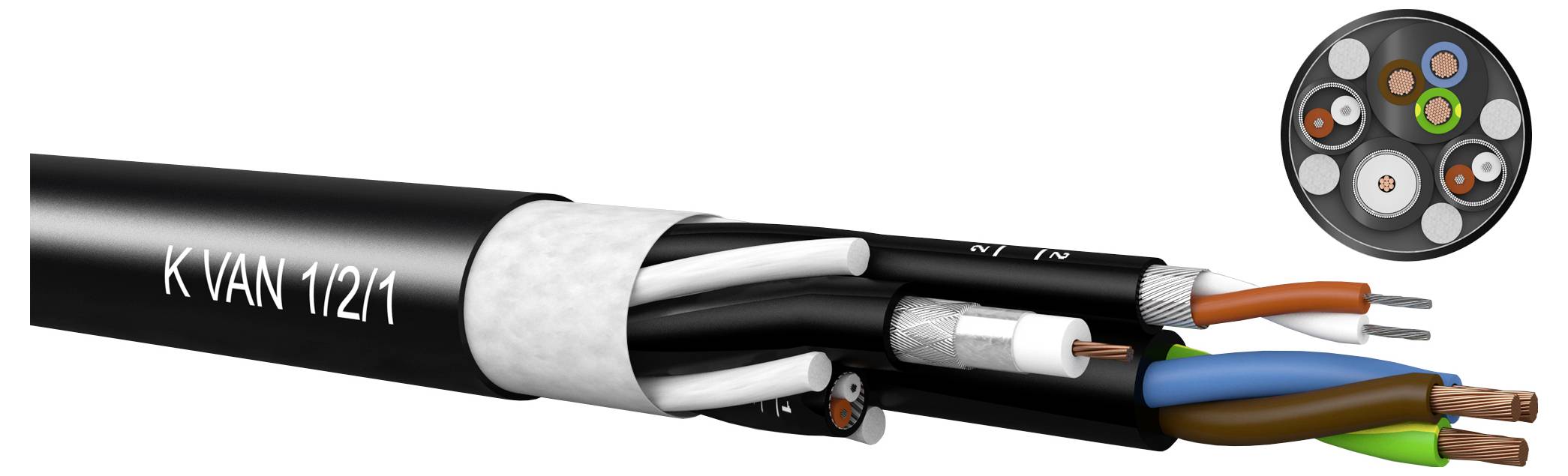

Kabeltronik 851231000 Cable combo K-VAN 3 x 1 mm² Black 100 m
Product type
Cable combo
Cable type
K-VAN
No. of leads
3 x
Cross section (each core)
1 mm²
Content
100 m
Datasheet (PDF)
Part number:
Item no:
Technical specifications
- Hybrid cable type
- Weight kg/km: 190.00 kg/km.
- CU weight kg/km: 83.00 kg/km.
- Usage: According to the design this cable can also be used for mobile applications, drum mode or fixed installation.
- Wire diameter 2.8 mm
- Conductor material: Cu-strand, BLK.
- Element shield: Foil, copper braid, VZ.
- Element sheath: PVC
- Sheath material: PVC
- Product type
Cable combo
- Cable type
K-VAN
- No. of leads
3 x
- Cross section (each core)
1 mm²
- Cross section
3 x 1 mm²
- Cable features
Flexible
- Outside Ø
12.7 mm
- Factory colour
Black
- Content
100 m
- Bend radius (no. of ODs for fixed installation)
12
- Halogen-free
No
- Manufacturer part #
851231000
- Insulation material
PP
- Min. temperature range (fixed installation)
-25 °C
- Max. temperature range (fixed installation)
+70 °C
- Min. temperature range (flexible installation)
-15 °C
- Max. temperature range (flexible installation)
+70 °C
- Core layout
56 x 0.15 mm
- Type
Kombikabel K-VAN 1/2/1
Documents & Downloads
Datasheet
Datasheet 3804929 Kabeltronik 851231000 Cable combo K-VAN 3 x 1 mm² Black 100 m
User & Safety Instructions
User & Safety Instructions 3804929 Kabeltronik 851231000 Cable combo K-VAN 3 x 1 mm² Black 100 m
Description
According to the design, this cable can be used equally for mobile applications, drum operation or fixed installation.
This text is machine translated.
This text is machine translated.
