Name: Kabeltronik KATRONIC-C LiHCH Control lead 10 x 0.25 mm² Grey 421002505 100 m
Brand: Kabeltronik
SKU: 3804916

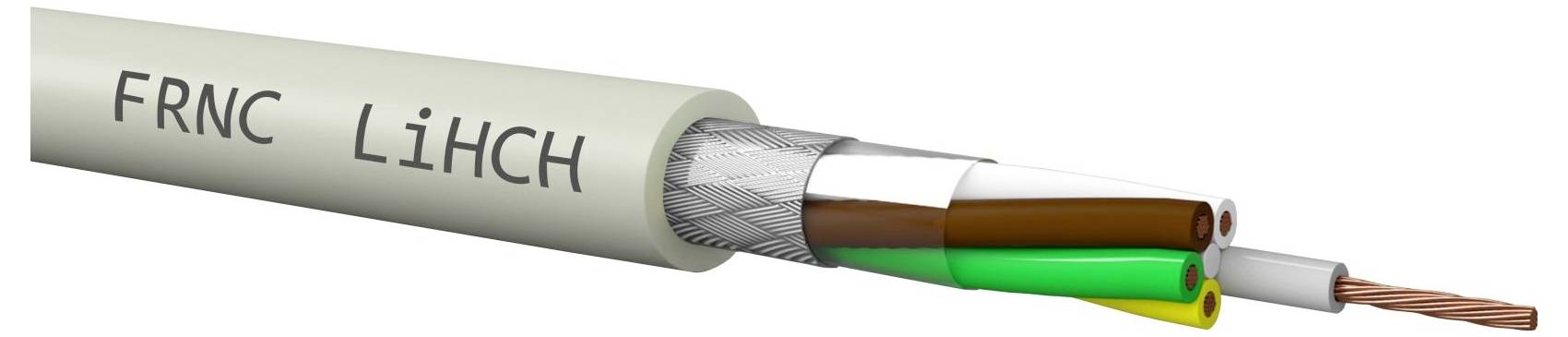

Cutaway of a flexible cable labeled FRNC LiHCH showing insulated copper conductors and shielding inside the outer jacket.

Image similar

Product type

Control lead

No. of leads

10 x

Cross section (each core)

0.25 mm²

Cable type

KATRONIC-C LiHCH

Outside Ø

7 mm

Datasheet (PDF)

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Type: Multi-conductor cables
Weight kg/km: 78.90 kg/km.
CU weight kg/km: 43.50 kg/km.
Use: Flexible control cable FRNC for use in signal, measurement, control and regulation technology as well as in IT peripherals, where safety regulations stipulate the use of halogen-free/flame resistant cables.
Wire diameter 1.1 mm
Overall shield: Copper braid, VZ.

Product type: Control lead

No. of leads: 10 x

Content: 100 m

Cross section (each core): 0.25 mm²

Cable features: Shielded
Flame-retardant

Cable type: KATRONIC-C LiHCH

Outside Ø: 7 mm

Bend radius (no. of ODs for fixed installation): 5

Bend radius (no. of ODs for flexible installation): 10

Halogen-free: Yes

Manufacturer part #: 421002505

Factory colour: Grey

Insulation material: FRNC

Insulation: FRNC

Core layout: 14 x 0.15 mm

Material (details): Cu-wire, BLK

Nominal voltage: 500 V

Certification marks: None

Test voltage: 1200 V

Cross section: 10 x 0.25 mm²

Max. temperature range (fixed installation): +90 °C

Min. temperature range (fixed installation): -40 °C

Type: KATRONIC-C LiHCH 10 x 0,25 qmm

Documents & Downloads

Datasheet

Datasheet 3804916 Kabeltronik KATRONIC-C LiHCH Control lead 10 x 0.25 mm² Grey 421002505 100 m

User & Safety Instructions

User & Safety Instructions 3804916 Kabeltronik KATRONIC-C LiHCH Control lead 10 x 0.25 mm² Grey 421002505 100 m

Description

Flexible control cable FRNC for use in signal, measurement, control and regulation technology as well as in IT periphery, where safety regulations dictate the use of halogen-free/ flame resistant cables.

This text is machine translated.
