Name: Kabeltronik KATRONIC-C LiHCH Control lead 8 x 0.14 mm² Grey 420801405 100 m
Brand: Kabeltronik
SKU: 3804928

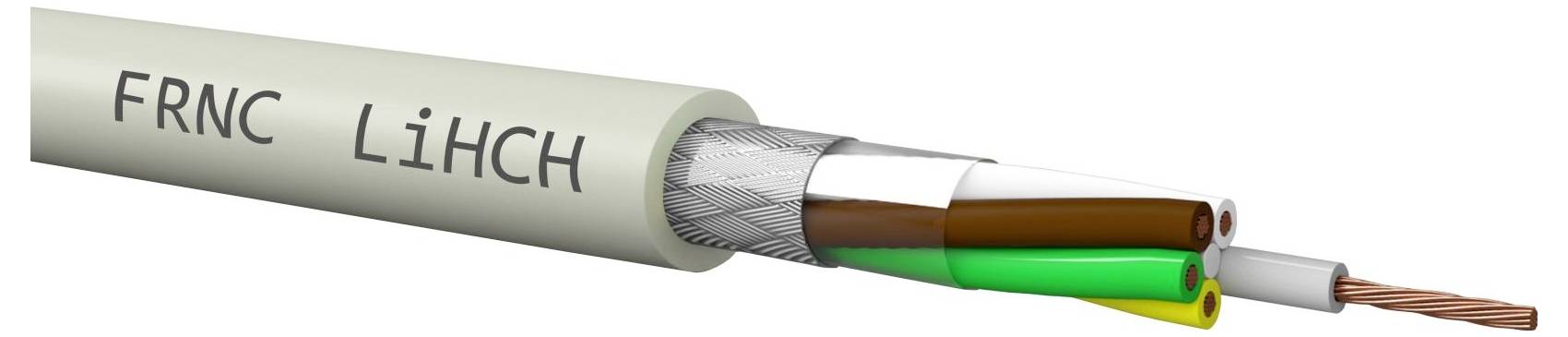

Cutaway of a FRNC LiHCH cable showing insulated internal conductors and braided shielding extending from the sheath.

Image similar

Product type

Control lead

No. of leads

8 x

Cross section (each core)

0.14 mm²

Cable type

KATRONIC-C LiHCH

Outside Ø

5.6 mm

Datasheet (PDF)

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Type: Multi-conductor cables
Weight kg/km: 51.00 kg/km.
CU weight kg/km: 24.90 kg/km.
Use: Flexible control cable FRNC for use in signal, measurement, control and regulation technology as well as in IT peripherals, where safety regulations stipulate the use of halogen-free/flame resistant cables.
Wire diameter 0.9 mm
Overall shield: Copper braid, VZ.

Product type: Control lead

No. of leads: 8 x

Content: 100 m

Cross section (each core): 0.14 mm²

Cable features: Shielded
Flame-retardant

Cable type: KATRONIC-C LiHCH

Outside Ø: 5.6 mm

Bend radius (no. of ODs for fixed installation): 5

Bend radius (no. of ODs for flexible installation): 10

Halogen-free: Yes

Manufacturer part #: 420801405

Factory colour: Grey

Insulation material: FRNC

Insulation: FRNC

Core layout: 18 x 0.10 mm

Material (details): Cu-wire, BLK

Nominal voltage: 350 V

Certification marks: None

Test voltage: 800 V

Cross section: 8 x 0.14 mm²

Max. temperature range (fixed installation): +90 °C

Min. temperature range (fixed installation): -40 °C

Type: KATRONIC-C LiHCH 8 x 0,14 qmm

Documents & Downloads

Datasheet

Datasheet 3804928 Kabeltronik KATRONIC-C LiHCH Control lead 8 x 0.14 mm² Grey 420801405 100 m

User & Safety Instructions

User & Safety Instructions 3804928 Kabeltronik KATRONIC-C LiHCH Control lead 8 x 0.14 mm² Grey 420801405 100 m

Description

Flexible control cable FRNC for use in signal, measurement, control and regulation technology as well as in IT periphery, where safety regulations dictate the use of halogen-free/ flame resistant cables.
