Name: Kabeltronik KATRONIC LiHH Control lead 2 x 0.25 mm² Grey 410202505 100 m
Brand: Kabeltronik
SKU: 3804899

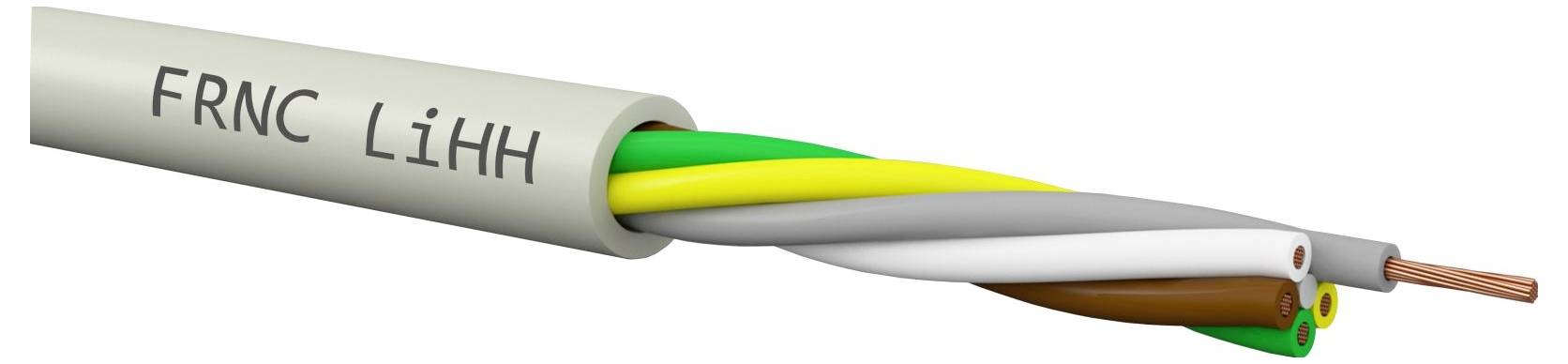

Cutaway of an electrical cable labeled FRNC LiHH, showing colored insulated wires and bare copper conductors inside the gray outer sheath.

Image similar

Product type

Control lead

No. of leads

2 x

Cross section (each core)

0.25 mm²

Cable type

KATRONIC LiHH

Outside Ø

3.6 mm

Datasheet (PDF)

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Type: Multi-conductor cables
Weight kg/km: 19.70 kg/km.
CU weight kg/km: 4.80 kg/km.
Use: Flexible control cable FRNC for use in signal, measurement, control and regulation technology as well as in IT peripherals, where safety regulations stipulate the use of halogen-free/flame resistant cables.
Wire diameter 1.1 mm

Product type: Control lead

No. of leads: 2 x

Content: 100 m

Cross section (each core): 0.25 mm²

Cable features: Unshielded
Flame-retardant

Cable type: KATRONIC LiHH

Outside Ø: 3.6 mm

Bend radius (no. of ODs for fixed installation): 5

Bend radius (no. of ODs for flexible installation): 10

Halogen-free: Yes

Manufacturer part #: 410202505

Factory colour: Grey

Insulation material: FRNC

Insulation: FRNC

Core layout: 14 x 0.15 mm

Material (details): Cu-wire, BLK

Nominal voltage: 500 V

Certification marks: None

Test voltage: 1200 V

Cross section: 2 x 0.25 mm²

Max. temperature range (fixed installation): +90 °C

Min. temperature range (fixed installation): -40 °C

Type: KATRONIC LiHH 2 x 0,25 qmm

Documents & Downloads

Datasheet

Datasheet 3804899 Kabeltronik KATRONIC LiHH Control lead 2 x 0.25 mm² Grey 410202505 100 m

User & Safety Instructions

User & Safety Instructions 3804899 Kabeltronik KATRONIC LiHH Control lead 2 x 0.25 mm² Grey 410202505 100 m

Description

Flexible control cable FRNC for use in signal, measurement, control and regulation technology as well as in IT periphery, where safety regulations dictate the use of halogen-free/ flame resistant cables.

This text is machine translated.
