Name: Kabeltronik KATRONIC LiHH Control lead 7 x 0.25 mm² Grey 410702505 100 m
Brand: Kabeltronik
SKU: 3804913

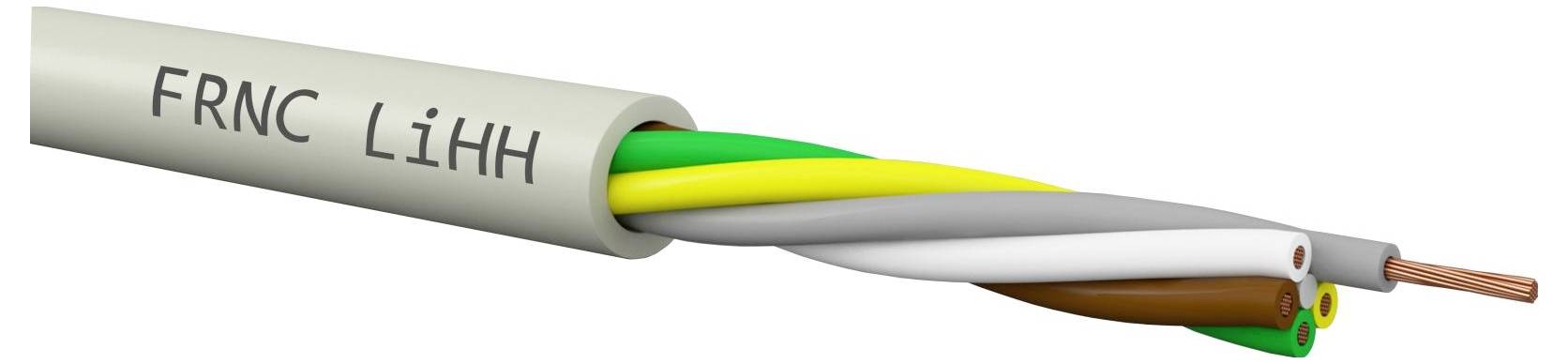

Cutaway of a gray cable labeled 'FRNC LiHH' showing multiple colored insulated wires and a copper conductor inside.

Image similar

Product type

Control lead

No. of leads

7 x

Cross section (each core)

0.25 mm²

Cable type

KATRONIC LiHH

Outside Ø

4.6 mm

Datasheet (PDF)

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Type: Multi-conductor cables
Weight kg/km: 40.50 kg/km.
CU weight kg/km: 16.80 kg/km.
Use: Flexible control cable FRNC for use in signal, measurement, control and regulation technology as well as in IT peripherals, where safety regulations stipulate the use of halogen-free/flame resistant cables.
Wire diameter 1.1 mm

Product type: Control lead

No. of leads: 7 x

Content: 100 m

Cross section (each core): 0.25 mm²

Cable features: Unshielded
Flame-retardant

Cable type: KATRONIC LiHH

Outside Ø: 4.6 mm

Bend radius (no. of ODs for fixed installation): 5

Bend radius (no. of ODs for flexible installation): 10

Halogen-free: Yes

Manufacturer part #: 410702505

Factory colour: Grey

Insulation material: FRNC

Insulation: FRNC

Core layout: 14 x 0.15 mm

Material (details): Cu-wire, BLK

Nominal voltage: 500 V

Certification marks: None

Test voltage: 1200 V

Cross section: 7 x 0.25 mm²

Max. temperature range (fixed installation): +90 °C

Min. temperature range (fixed installation): -40 °C

Type: KATRONIC LiHH 7 x 0,25 qmm

Documents & Downloads

Datasheet

Datasheet 3804913 Kabeltronik KATRONIC LiHH Control lead 7 x 0.25 mm² Grey 410702505 100 m

User & Safety Instructions

User & Safety Instructions 3804913 Kabeltronik KATRONIC LiHH Control lead 7 x 0.25 mm² Grey 410702505 100 m

Description

Flexible control cable FRNC for use in signal, measurement, control and regulation technology as well as in IT periphery, where safety regulations dictate the use of halogen-free/ flame resistant cables.

This text is machine translated.
