Name: Kabeltronik LifYY Control lead 5 x 0.14 mm² Black 240501400 100 m
Brand: Kabeltronik
SKU: 3805055

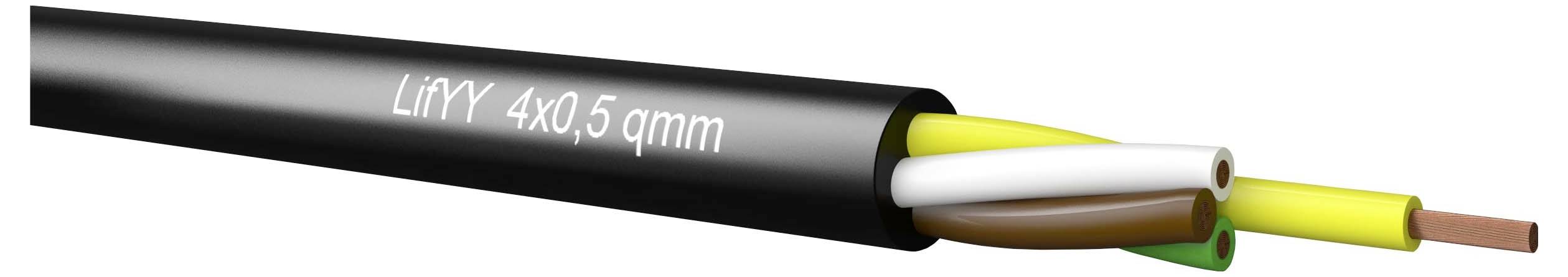

Close-up of a black electrical cable labeled 'LiYY 4x0,5 qmm' with exposed inner wires in white, brown, green, and yellow.

Image similar

Product type

Control lead

No. of leads

5 x

Cross section (each core)

0.14 mm²

Cable type

LifYY

Outside Ø

4.3 mm

Datasheet (PDF)

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Type: Multi-conductor cables
Weight kg/km: 23.80 kg/km.
CU weight kg/km: 6.80 kg/km.
Use: Highly flexible control cable for measurement, signal and control purposes. Use preferably for moving applications, without forced movement guidance and tensile stress in dry, damp and wet rooms.
Wire diameter 1.1 mm

Product type: Control lead

No. of leads: 5 x

Content: 100 m

Cross section (each core): 0.14 mm²

Cable features: Unshielded
Extremely flexible

Cable type: LifYY

Outside Ø: 4.3 mm

Bend radius (no. of ODs for fixed installation): 8

Bend radius (no. of ODs for flexible installation): 12

Halogen-free: No

Manufacturer part #: 240501400

Factory colour: Black

Insulation material: PVC

Insulation: PVC

Core layout: 72 x 0.05 mm

Material (details): Cu-wire, BLK

Nominal voltage: 500 V

Certification marks: None

Test voltage: 1200 V

Cross section: 5 x 0.14 mm²

Max. temperature range (flexible installation): +70 °C

Min. temperature range (flexible installation): -5 °C

Max. temperature range (fixed installation): +70 °C

Min. temperature range (fixed installation): -20 °C

Type: LifYY 5 x 0,14 qmm, schwarz

Documents & Downloads

Datasheet

Datasheet 3805055 Kabeltronik LifYY Control lead 5 x 0.14 mm² Black 240501400 100 m

User & Safety Instructions

User & Safety Instructions 3805055 Kabeltronik LifYY Control lead 5 x 0.14 mm² Black 240501400 100 m

Description

Highly flexible control cable for measurement, signal and control purposes. Use preferably for moving applications, without forced movement guidance and tensile stress in dry, damp and wet rooms.
