Name: Kabeltronik PURtronic-UL-Flex FRNC Control lead 4 x 0.14 mm² Black 215042600 100 m
Brand: Kabeltronik
SKU: 3805108

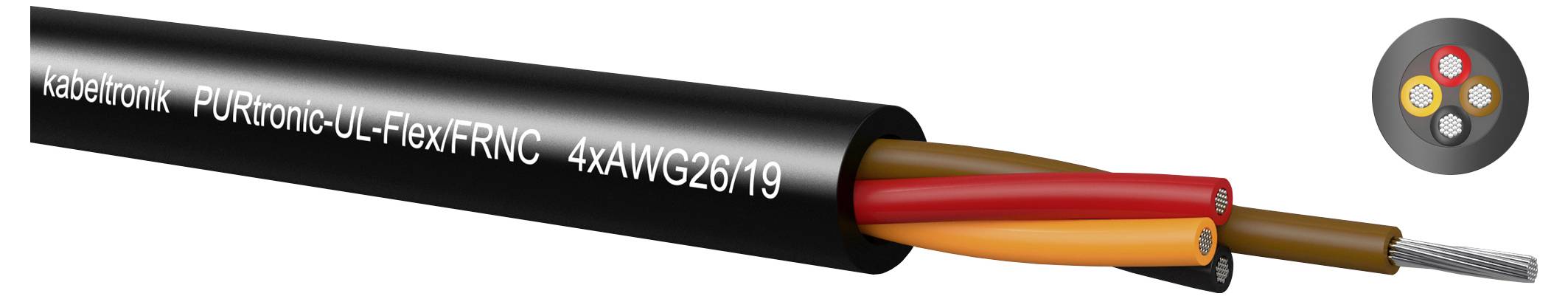

Close-up of a black cable labeled 'PURtronic-UL-Flex/FRNC 4xAWG26/19' with four exposed insulated conductors inside.

Image similar

Product type

Control lead

No. of leads

4 x

Cross section (each core)

0.14 mm²

Cable type

PURtronic-UL-Flex FRNC

Outside Ø

4.4 mm

Datasheet (PDF)

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Type: Multi-conductor cables
Weight kg/km: 21.90 kg/km.
CU weight kg/km: 5.70 kg/km.
For use in measurement, signal, control and regulation systems and at mechanically demanding indoor and outdoor applications.
Wire diameter 1.1 mm

Product type: Control lead

No. of leads: 4 x

Content: 100 m

Cross section (each core): 0.14 mm²

Cable features: Unshielded
Flame-retardant
mechanical durability
chemical-resistant

Cable type: PURtronic-UL-Flex FRNC

AWG max.: 26

Outside Ø: 4.4 mm

Bend radius (no. of ODs for fixed installation): 10

Bend radius (no. of ODs for flexible installation): 15

Halogen-free: Yes

Manufacturer part #: 215042600

Factory colour: Black

Insulation material: Modified polyphenyl ether (mPPE)

Insulation: PUR

Core layout: 19 x 0.10 mm

Material (details): Cu-strand, VZ.

Nominal voltage: 600 V

Certification marks: UL, cUL

Test voltage: 2000 V

Cross section: 4 x 0.14 mm²

Max. temperature range (flexible installation): +80 °C

Min. temperature range (flexible installation): -20 °C

Max. temperature range (fixed installation): +80 °C

Min. temperature range (fixed installation): -40 °C

Type: PURtronic-UL-Flex/FRNC 4 x AWG26/19

Documents & Downloads

Datasheet

Datasheet 3805108 Kabeltronik PURtronic-UL-Flex FRNC Control lead 4 x 0.14 mm² Black 215042600 100 m

User & Safety Instructions

User & Safety Instructions 3805108 Kabeltronik PURtronic-UL-Flex FRNC Control lead 4 x 0.14 mm² Black 215042600 100 m

Description

For use in measurement, signal, control and regulation systems and at mechanically demanding indoor and outdoor applications.
