Kabeltronik UL-LiYCY Control lead 3 x 0.09 mm² Black 096032809 100 m

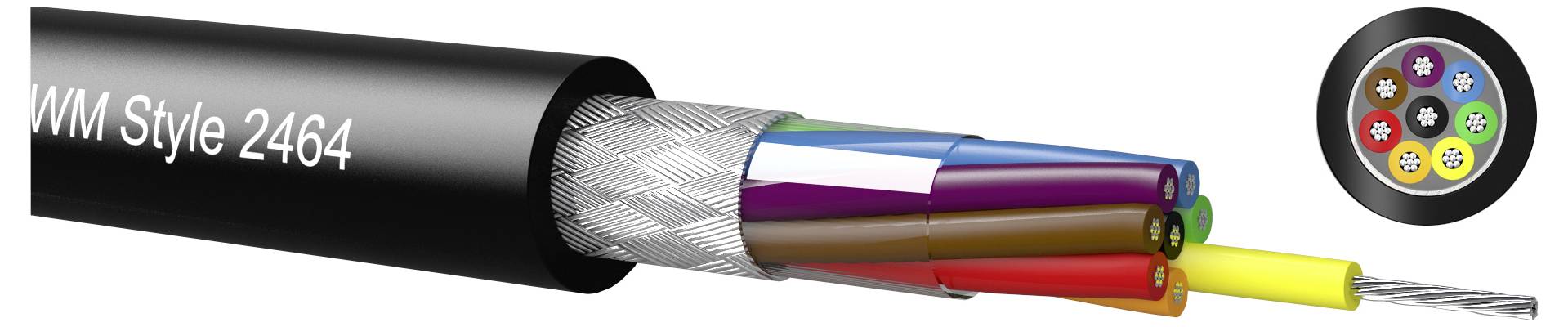

Cutaway of a multi-core cable labeled 'WWM Style 2464,' showing colored insulated wires and braided shielding inside a black outer jacket.
Image similar
Product type
Control lead
No. of leads
3 x
Cross section (each core)
0.09 mm²
Cable type
UL-LiYCY
Outside Ø
4.1 mm
Datasheet (PDF)
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

  • Type: Multi-conductor cables
  • Weight kg/km: 23.50 kg/km.
  • CU weight kg/km: 8.60 kg/km.
  • Use: For connectors in measurement, control and control systems, as well as in signal and pulse technology.
  • Wire diameter 0.9 mm
  • Overall shield: Copper braid, VZ.
Product type

Control lead

No. of leads

3 x

Content

100 m

Cross section (each core)

0.09 mm²

Cable features

Shielded

Flame-retardant

PVC coating

Cable type

UL-LiYCY

AWG max.

28

Outside Ø

4.1 mm

Bend radius (no. of ODs for fixed installation)

10

Bend radius (no. of ODs for flexible installation)

15

Halogen-free

No

Manufacturer part #

096032809

Factory colour

Black

Insulation material

PVC

Insulation

PVC

Core layout

7 x 0,127 mm

Material (details)

Cu-strand, VZ.

Nominal voltage

300 V

Certification marks

UL, cUL

Test voltage

2000 V

Cross section

3 x 0.09 mm²

Max. temperature range (flexible installation)

+105 °C

Min. temperature range (flexible installation)

-15 °C

Max. temperature range (fixed installation)

+105 °C

Min. temperature range (fixed installation)

-30 °C

Type

UL-LiYCY 3 x AWG 28

Documents & Downloads

Datasheet

Datasheet 3805123 Kabeltronik UL-LiYCY Control lead 3 x 0.09 mm² Black 096032809 100 m

User & Safety Instructions

User & Safety Instructions 3805123 Kabeltronik UL-LiYCY Control lead 3 x 0.09 mm² Black 096032809 100 m

Description

For connections in measurement and control technology, as well as signal and pulse technology.

This text is machine translated.
