Keithley 7708 7708 Module 1 pc(s)
Datasheet (PDF)
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 2,085.00 / piece)
€ 2,085.00
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details

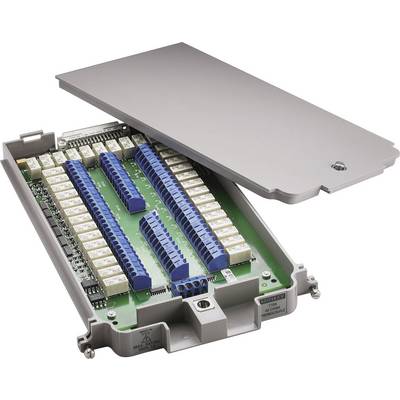

Keithley 7708 40-CH Differential Multiplexer
- 40 channels
- Up to 1 A current carrying capacity
- Max. input voltage 300 VDC
- Relay operations are stored in the onboard memory
Technical specifications
- Number of channels 40
- Max. input voltage 300 VDC (Kannal 1-40)
- Input current max. 1 A (Kannal 1-40)
- 60 W
- 125 VA maximum
- Product type
Module
- Compatible with
Keithley
- Weight
0.52 kg
- Width
50 mm
- Height
15 mm
- Depth
110 mm
- Type
7708
Documents & Downloads
Datasheet
Datasheet 1295863 Keithley 7708 7708 Module 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1295863 Keithley 7708 7708 Module 1 pc(s)
Description
The 40-channel-multiplexer module Keithley 7708 offers 40 channels with differential 2-pin multiplexer circuit or 20 channels with 4-pin multiplexer circuit, as two independent multiplexer groups can be configured. The integrated CJC sensors linearisieren thermo-elements automatically, so that the 7708 good for RTD, thermistor and thermocouple temperature applications. It is also popular for mixed signal measurement applications, the multi-point monitoring, for example, Environmental Stress Screening, require.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Power cord
- User manual
- Data sheet
- 7708
