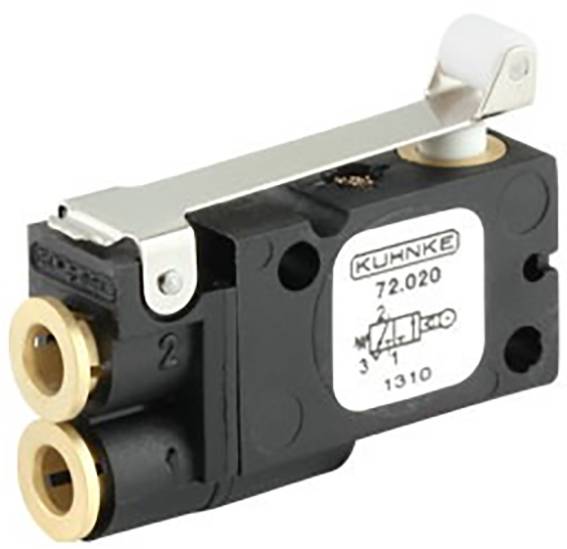

Name: Kendrion Push button valve 1.5 up to 8 bar 1 pc(s)
Brand: Kendrion
SKU: 3168402
Availability: BackOrder

Technical specifications

M5 connector
Design: 3/2-way NC seat valve
Pressure range 1,5-8 bar
Nominal width 2 mm

Product type: Pushbutton valve

Type: 3/2-way NC seat valve

Operating temperature: –10 °C (min)

Min. operating temperature: –10 °C

Manufacturer part #: 72.020

Dim: (W x D) 10 mm x 35 mm

Connection: M5 plug connector

Connection: M5

Max. operating pressure: 8 bar

Operating pressure (min.): 1.5 bar

Pressure range: 1.5 up to 8 bar

Operating medium: Compressed air

Operation type: Tappet

Sealant: Nitrile butadiene rubber

Function: 3/2-way

Enclosure material: Polyamide

Max. media temperature: +60 °C

Nominal width: 2

Nominal width: 2 mm

Width: 10 mm

Depth: 35 mm

Max. ambient temperature: +60 °C

Documents & Downloads

Datasheet

Datasheet 3168402 Kendrion Push button valve 1.5 up to 8 bar 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3168402 Kendrion Push button valve 1.5 up to 8 bar 1 pc(s)

Description

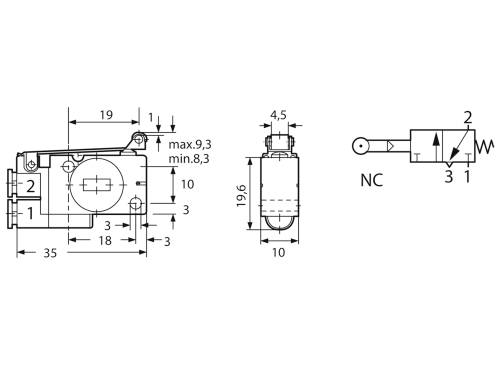

Mechanical sensing valves type Kuhnke 72.0. With low actuating force, large nominal diameter and small dimensions; pressure range: 1.5 to 8.0 bar, nominal diameter: NW 2, 2.0 mm. 3/2-way (seat valve, non-overlapping, pre-controlled), operating temperature: –10 to +60 °C, housing: Polyamide, expanding sleeve with gripping claws: Brass, O-ring and membrane: Perbunan, mounting position: Arbitrary, pressure medium connection: Integrated plug fitting for hoses PE 4 x 6 or PA 0 x 0.65, air consumption at 1, 4 bar: approx. 0.7 l/min (0 °C/1013 mbar), changeover time at 6, 0 bar: approx. 65 ms, actuation at 8, 0 bar: approx. 1.0 N, actuating stroke: approx. 0.6 mm, overlift: approx. 1.0 mm, Medium: filtered, oiled or filtered non-oiled compressed air or other gaseous media with permissible viscosity according to ISO-VG 10, method of operation: NC (closed when zero) or NO (open when zero), basic dimensions L 26/35, B 10, H 19.6 mm. Design with feeler roller type 72,020/025. Reset: Spring. Type 72,020, NC
