Kingbright KPTD-3216MGC SMD LED 1206 Green 300 mcd, 600 mcd 34 ° 20 mA, 30 mA 2.1 V, 2.5 V
Part number:
Item no:
Product type
SMD LED
Forward voltage U(F)
2.1 V
2.5 V
Forward current I(F)
20 mA
30 mA
Type
1206
Light intensity I(V)
300 mcd
600 mcd
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
3
-
€ 0.19
9
5% = € 0.01
€ 0.18
15
11% = € 0.02
€ 0.17
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 3
Total (€ 0.19 / piece)
€ 0.57
plus VAT.
14-day return policy included

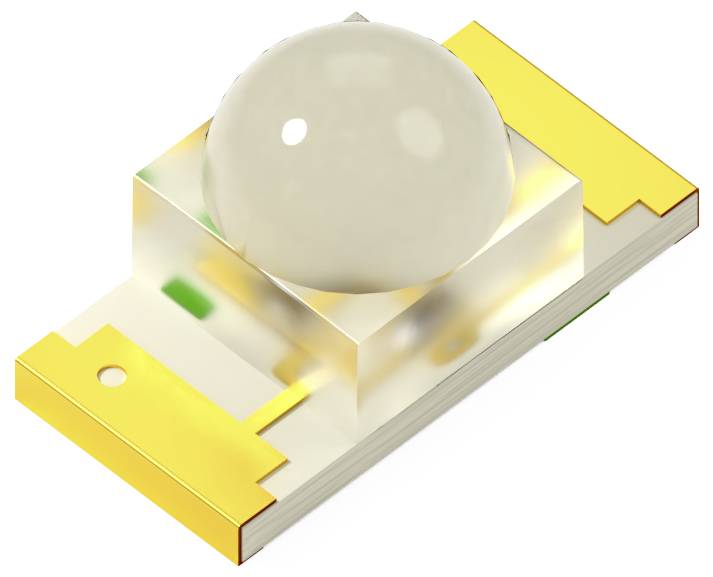

SMD LED 3.2 x 1.6 x 1.8mm green with a clear dome lens
Highlights & Details
- Integrated dome lens for focused beam angle
- High light intensity in compact SMD dimensions
- Ideal for light conductor coupling and status displays
- Automatic configuration
Our service for you
Technical specifications
- Halogen-free
- Product type
SMD LED
- Type
KPTD-3216MGC
- Factory colour
Green
- Forward voltage U(F)
2.1 V
2.5 V
- Forward current I(F)
20 mA
30 mA
- Type
1206
- Light intensity I(V)
300 mcd
600 mcd
- Wavelength
568 nm
574 nm
- Radiation angle
34°
- Type
SMD-LED with dome lens
- Dim
(L x W x H) 3.2 x 1.6 x 1.8 mm
- Length
3.2 mm
- Technology
AlGaInP
- Width
1.6 mm
- Min. temperature
-40 °C
- Height
1.8 mm
- Max. temperature
85 °C
- RoHS-compliant
Yes
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3825278 Kingbright KPTD-3216MGC SMD LED 1206 Green 300 mcd, 600 mcd 34 ° 20 mA, 30 mA 2.1 V, 2.5 V
User & Safety Instructions
User & Safety Instructions 3825278 Kingbright KPTD-3216MGC SMD LED 1206 Green 300 mcd, 600 mcd 34 ° 20 mA, 30 mA 2.1 V, 2.5 V
Description
SMD LED 3.2 x 1.6 x 1.8mm green with clear dome lens (dome lens)
This text is machine translated.
This text is machine translated.
Scope of delivery
- SMD-LED Kingbright KPTD-3216MGC
Hints
All standard LED chips require a current-limiting resistor/constant current power source.
