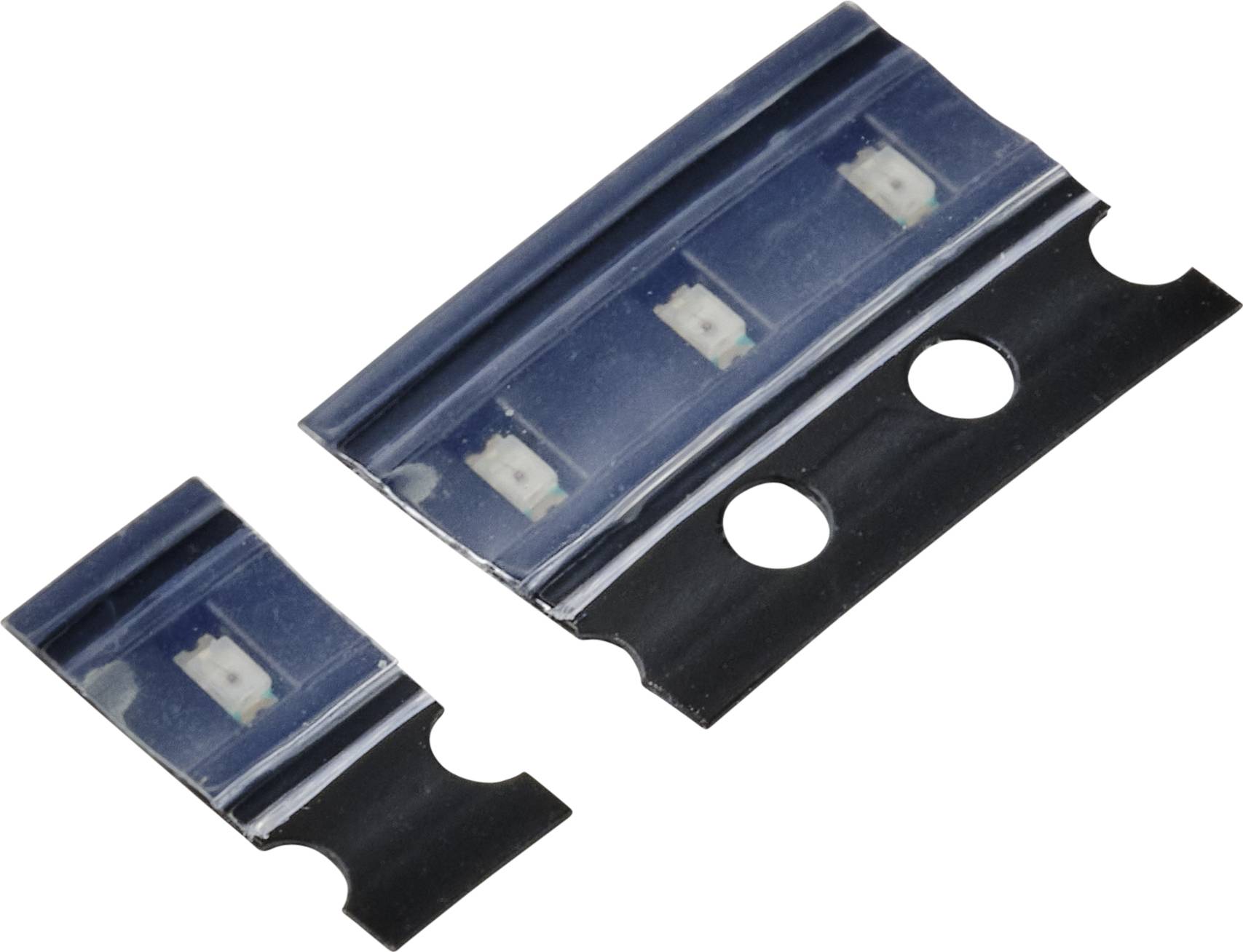

TRU COMPONENTS SMD LED Yellow-green 10 mcd 120 ° 5 mA 1.8 V
EAN:
Part number:
Item no:
Product type
SMD LED
Forward voltage U(F)
1.8 V
Forward current I(F)
5 mA
Light intensity I(V)
10 mcd
Radiation angle
120 °
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 0.08
30
-
€ 0.08
50
12% = € 0.01
€ 0.07
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Total (€ 0.08 / piece)
€ 0.80
plus VAT.
Technical specifications
- Product type
SMD LED
- Type
Chip
- Factory colour
Yellow-green
- Forward voltage U(F)
1.8 V
- Forward current I(F)
5 mA
- Light intensity I(V)
10 mcd
- Wavelength
570 nm
- Radiation angle
120°
- Type
0603
- Dim
(L x W x H) 1.6 x 0.8 x 0.6 mm
- Length
1.6 mm
- Width
0.8 mm
- Min. temperature
-40 °C
- Height
0.6 mm
- Max. temperature
85 °C
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 2377726 TRU COMPONENTS SMD LED Yellow-green 10 mcd 120 ° 5 mA 1.8 V
User & Safety Instructions
User & Safety Instructions 2377726 TRU COMPONENTS SMD LED Yellow-green 10 mcd 120 ° 5 mA 1.8 V
Description
Backlighting(switches, keys, etc)
Marker lights (steps, exit ways, etc)
Marker lights (steps, exit ways, etc)
Features
- Super high brightness of surface mount LED
- Compatible to IR reflow soldering
- Compact package outline 1.6 x 0.8 x 0.6 mm
Scope of delivery
- Main unit
Hints
Full details free to download from our comprehensive product documents library. All standard LED chips require a current-limiting resistor/constant current power source.
