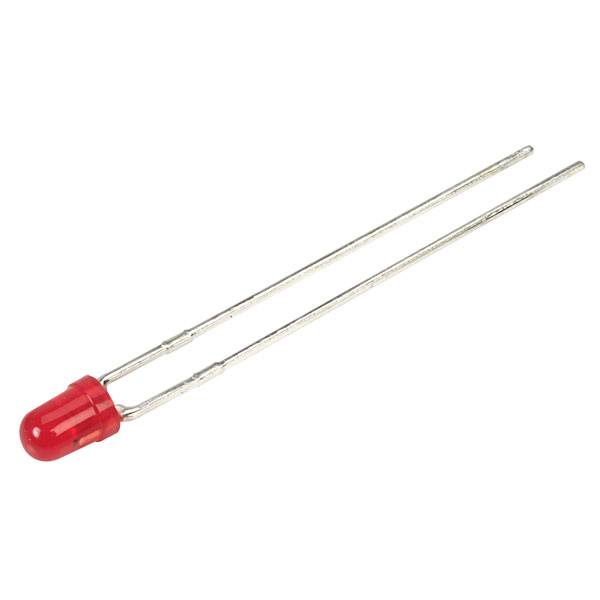

Kingbright L-7104ID-12V LED wired Red Circular 3 mm 20 mcd 40 ° 11.5 mA 14 V
EAN:
Part number:
Item no:
Product type
LED wired
Forward voltage U(F)
14 V
Forward current I(F)
11.5 mA
Casing
3 mm
Type
Radial lead
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
7
-
€ 0.45
21
11% = € 0.05
€ 0.40
35
13% = € 0.06
€ 0.39
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 7
Total (€ 0.45 / piece)
€ 3.15
plus VAT.
Technical specifications
- Product type
LED wired
- Type
L-7104ID-12V
- Factory colour
Red
- Forward voltage U(F)
14 V
- Forward current I(F)
11.5 mA
- Operating voltage
12 V
- Operating current
11.5 mA
- Casing
3 mm
- Type
Radial lead
- Light intensity I(V)
20 mcd
- Wavelength
625 nm
- Radiation angle
40°
- Type (LEDs)
Diffused
Tinted
- LED features
LED 3 mm
with diffusor
- Lens type
Circular
- Dim
(Ø) 3 mm
- Min. temperature
-40 °C
- Max. temperature
+70 °C
- (Ø)
3 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2888760 Kingbright L-7104ID-12V LED wired Red Circular 3 mm 20 mcd 40 ° 11.5 mA 14 V
User & Safety Instructions
User & Safety Instructions 2888760 Kingbright L-7104ID-12V LED wired Red Circular 3 mm 20 mcd 40 ° 11.5 mA 14 V
Description
Features
- High intensity
- Housed in diffused coloured package
- Cathode identified by shorter lead
- Low power consumption
- Long life - solid state reliability
- General purpose leads
- Kingbright L-7104 series (formerly L-934V)
- This text is machine translated.
Hints
All standard LED chips require a current-limiting resistor/constant current power source.
