Kingbright L-934GD-TNR2.54 LED wired Green Circular 3 mm 25 mcd 40 ° 20 mA 2.2 V
Product type
LED wired
Forward voltage U(F)
2.2 V
Forward current I(F)
20 mA
Casing
3 mm
Light intensity I(V)
25 mcd
Datasheet (PDF)
Part number:
Item no:
Number
Minimum order quantity: 5
Total (€ 0.26 / piece)
€ 0.26
incl. VAT
14-day return policy included
Highlights & Details

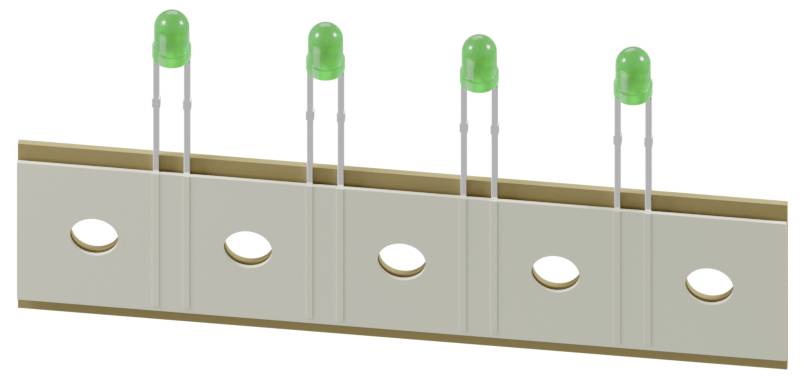

3 mm LED green taped
- Classic 3 mm (T-1) LED in green design
- Pre-treated and packed in belt (Taping) for the automated THT assembly
- High reliability at extremely low power consumption
Technical specifications
- Grid dimension of belt 2.54 mm
- Max. Power loss 62.5 mW
- Soldering temperature 260 °C for 3–5 seconds
- Product type
LED wired
- Type
L-934GD-TNR2.54
- Factory colour
Green
- Forward voltage U(F)
2.2 V
- Forward current I(F)
20 mA
- Operating voltage
2.2 V
- Operating current
20 mA
- Casing
3 mm
- Case type
Standard 3 mm round (T-1)
- Light intensity I(V)
25 mcd
- Wavelength
565 nm
- Radiation angle
40°
- Type (LEDs)
Diffused
- LED features
LED 3 mm
- Technology
GaP
- Lens type
Circular
- Dim
(Ø x H) 3 mm x 4.6 mm
- Min. temperature
-40 °C
- Max. temperature
85 °C
- Height
4.6 mm
- (Ø)
3 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3825285 Kingbright L-934GD-TNR2.54 LED wired Green Circular 3 mm 25 mcd 40 ° 20 mA 2.2 V
User & Safety Instructions
User & Safety Instructions 3825285 Kingbright L-934GD-TNR2.54 LED wired Green Circular 3 mm 25 mcd 40 ° 20 mA 2.2 V
Description
3 mm LED green with green diffuser round lens for signaling strapped 20mm on roll
This text is machine translated.
This text is machine translated.
Scope of delivery
- Kingbright L-934GD-TNR2.54 LED component
Hints
All standard LED chips require a current-limiting resistor/constant current power source.
