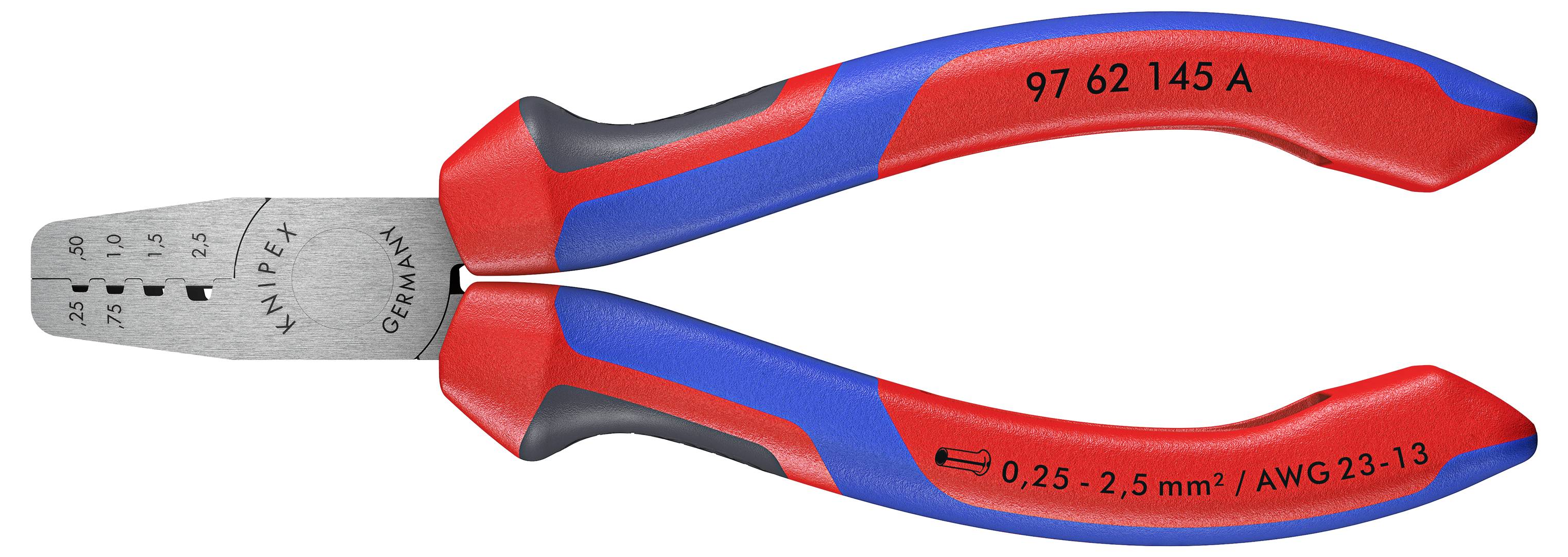

Knipex 97 62 145 A Crimper Ferrules 0.25 up to 2.5 mm²
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Crimping tool for cable end sleeves
Technical specifications
- Number of cavities: 6
- Manufacturer part #
97 62 145 A
- Range of uses
Ferrules
- Crimp area
0.25 up to 2.5 mm²
- Crimp area AWG
13 up to 23 awg
- Crimp area (min.)
0.25 mm²
- Crimp area (max.)
2.5 mm²
- Crimp area AWG (min.)
23 awg
- Crimp area AWG (max.)
13 awg
- Length
145 mm
- Material
Vanadium electric furnace steel
- Material properties
polishing
tempered
- Width
55 mm
- Height
20 mm
- Weight
170 g
- Type
Grips with multi-component covers
- Suitable for
Wire-end sleeves
- Type
97 62 145 A
- Product type
Crimper
Variants(All information is without VAT, plus shipping costs)
Knipex 97 62 145 A Crimper Ferrules 0.25 up to 2.5 mm²
This article
Minimum order quantity: 1
Multiple: 1
€ 22.68*
Knipex 97 61 145 A Crimper Ferrules 0.25 up to 2.5 mm²
Minimum order quantity: 1
Multiple: 1
€ 20.16*
Knipex 97 61 145 F Crimper Ferrules 0.25 up to 2.5 mm²
Minimum order quantity: 1
Multiple: 1
€ 30.24*
Knipex 97 68 145 A Crimper Ferrules 0.25 up to 2.5 mm²
Minimum order quantity: 1
Multiple: 1
€ 24.36*
Documents & Downloads
Datasheet
Datasheet 822463 Knipex 97 62 145 A Crimper Ferrules 0.25 up to 2.5 mm²
User & Safety Instructions
User & Safety Instructions 822463 Knipex 97 62 145 A Crimper Ferrules 0.25 up to 2.5 mm²
Description
For crimping of cable end sleeves DIN 46228 part 1 + 4 within the range of 0.25 to 2.5 mm ² Pressing operation in characterised trapezoidal profile for secure connection of cover and conductor. Vanadium electrical steel, forged, oil-hardened.
This text is machine translated.
This text is machine translated.
Features
- For crimping of cable end sleeves DIN 46228 part 1 + 4 within the range of 0.25 to 2.5 mm ²
- Pressing operation in characterised trapezoidal profile for secure connection of cover and conductor.
