Knipex 97 81 180 Crimper Ferrules 0.5 up to 6 mm²
EAN:
Part number:
Item no:
Highlights & Details
Crimping pliers for wire-end sleeves with front entry
- For crimping of cable end sleeves DIN 46228 part 1 + 4 within the range 2.5 to 6 mm²
- Beneficial can be used for working in inaccessible places, e.g. in narrow and deep control cabinets
- Special tool steel, forged, oil-hardened.
Technical specifications
- AWG 20 - 10
- Number of cavities: 1 pcs.
- Manufacturer part #
97 81 180
- Range of uses
Ferrules
- Crimp area
0.5 up to 6 mm²
- Crimp area AWG
10 up to 20 awg
- Crimp area (min.)
0.5 mm²
- Crimp area (max.)
6 mm²
- Crimp area AWG (min.)
20 awg
- Crimp area AWG (max.)
10 awg
- Length
180 mm
- Material
Tool steel
- Material properties
polishing
tempered
- Width
50 mm
- Height
14 mm
- Weight
227 g
- Suitable for
Ferrules
- Type
97 81 180
- Product type
Crimper
Variants(All information is without VAT, plus shipping costs)
Range of uses
Crimp area (max.)
Crimp area (min.)
Ferrules
6 mm²
0.5 mm²
Minimum order quantity: 1
Multiple: 1
€ 38.65*
Knipex 97 54 24 Crimper D-Sub plugs 0.03 up to 0.56 mm²
D-Sub plugs
0.56 mm²
0.03 mm²
Minimum order quantity: 1
Multiple: 1
€ 289.92*

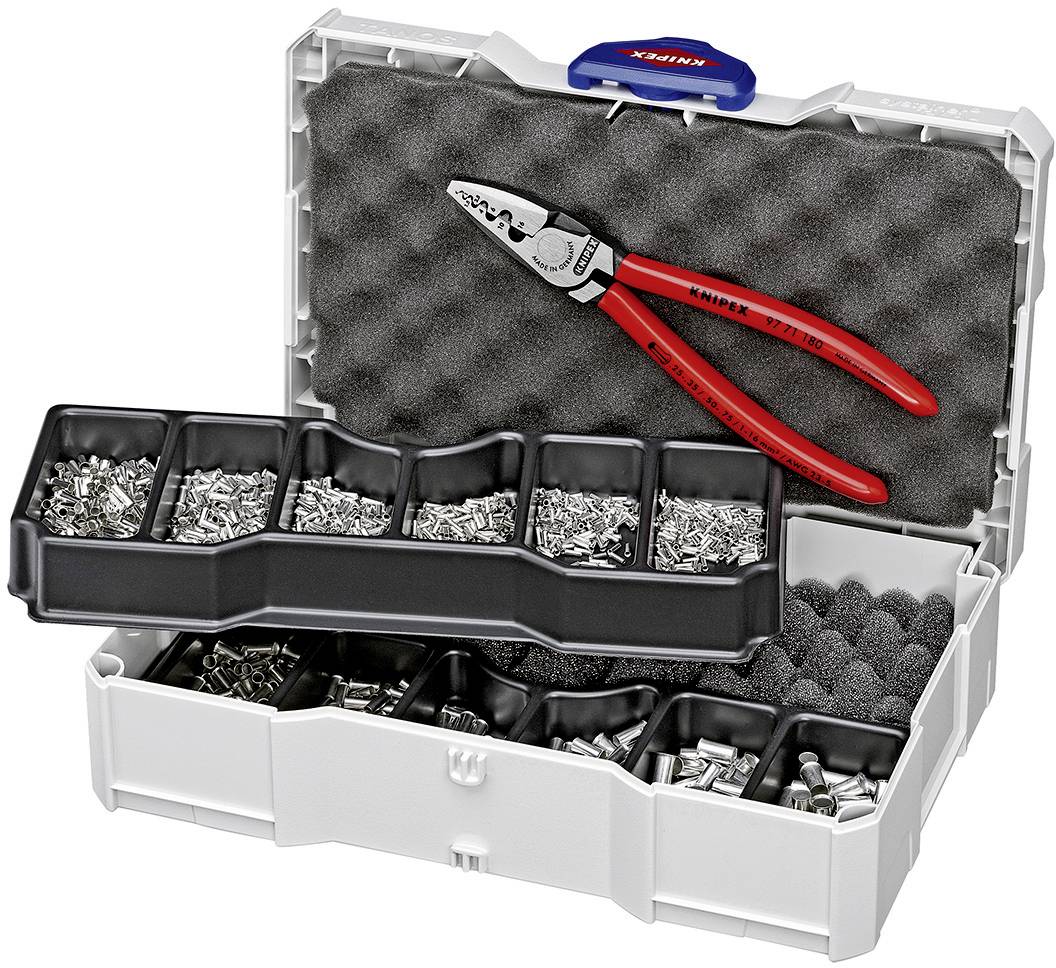

Knipex 97 90 05 Crimper Ferrules 0.25 up to 16 mm² Incl. Tanos Mini-systainer, Incl. ferrule set
Ferrules
16 mm²
0.25 mm²
Minimum order quantity: 1
Multiple: 1
€ 100.83*
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 822467 Knipex 97 81 180 Crimper Ferrules 0.5 up to 6 mm²
Description
For crimping of cable end sleeves DIN 46228 part 1 + 4 within the range 0.5 to 6 mm². Beneficial can be used for working in inaccessible places, e.g. in narrow and deep switch cabinets. Special tool steel, forged, oil-hardened.
This text is machine translated.
This text is machine translated.
Features
- Beneficial can be used for working in inaccessible places, e.g. in narrow and deep control cabinets
- For crimping of wire end sleeves DIN 46228 part 1 + 4 within the range 0.5 to 6.0 mm²
- Special tool steel, forged, oil-hardened, polished head, plastic-coated handles
- This text is machine translated.
