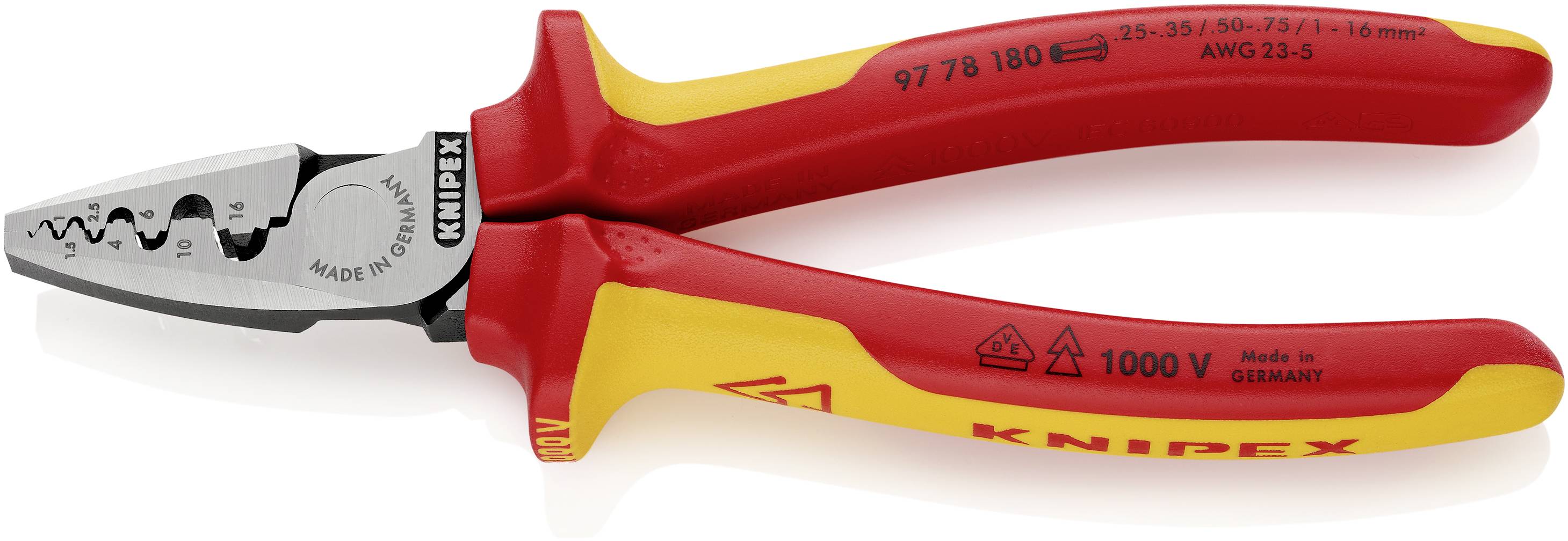

Knipex 97 78 180 T Crimper Ferrules 0.25 up to 16 mm²
EAN:
Part number:
Item no:
Highlights & Details
Crimping pliers for wire-end sleeves with eyelet
- Polished head
- insulated grips with multi-component covers
- VDE-tested
- with integrated, insulated mounting eyelet for attaching a fall protection
Technical specifications
- Number of cavities: 3
- Manufacturer part #
97 78 180 T
- Range of uses
Ferrules
- Crimp area
0.25 up to 16 mm²
- Crimp area (min.)
0.25 mm²
- Crimp area (max.)
16 mm²
- Length
180 mm
- Material
Steel
- Material properties
polishing
- Width
54 mm
- Weight
254 g
- Product type
Crimper
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1613909 Knipex 97 78 180 T Crimper Ferrules 0.25 up to 16 mm²
Description
Light-weight and slim design. Can also be used as VDE-version. Easy crimping through optimized transmission. Pliers with integrated, insulated mounting eyelet for attaching a fall protection for crimping of wire end sleeves DIN 46228 part 1 + 4 within the range of 0.25 to 16 mm². Improved translation for 30% easier crimping. Light-weight and slim design. Pressing in characterised troughed roof profile for secure joint of cover and conductor 9 especially deep profiles with conical side surfaces. Special tool steel, forged, oil-hardened.
This text is machine translated.
This text is machine translated.
Features
- For crimping of cable end sleeves DIN 46228 part 1 + 4 within the range of 0.25 to 16 mm²
- Improved translation for 30% easier crimping
- light and slim design
- Pressing in characterised troughed roof profile for secure connection of cover and conductor
- 9 especially deep profiles with conical side surfaces
- Special tool steel, forged, oil-hardened.
