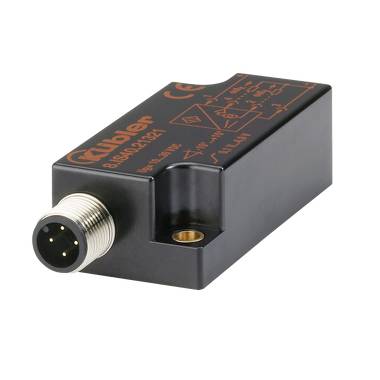

Kübler Group Clinometer IS40 8.IS40.21121 Reading range: -10 - +10 ° Analogue amperage M12 (5-pin)
EAN:
Part number:
Item no:
Product type
Clinometer
Max. operating voltage
30 V DC
Reading range (max.)
+10 °
Connector
M12 (5-pin)
IP rating
IP67
Datasheet (PDF)
Number
Total (€ 281.51 / piece)
€ 281.51
plus VAT.
Only 1 Piece(s) available
Highlights & Details
Kübler Group Clinometer IS40 8.IS40.21121 Reading range: -10 - +10 ° Analogue amperage M12 (5-pin)
- 2 Inclination directions
- Zero-point adjustment
Technical specifications
- Product type
Clinometer
- Type
IS40
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Operating current
20 mA
- Reading range (min.)
-10°
- Reading range (max.)
+10°
- Reading range
-10 - +10 °
- No. of axles
2
- Output signal (min.)
4 mA
- Output signal (max.)
20 mA
- Accuracy ±
0.1 %
- Connector
M12 (5-pin)
- Interfaces
Analogue amperage
- Min. temperature
-30 °C
- Max. temperature
+70 °C
IP67
- Length
60 mm
- Width
30 mm
- Height
20 mm
- Content
1 pc(s)
- Type
8.IS40.21121
- Connection
M12 plug connector
- Output signal
4 - 20 mA
- Temperature range
-30 - +70 °C
- Reading range
± 10°
- Operating voltage
10 - 30 V DC
Documents & Downloads
Datasheet
Datasheet 184912 Kübler Group Clinometer IS40 8.IS40.21121 Reading range: -10 - +10 ° Analogue amperage M12 (5-pin)
User & Safety Instructions
User & Safety Instructions 184912 Kübler Group Clinometer IS40 8.IS40.21121 Reading range: -10 - +10 ° Analogue amperage M12 (5-pin)
Conformity certificate
Conformity certificate 184912 Kübler Group Clinometer IS40 8.IS40.21121 Reading range: -10 - +10 ° Analogue amperage M12 (5-pin)
Description
Kübler Inclination sensor for measurement of two-dimensional inclinations with zero point adjustment. The compact and robust structure, resistance to shocks, a high protective casing as well as the wide temperature range are the characteristics This sensor is even suitable for rough industrial applications. It is in vehicle technology, solar systems, commercial vehicles or crane and lifting technology.
