Kyoritsu KEW 5050 KEW 5050 IOR leakage current data logger (4 channel) 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 2,685.00 / piece)
€ 2,685.00
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details

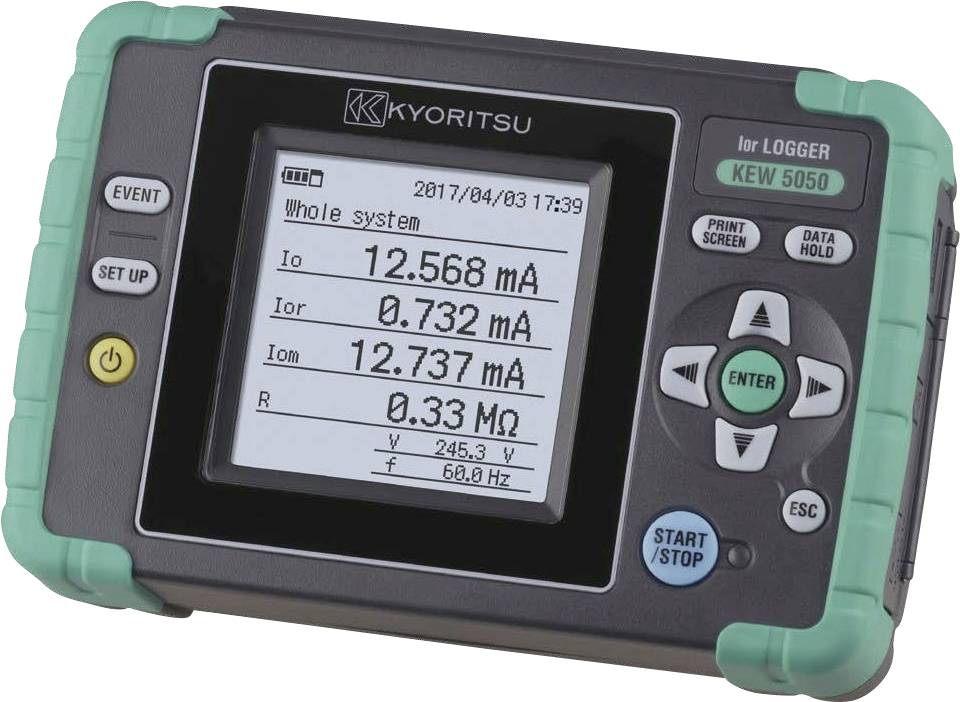

Kyoritsu KEW 5050 IOR data logger
- True RMS 1000 V
- USB
- Backlight
- External power supply AC100 - 240V (50/60Hz) 7VAmax
- Digital output
- Print Screen
- Data hold function
- 0.2% basic accuracy
- Current range 10/100/1000mA/10A/AUTO
- Phase angle 0° to +-180°
- Frequency 40 - 70 Hz
- SD card (2 GB)
- Simultaneous measurements and logging up to 4 channels
- Supports single phase 2 & 3 conductors, 3-phase 3 & 4 conductors
- Leakage/load current measurements
- 200ms interval for leakage current measurement, magnetic holder
Technical specifications
- Channels: 4 channels for current (leakage current or load current) and 1 channel for voltage
- Storage capacity: Up to 2,000,000 sets (on SD card or internal)
- Product type
IOR leakage current data logger (4 channel)
- Type
Mobile data logger with magnetic holder and LCD display
- Weight
900
- Reading category
CAT III 600 V
CAT IV 300 V
- Width
165 mm
- Height
115 mm
- Depth
57 mm
- Type
KEW 5050
Manufacturer's standards (no certificate)
Documents & Downloads
Datasheet
Datasheet 3642383 Kyoritsu KEW 5050 KEW 5050 IOR leakage current data logger (4 channel) 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3642383 Kyoritsu KEW 5050 KEW 5050 IOR leakage current data logger (4 channel) 1 pc(s)
Description
Kyoritsu IOR data logger.
This text is machine translated.
This text is machine translated.
Scope of delivery
- KEW 5050 logger
- USB cable
- Software (KEW Windows)
- Mains adapter
- Carrying case
- User manual
