Name: LAPP 0028678/1000 Data transfer cable UNITRONIC® FD P plus A 12 x 0.14 mm² Grey 1000 m
Brand: LAPP
SKU: 3351341

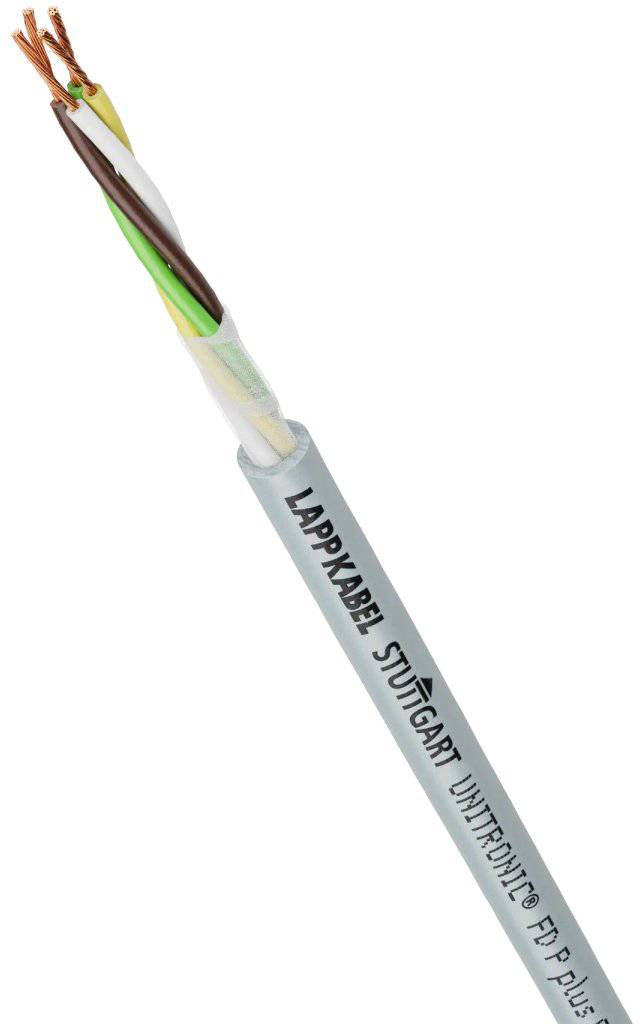

Grey cable from 'Lapp Kabel Stuttgart', partially stripped, showing internal conductors in various colours.

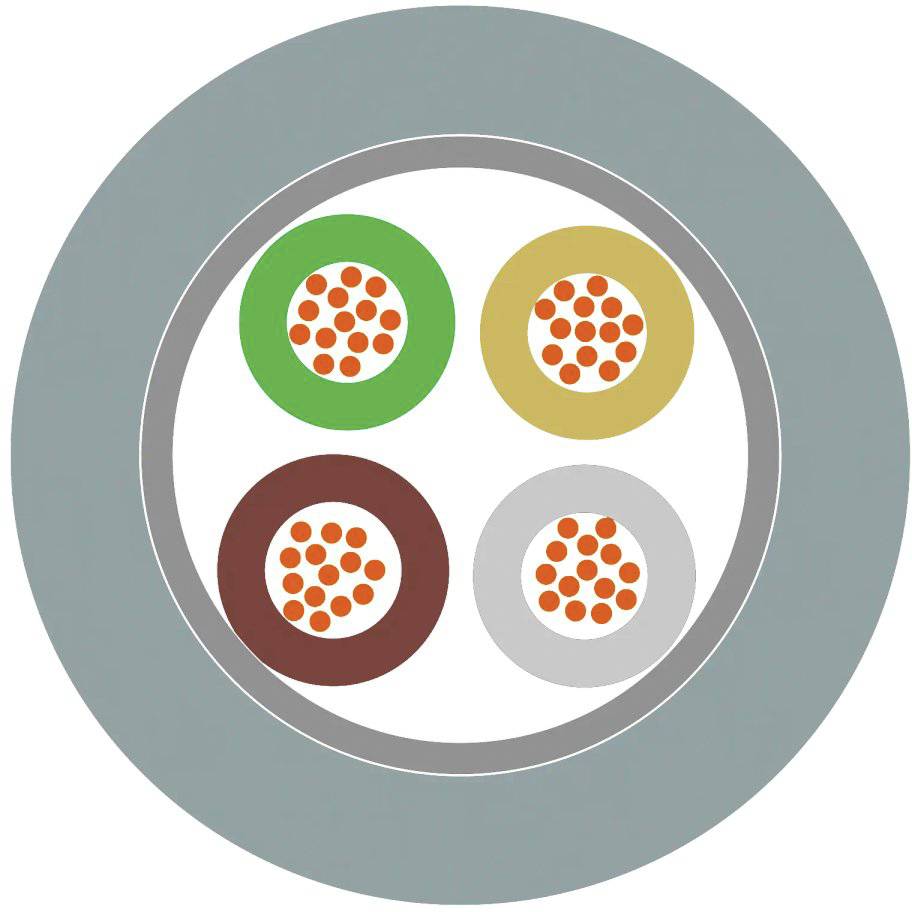

Four colourful cables in a cross-section, surrounded by a grey ring. Each cable contains orange dots.

1/2

Image similar

Product type

Data transfer cable

No. of leads

12 x

Cross section (each core)

0.14 mm²

Cable features

Suitable for drag chains

Cable type

UNITRONIC® FD P plus A

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Data transfer cable

Cable type: UNITRONIC® FD P plus A

No. of leads: 12 x

Cross section (each core): 0.14 mm²

Cross section: 12 x 0.14 mm²

Cable features: Suitable for drag chains

Outside Ø: 5 mm

Factory colour: Grey

Content: 1000 m

Bend radius (no. of ODs for fixed installation): 3

Bend radius (no. of ODs for flexible installation): 5

Sold per metre: Yes

Halogen-free: No

Manufacturer part #: 0028678/1000

Insulation material: Polyurethane

Min. temperature range (flexible installation): -40 °C

Max. temperature range (flexible installation): 80 °C

Min. temperature range (fixed installation): -40 °C

Max. temperature range (fixed installation): 80 °C

Max. length sold by the metre: 1000 m

Type: UNITRONIC® FD P plus A 12x0,14

: TRUE

: 0.14 mm²

: Polyolefin

: Colour

: Grey

: Copper

: Polyurethane (PUR)

: -40-80 °C

: 12

: FALSE

: FALSE

: 5.9 mm

: FALSE

: FALSE

: FALSE

: Bare

: Other

: 29.5 mm

: 29.5 mm

: 17.7 mm

: Other

: Other

: Round

: FALSE

Documents & Downloads

Datasheet

Datasheet 3351341 LAPP 0028678/1000 Data transfer cable UNITRONIC® FD P plus A 12 x 0.14 mm² Grey 1000 m

User & Safety Instructions

User & Safety Instructions 3351341 LAPP 0028678/1000 Data transfer cable UNITRONIC® FD P plus A 12 x 0.14 mm² Grey 1000 m

Description

UNITRONIC® FD P plus A 12x0.14 data cable low frequency; 12x0.14; wire color code: DIN 47100; PUR; UL recognized; Drag chain

This text is machine translated.

Description

UNITRONIC® FD P plus A 12x0.14 data cable low frequency; 12x0.14; wire color code: DIN 47100; PUR; UL recognized; Drag chain

This text is machine translated.
