Name: LAPP 0028679/500 Data transfer cable UNITRONIC® FD P plus A 6 x 0.25 mm² Grey 500 m
Brand: LAPP
SKU: 3351353

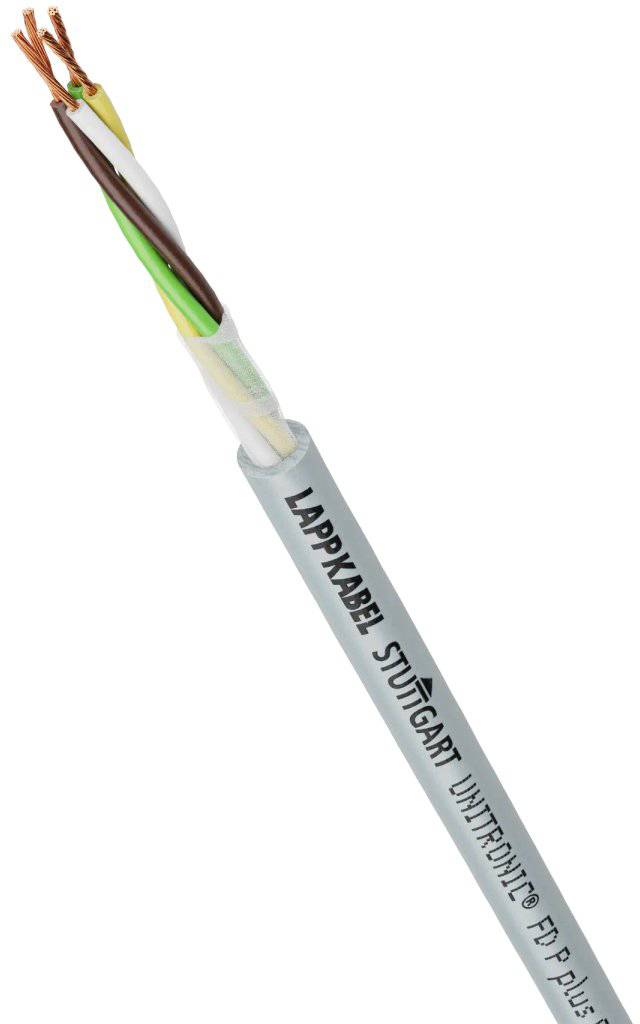

A cable with various coloured wires and the label 'LAPPKABEL STUTTGART UNITRONIC FD P plus' printed on the cable sheath.

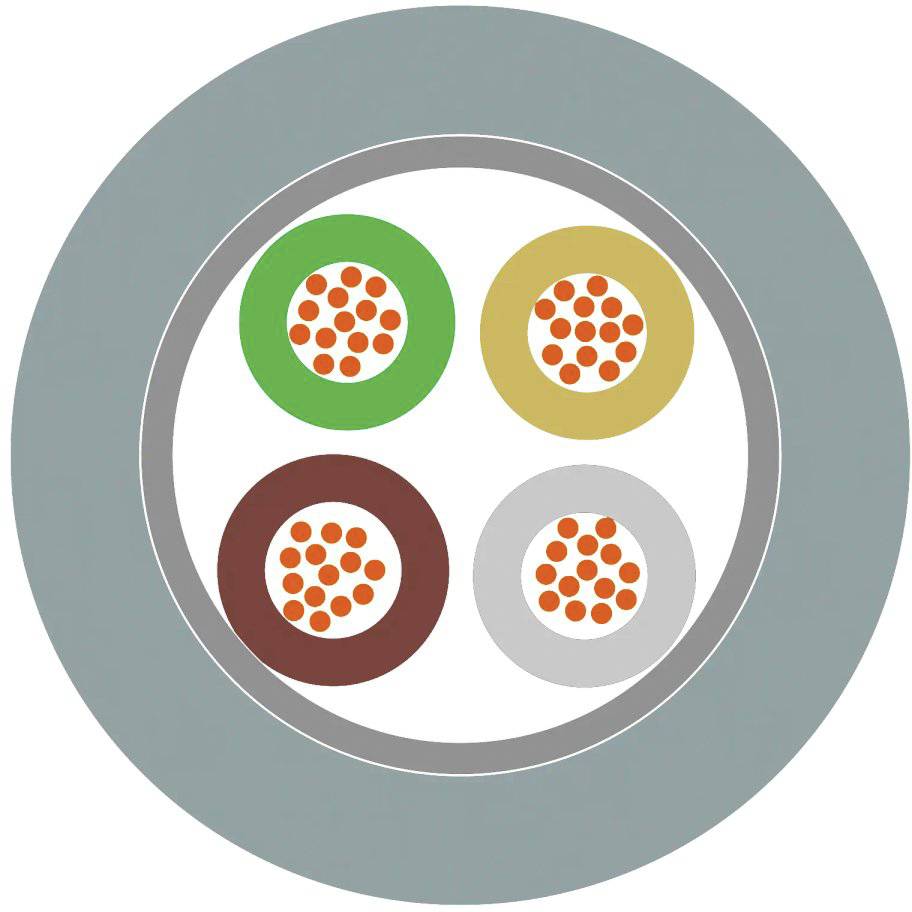

'Cross-section of a cable with four differently coloured cores, each consisting of multiple copper wires.'

1/2

Image similar

Product type

Data transfer cable

No. of leads

6 x

Cross section (each core)

0.25 mm²

Cable features

Suitable for drag chains

Cable type

UNITRONIC® FD P plus A

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Data transfer cable

Cable type: UNITRONIC® FD P plus A

No. of leads: 6 x

Cross section (each core): 0.25 mm²

Cross section: 6 x 0.25 mm²

Cable features: Suitable for drag chains

Outside Ø: 5 mm

Factory colour: Grey

Content: 500 m

Bend radius (no. of ODs for fixed installation): 3

Bend radius (no. of ODs for flexible installation): 5

Sold per metre: No

Halogen-free: No

Manufacturer part #: 0028679/500

Insulation material: Polyurethane

Min. temperature range (fixed installation): -40 °C

Max. temperature range (fixed installation): 80 °C

Max. length sold by the metre: 500 m

Type: UNITRONIC® FD P plus A 6x0,25

: TRUE

: 0.25 mm²

: Polyolefin

: Colour

: Grey

: Copper

: Polyurethane (PUR)

: -40-80 °C

: 6

: FALSE

: FALSE

: 5.4 mm

: FALSE

: FALSE

: FALSE

: Bare

: Other

: 27.0 mm

: 27.0 mm

: 16.2 mm

: Other

: Other

: Round

: FALSE

Documents & Downloads

Datasheet

Datasheet 3351353 LAPP 0028679/500 Data transfer cable UNITRONIC® FD P plus A 6 x 0.25 mm² Grey 500 m

User & Safety Instructions

User & Safety Instructions 3351353 LAPP 0028679/500 Data transfer cable UNITRONIC® FD P plus A 6 x 0.25 mm² Grey 500 m

Description

UNITRONIC® FD P plus A 6x0.25 data cable low frequency; 6x0.25; wire color code: DIN 47100; PUR; UL recognized; Drag chain

This text is machine translated.

Description

UNITRONIC® FD P plus A 6x0.25 data cable low frequency; 6x0.25; wire color code: DIN 47100; PUR; UL recognized; Drag chain
