Name: LAPP 0031386/1000 Data transfer cable UNITRONIC® FD Li2YCY (TP) A 1 x 2 x 0.25 mm² Black 1000 m
Brand: LAPP
SKU: 3351267

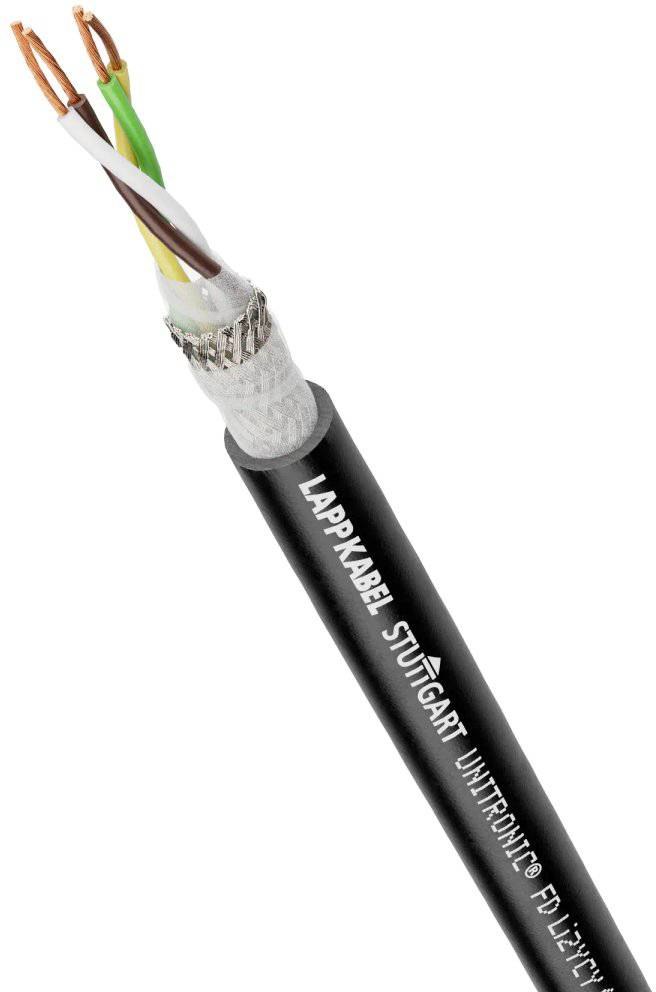

A black cable marked 'LAPPKABEL STUTTGART UNITRONIC FD 225'. The ends reveal four exposed copper wires in different colours.

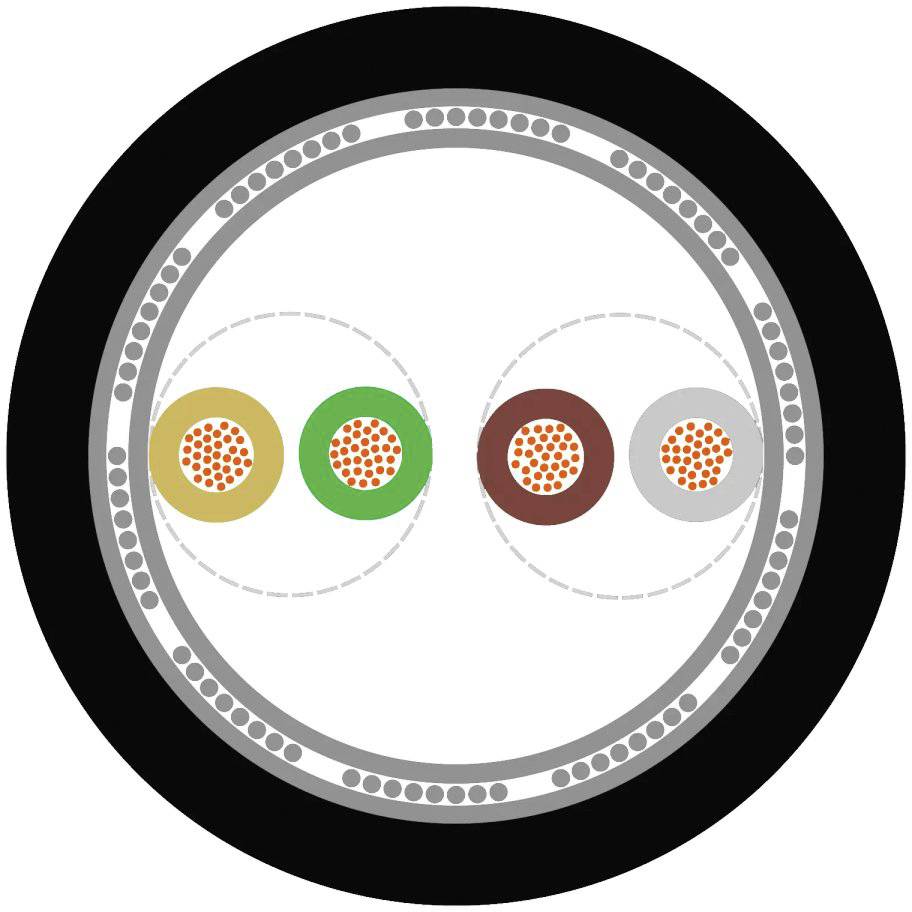

A cross-section of an underground cable shows various insulation layers and concentrically arranged conductors in different colours.

1/2

Image similar

Product type

Data transfer cable

No. of leads

2 x

Cross section (each core)

0.25 mm²

Cable features

Suitable for drag chains

Cable type

UNITRONIC® FD Li2YCY (TP) A

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Data transfer cable

Cable type: UNITRONIC® FD Li2YCY (TP) A

No. of leads: 2 x

Cross section (each core): 0.25 mm²

Twisted pair cabling (part 1): Yes (1)

Cross section: 1 x 2 x 0.25 mm²

Cable features: Suitable for drag chains

Outside Ø: 4 mm

Factory colour: Black

Content: 1000 m

Halogen-free: No

Shielded: Yes

Manufacturer part #: 0031386/1000

Insulation material: Polyvinyl chloride

Min. temperature range (fixed installation): -40 °C

Max. temperature range (fixed installation): 70 °C

Max. length sold by the metre: 1000 m

Type: UNITRONIC® FD Li2YCY (TP) A BE 1X2X0,25

: FALSE

: 0.25 mm²

: Other

: Colour

: Black

: Copper

: Polyvinyl chloride (PVC)

: -40-70 °C

: FALSE

: FALSE

: 4.7 mm

: FALSE

: Bare

: Other

: 18.8 mm

: Polyethylene (PE)

: Other

: Round

: FALSE

Documents & Downloads

Datasheet

Datasheet 3351267 LAPP 0031386/1000 Data transfer cable UNITRONIC® FD Li2YCY (TP) A 1 x 2 x 0.25 mm² Black 1000 m

User & Safety Instructions

User & Safety Instructions 3351267 LAPP 0031386/1000 Data transfer cable UNITRONIC® FD Li2YCY (TP) A 1 x 2 x 0.25 mm² Black 1000 m

Description

UNITRONIC ® FD Li2YCY (TP) A BE 1X2X0.25 Data cable low frequency; 1X2X0.25; Wire color code: DIN 47100; PVC; shielded; UL recognized; drag chain

This text is machine translated.

Description

UNITRONIC ® FD Li2YCY (TP) A BE 1X2X0.25 Data cable low frequency; 1X2X0.25; Wire color code: DIN 47100; PVC; shielded; UL recognized; drag chain
