Name: LAPP 0031391/100 Data transfer cable UNITRONIC® FD Li2YCY (TP) A 6 x 2 x 0.25 mm² Black 100 m
Brand: LAPP
SKU: 3351324

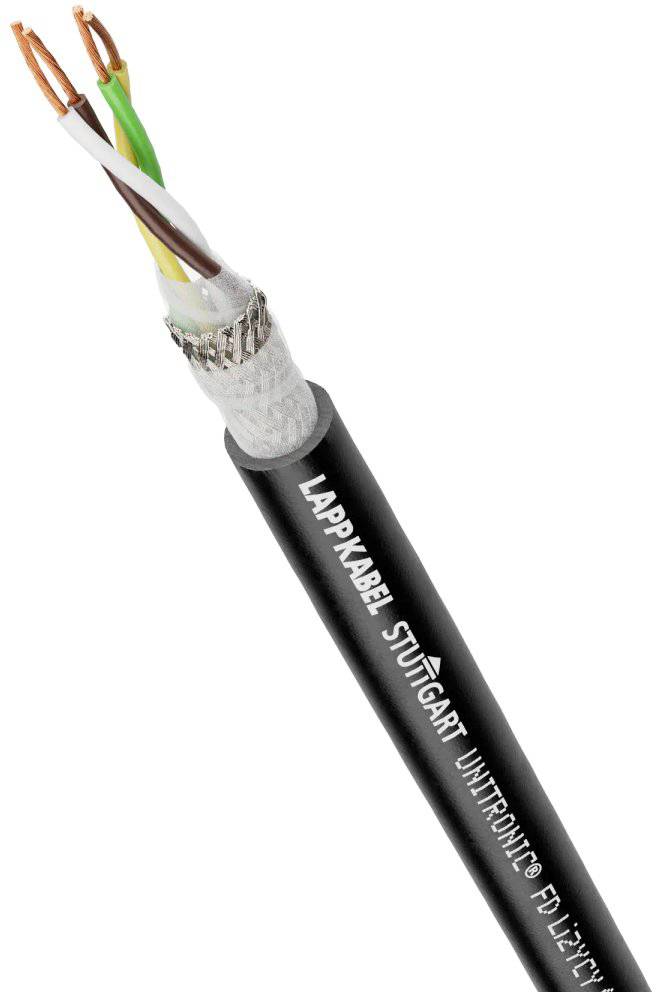

Close-up of a black cable with multiple copper wires and label reading 'LAPPKABEL STUTTGART UNITRONIC FD'.

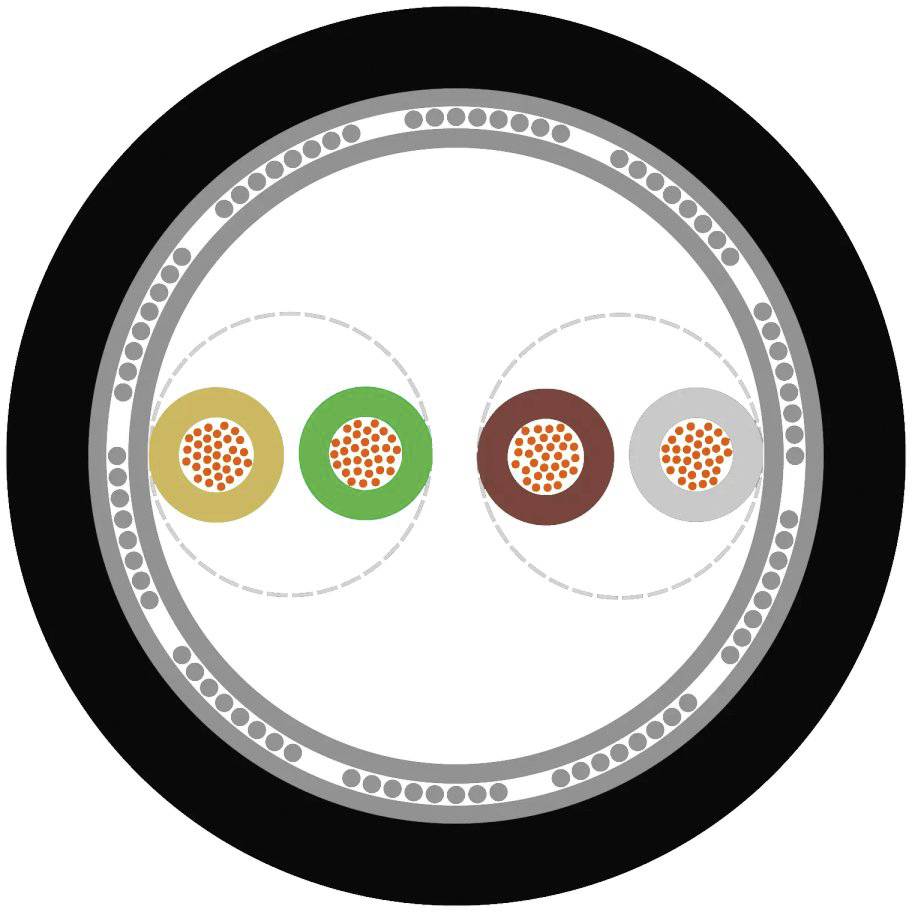

Schematic diagram of an electrical cable with four differently coloured wires (yellow, green, reddish-brown, grey) in cross-section.

1/2

Image similar

Product type

Data transfer cable

No. of leads

12 x

Cross section (each core)

0.25 mm²

Cable features

Shielded

Cable type

UNITRONIC® FD Li2YCY (TP) A

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Data transfer cable

Cable type: UNITRONIC® FD Li2YCY (TP) A

No. of leads: 12 x

Cross section (each core): 0.25 mm²

Twisted pair cabling (part 1): Yes (1)

Cross section: 6 x 2 x 0.25 mm²

Cable features: Shielded

Outside Ø: 8 mm

Factory colour: Black

Content: 100 m

Halogen-free: No

Shielded: Yes

Manufacturer part #: 0031391/100

Insulation material: Polyvinyl chloride

Min. temperature range (fixed installation): -40 °C

Max. temperature range (fixed installation): 70 °C

Max. length sold by the metre: 100 m

Type: UNITRONIC® FD Li2YCY (TP) A BE 6X2X0,25

: FALSE

: 0.25 mm²

: Other

: Colour

: Black

: Copper

: Polyvinyl chloride (PVC)

: -40-70 °C

: FALSE

: FALSE

: 8.8 mm

: FALSE

: Bare

: Other

: 35.2 mm

: Polyethylene (PE)

: Other

: Round

: FALSE

Documents & Downloads

Datasheet

Datasheet 3351324 LAPP 0031391/100 Data transfer cable UNITRONIC® FD Li2YCY (TP) A 6 x 2 x 0.25 mm² Black 100 m

User & Safety Instructions

User & Safety Instructions 3351324 LAPP 0031391/100 Data transfer cable UNITRONIC® FD Li2YCY (TP) A 6 x 2 x 0.25 mm² Black 100 m

Description

UNITRONIC® FD Li2YCY (TP) A BE 6X2X0.25 Low frequency data cable; 6X2X0.25; Wire color code: DIN 47100; PVC; shielded; UL recognized; drag chain

This text is machine translated.

Description

UNITRONIC® FD Li2YCY (TP) A BE 6X2X0.25 Low frequency data cable; 6X2X0.25; Wire color code: DIN 47100; PVC; shielded; UL recognized; drag chain

This text is machine translated.
