Name: LAPP 0031399/1000 Data transfer cable UNITRONIC® FD Li2YCY (TP) A 2 x 2 x 0.34 mm² Black 1000 m
Brand: LAPP
SKU: 3351303

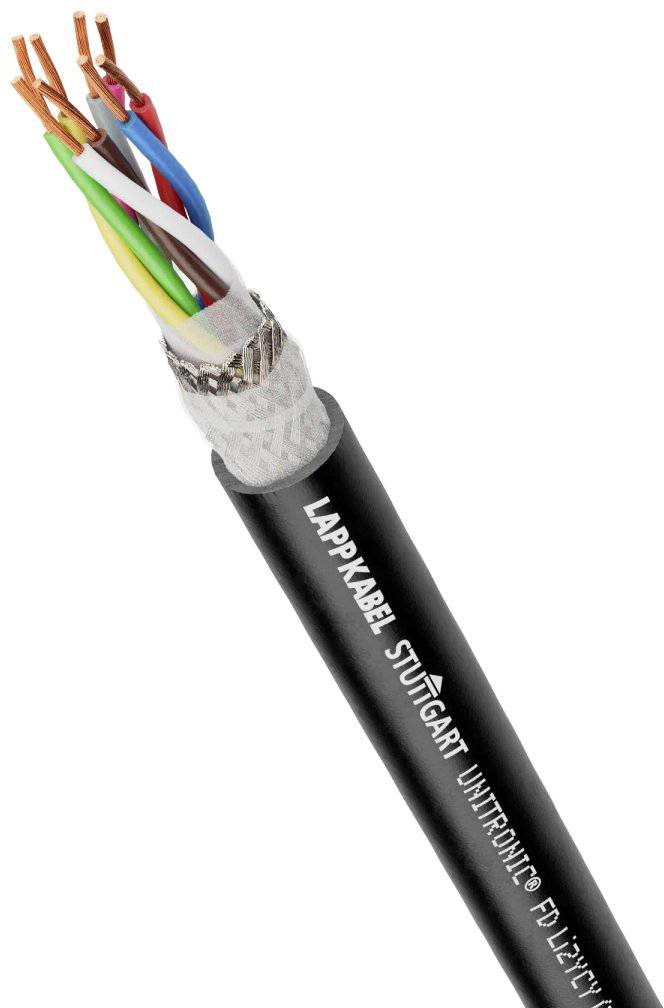

Black-sheathed cable with exposed coloured cores at one end, suitable for industrial applications.

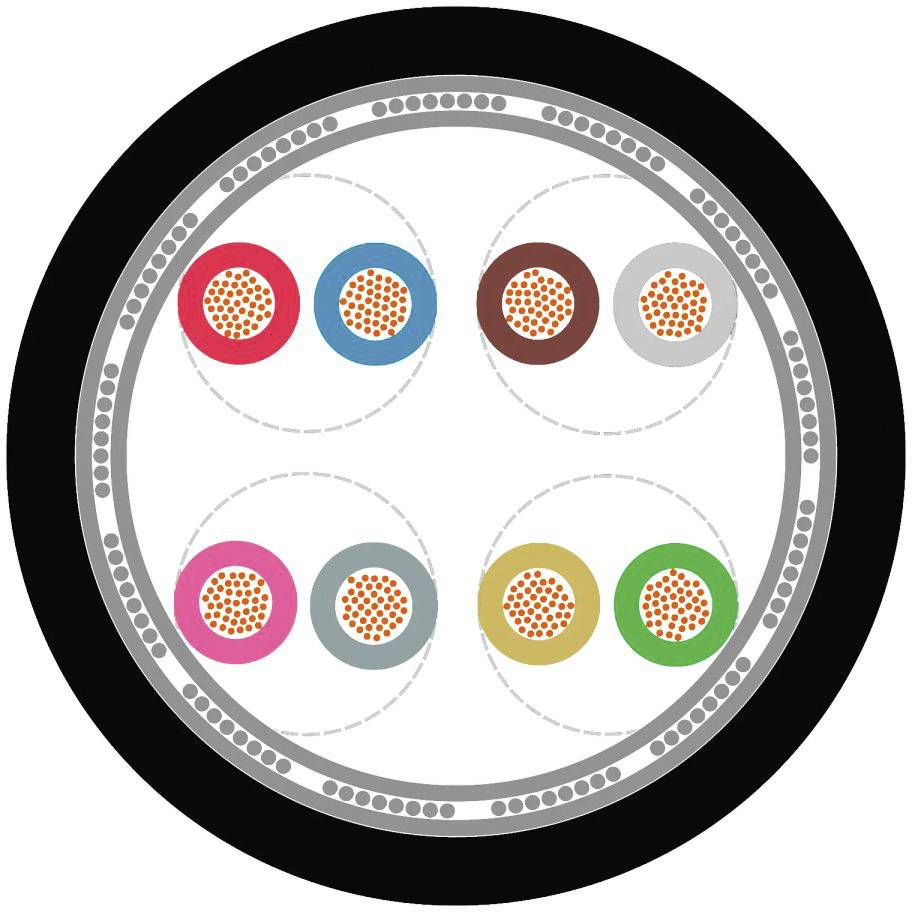

Cable cross-section with six coloured, concentrically arranged conductors within a black sheath, showing different insulation types.

1/2

Image similar

Product type

Data transfer cable

No. of leads

4 x

Cross section (each core)

0.34 mm²

Cable features

Suitable for drag chains

Cable type

UNITRONIC® FD Li2YCY (TP) A

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Data transfer cable

Cable type: UNITRONIC® FD Li2YCY (TP) A

No. of leads: 4 x

Cross section (each core): 0.34 mm²

Twisted pair cabling (part 1): Yes (1)

No. of leads (part 2): 2 x

Cross section: 2 x 2 x 0.34 mm²

Cable features: Suitable for drag chains

Outside Ø: 8 mm

Factory colour: Black

Content: 1000 m

Halogen-free: No

Shielded: Yes

Manufacturer part #: 0031399/1000

Insulation material: Polyvinyl chloride

Min. temperature range (fixed installation): -40 °C

Max. temperature range (fixed installation): 70 °C

Max. length sold by the metre: 1000 m

Type: UNITRONIC® FD Li2YCY (TP) A BE 4X2X0,34

: FALSE

: 0.34 mm²

: Other

: Colour

: Black

: Copper

: Polyvinyl chloride (PVC)

: -40-70 °C

: FALSE

: FALSE

: 8.7 mm

: FALSE

: Bare

: 34.8 mm

: Polyethylene (PE)

: Other

: Round

: FALSE

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3351303 LAPP 0031399/1000 Data transfer cable UNITRONIC® FD Li2YCY (TP) A 2 x 2 x 0.34 mm² Black 1000 m

User & Safety Instructions

User & Safety Instructions 3351303 LAPP 0031399/1000 Data transfer cable UNITRONIC® FD Li2YCY (TP) A 2 x 2 x 0.34 mm² Black 1000 m

Description

UNITRONIC® FD Li2YCY (TP) A BE 4X2X0,34 Data cable low frequency; 4X2X0,34; Wire color code: DIN 47100; PVC; shielded; UL recognized; drag chain

This text is machine translated.

Description

UNITRONIC® FD Li2YCY (TP) A BE 4X2X0,34 Data cable low frequency; 4X2X0,34; Wire color code: DIN 47100; PVC; shielded; UL recognized; drag chain

This text is machine translated.
