Name: LAPP 0031405/1000 Data transfer cable UNITRONIC® FD Li2YCY (TP) A 2 x 2 x 0.5 mm² Black 1000 m
Brand: LAPP
SKU: 3351283

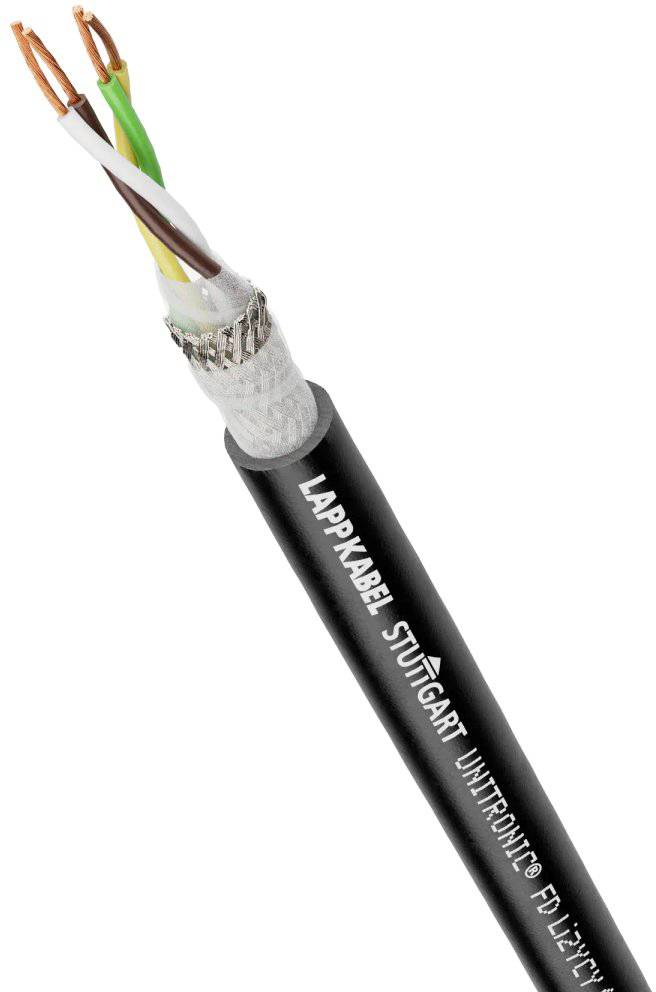

Black control cable with multiple insulated cores and metal shielding, labelled 'LAPP KABEL STUTTGART UNITRONIC'.

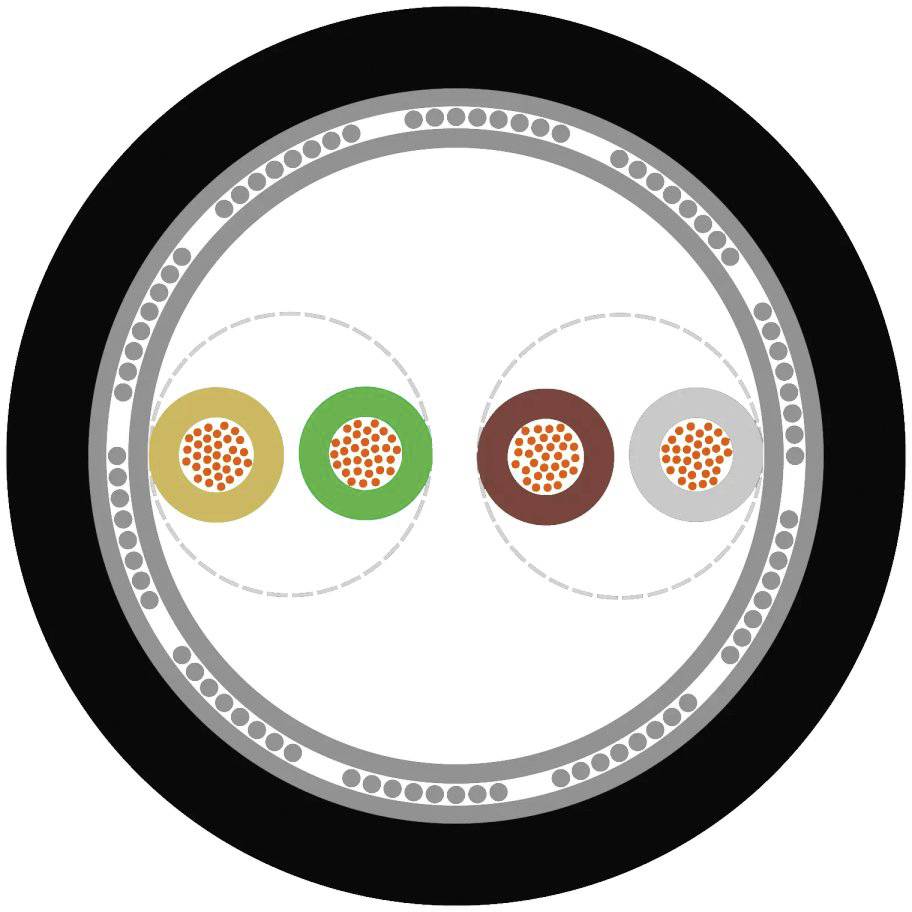

Diagram shows a schematic representation of an electrical cable with multiple conductive layers in different colours.

1/2

Image similar

Product type

Data transfer cable

No. of leads

4 x

Cross section (each core)

0.5 mm²

Cable features

Suitable for drag chains

Cable type

UNITRONIC® FD Li2YCY (TP) A

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Data transfer cable

Cable type: UNITRONIC® FD Li2YCY (TP) A

No. of leads: 4 x

Cross section (each core): 0.5 mm²

Twisted pair cabling (part 1): Yes (1)

Cross section: 2 x 2 x 0.5 mm²

Cable features: Suitable for drag chains

Outside Ø: 8 mm

Factory colour: Black

Content: 1000 m

Sold per metre: Yes

Halogen-free: No

Shielded: Yes

Manufacturer part #: 0031405/1000

Insulation material: Polyvinyl chloride

Min. temperature range (fixed installation): -40 °C

Max. temperature range (fixed installation): 70 °C

Max. length sold by the metre: 1000 m

Type: UNITRONIC® FD Li2YCY (TP) A BE 2X2X0,5

: FALSE

: 0.5 mm²

: Other

: Colour

: Black

: Copper

: Polyvinyl chloride (PVC)

: -40-70 °C

: FALSE

: FALSE

: 8.3 mm

: FALSE

: Bare

: Other

: 33.2 mm

: Polyethylene (PE)

: Other

: Round

: FALSE

Documents & Downloads

Datasheet

Datasheet 3351283 LAPP 0031405/1000 Data transfer cable UNITRONIC® FD Li2YCY (TP) A 2 x 2 x 0.5 mm² Black 1000 m

User & Safety Instructions

User & Safety Instructions 3351283 LAPP 0031405/1000 Data transfer cable UNITRONIC® FD Li2YCY (TP) A 2 x 2 x 0.5 mm² Black 1000 m

Description

UNITRONIC® FD Li2YCY (TP) A BE 2X2x0.5 Low frequency data cable; 2X0.5; Wire color code: DIN 47100; PVC; shielded; UL recognized; drag chain

This text is machine translated.

Description

UNITRONIC® FD Li2YCY (TP) A BE 2X2x0.5 Low frequency data cable; 2X0.5; Wire color code: DIN 47100; PVC; shielded; UL recognized; drag chain

This text is machine translated.
