Name: LAPP 0031407/100 Data transfer cable UNITRONIC® FD Li2YCY (TP) A 0 2 x 0.5 mm² Black 100 m
Brand: LAPP
SKU: 3351306

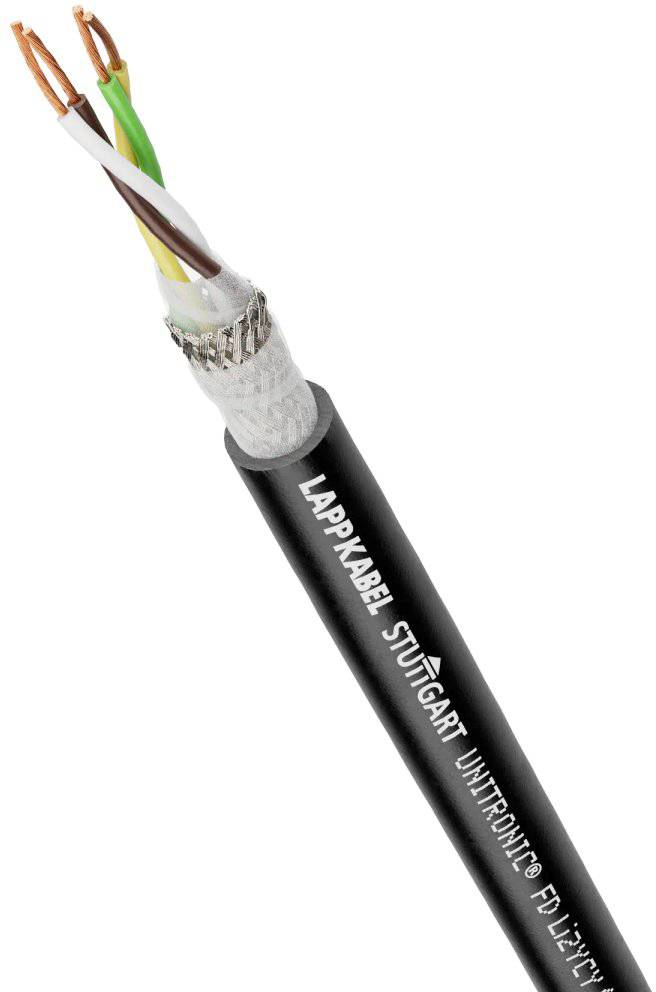

Black data cable with four copper, colour-coded wires, labelled 'LAPPKABEL STUTTGART UNITRONIC FD LI2YCY PI'.

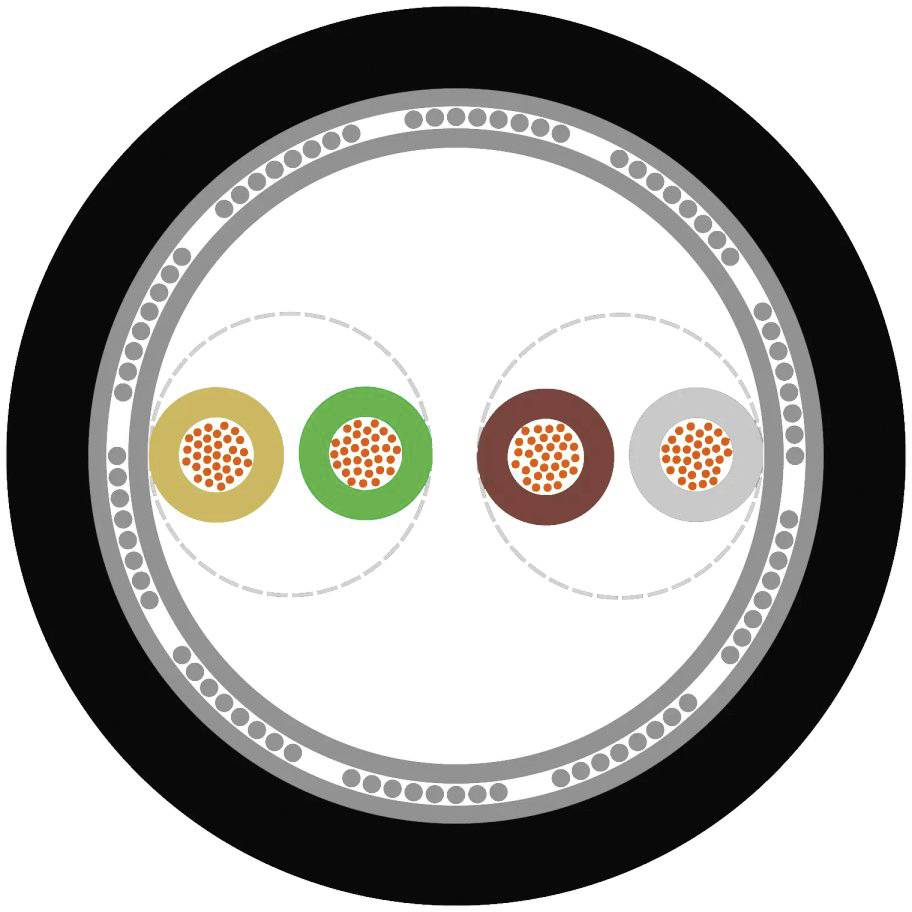

Diagram of an electrical cable with four cables of different colours, surrounded by a black outer protective sheath.

1/2

Image similar

Product type

Data transfer cable

Cross section (each core)

0.5 mm²

Cable features

Suitable for drag chains

Cable type

UNITRONIC® FD Li2YCY (TP) A

Twisted pair cabling (part 1)

Yes (1)

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Data transfer cable

Cable type: UNITRONIC® FD Li2YCY (TP) A

Cross section (each core): 0.5 mm²

Twisted pair cabling (part 1): Yes (1)

Cross section: 0 2 x 0.5 mm²

Cable features: Suitable for drag chains

Outside Ø: 9 mm

Factory colour: Black

Content: 100 m

Halogen-free: No

Shielded: Yes

Manufacturer part #: 0031407/100

Insulation material: Polyvinyl chloride

Min. temperature range (fixed installation): -40 °C

Max. temperature range (fixed installation): 70 °C

Max. length sold by the metre: 100 m

Type: UNITRONIC® FD Li2YCY (TP) A BE 4X2X0,5

: FALSE

: 0.5 mm²

: Other

: Colour

: Black

: Copper

: Polyvinyl chloride (PVC)

: -40-70 °C

: FALSE

: FALSE

: 9.8 mm

: FALSE

: Bare

: Other

: 39.2 mm

: Polyethylene (PE)

: Other

: Round

: FALSE

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3351306 LAPP 0031407/100 Data transfer cable UNITRONIC® FD Li2YCY (TP) A 0 2 x 0.5 mm² Black 100 m

User & Safety Instructions

User & Safety Instructions 3351306 LAPP 0031407/100 Data transfer cable UNITRONIC® FD Li2YCY (TP) A 0 2 x 0.5 mm² Black 100 m

Description

UNITRONIC® FD Li2YCY (TP) A BE 4x2x0.5 Data cable low frequency; 4X2x0.5; Wire color code: DIN 47100; PVC; shielded; UL recognized; drag chain

This text is machine translated.

Description

UNITRONIC® FD Li2YCY (TP) A BE 4x2x0.5 Data cable low frequency; 4X2x0.5; Wire color code: DIN 47100; PVC; shielded; UL recognized; drag chain

This text is machine translated.
