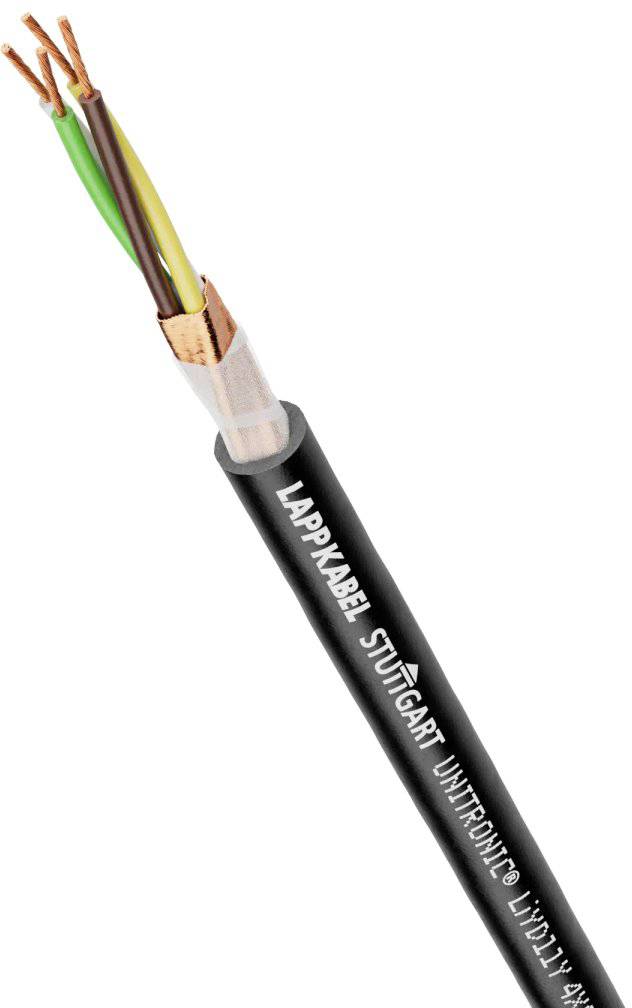

LAPP 0033307/100 Data transfer cable UNITRONIC® LiYD11Y 7 x 0.25 mm² Black 100 m
Product type
Data transfer cable
No. of leads
7 x
Cross section (each core)
0.25 mm²
Cable features
PUR coating
Cable type
UNITRONIC® LiYD11Y
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Data transfer cable
- Cable type
UNITRONIC® LiYD11Y
- No. of leads
7 x
- Cross section (each core)
0.25 mm²
- No. of leads (part 2)
7 x
- Cross section
7 x 0.25 mm²
- Cable features
PUR coating
- Outside Ø
7 mm
- Factory colour
Black
- Content
100 m
- Bend radius (no. of ODs for fixed installation)
6
- Bend radius (no. of ODs for flexible installation)
10
- Sold per metre
No
- Halogen-free
No
- Shielded
Yes
- Manufacturer part #
0033307/100
- Insulation material
Polyurethane
- Min. temperature range (fixed installation)
-40 °C
- Max. temperature range (fixed installation)
80 °C
- Max. length sold by the metre
100 m
- Type
UNITRONIC® LiYD11Y 7x0,25
TRUE
0.25 mm²
Polyvinyl chloride (PVC)
Colour
Black
Copper
Polyurethane (PUR)
-40-80 °C
7
FALSE
FALSE
7.3 mm
FALSE
Bare
73.0 mm
43.8 mm
Other
Other
Round
FALSE
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3351835 LAPP 0033307/100 Data transfer cable UNITRONIC® LiYD11Y 7 x 0.25 mm² Black 100 m
User & Safety Instructions
User & Safety Instructions 3351835 LAPP 0033307/100 Data transfer cable UNITRONIC® LiYD11Y 7 x 0.25 mm² Black 100 m
Description

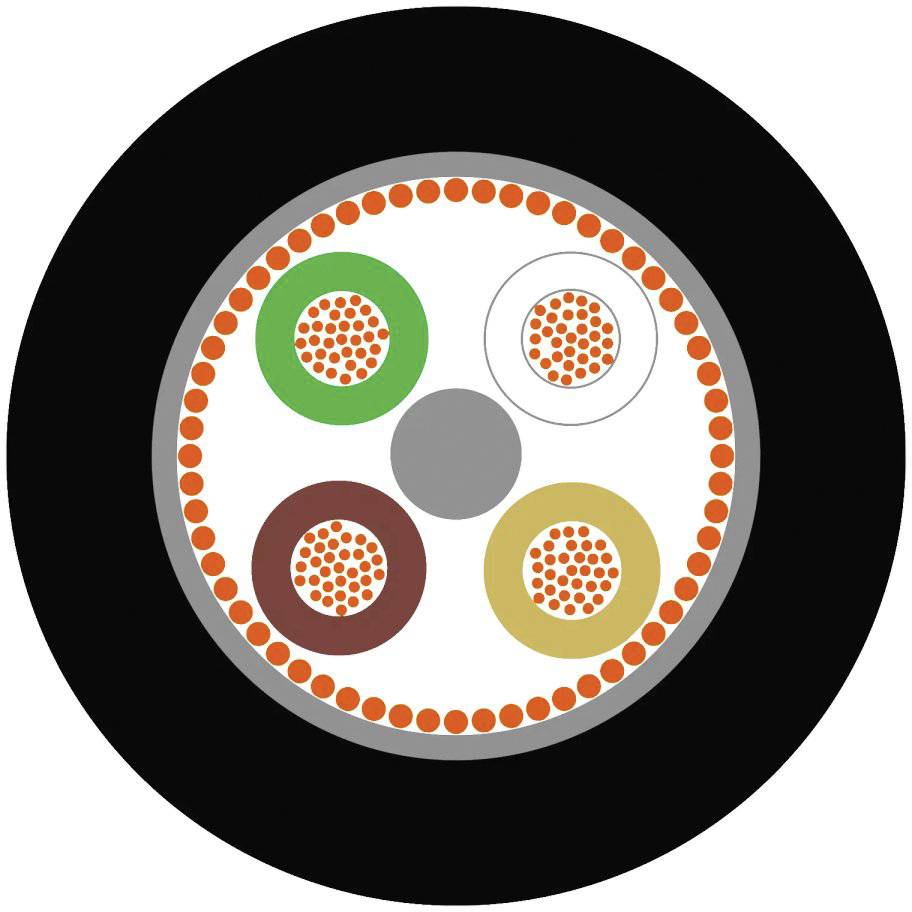

UNITRONIC® LiYD11Y 7x0.25 Data cable low frequency; 7X0.25; Wire color code: DIN 47100; PUR; shielded; flexible
This text is machine translated.
This text is machine translated.
