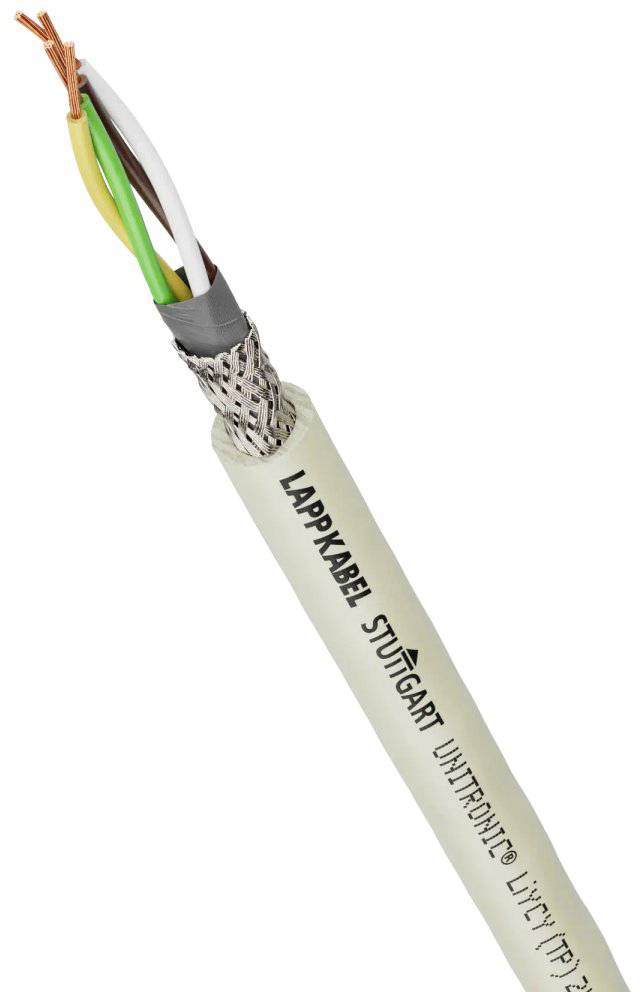

LAPP 0035137/50 Data transfer cable UNITRONIC® LiYCY (TP) 25 x 2 x 0.14 mm² Grey 50 m
Product type
Data transfer cable
No. of leads
50 x
Cross section (each core)
0.14 mm²
Cable features
Flexible
Cable type
UNITRONIC® LiYCY (TP)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Data transfer cable
- Cable type
UNITRONIC® LiYCY (TP)
- No. of leads
50 x
- Cross section (each core)
0.14 mm²
- Twisted pair cabling (part 1)
Yes (1)
- Cross section
25 x 2 x 0.14 mm²
- Cable features
Flexible
- Outside Ø
12 mm
- Factory colour
Grey
- Content
50 m
- Halogen-free
No
- Shielded
Yes
- Manufacturer part #
0035137/50
- Insulation material
Polyvinyl chloride
- Min. temperature range (fixed installation)
-40 °C
- Max. temperature range (fixed installation)
80 °C
- Max. length sold by the metre
50 m
- Type
UNITRONIC® LiYCY (TP) 25x2x0,14
FALSE
0.14 mm²
Polyvinyl chloride (PVC)
Colour
According to IEC/EN 60332-1-2
Grey
Copper
Polyvinyl chloride (PVC)
-40-80 °C
FALSE
FALSE
12.5 mm
FALSE
Bare
Eca
187.5 mm
75.0 mm
Other
Other
Round
FALSE
Documents & Downloads
Datasheet
Datasheet 3351396 LAPP 0035137/50 Data transfer cable UNITRONIC® LiYCY (TP) 25 x 2 x 0.14 mm² Grey 50 m
User & Safety Instructions
User & Safety Instructions 3351396 LAPP 0035137/50 Data transfer cable UNITRONIC® LiYCY (TP) 25 x 2 x 0.14 mm² Grey 50 m
Description

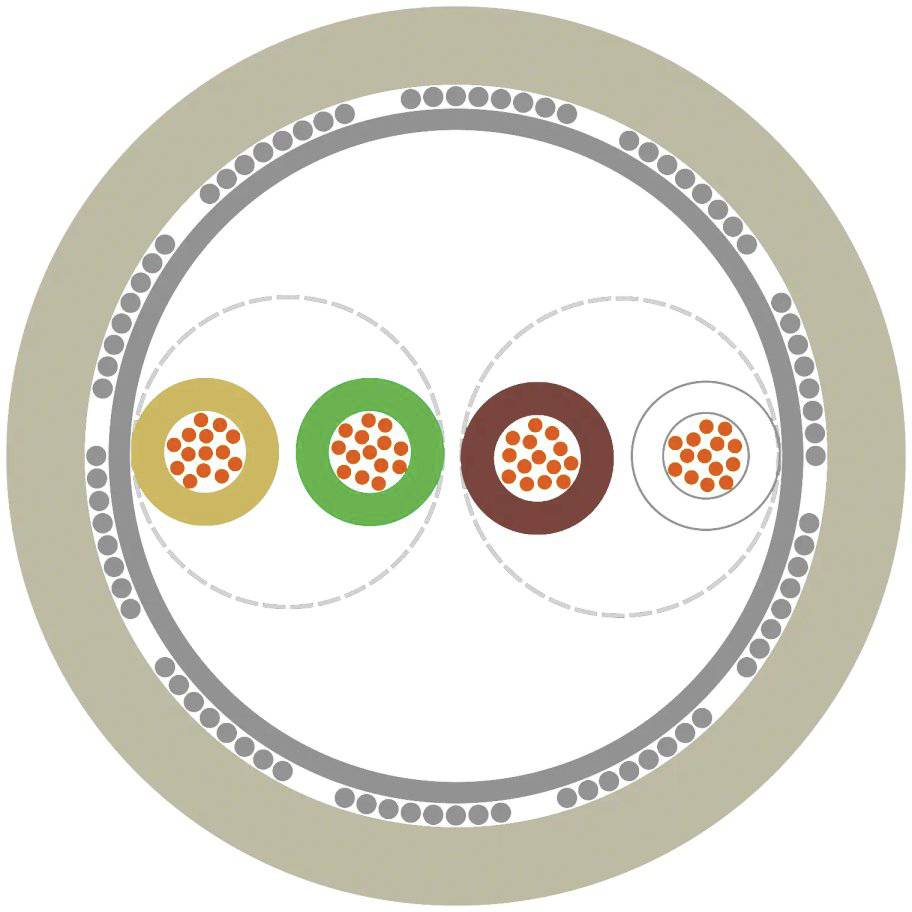

UNITRONIC ® LiYCY (TP) 25x2x0.14 low-frequency data cable; 25X2x0.14; Wire color code: DIN 47100; PVC; shielded; flexible
This text is machine translated.
This text is machine translated.
