Name: LAPP 0044703/305 Data transfer cable UNITRONIC® LiYCY 3 x 0.34 mm² 305 m
Brand: LAPP
SKU: 3351824

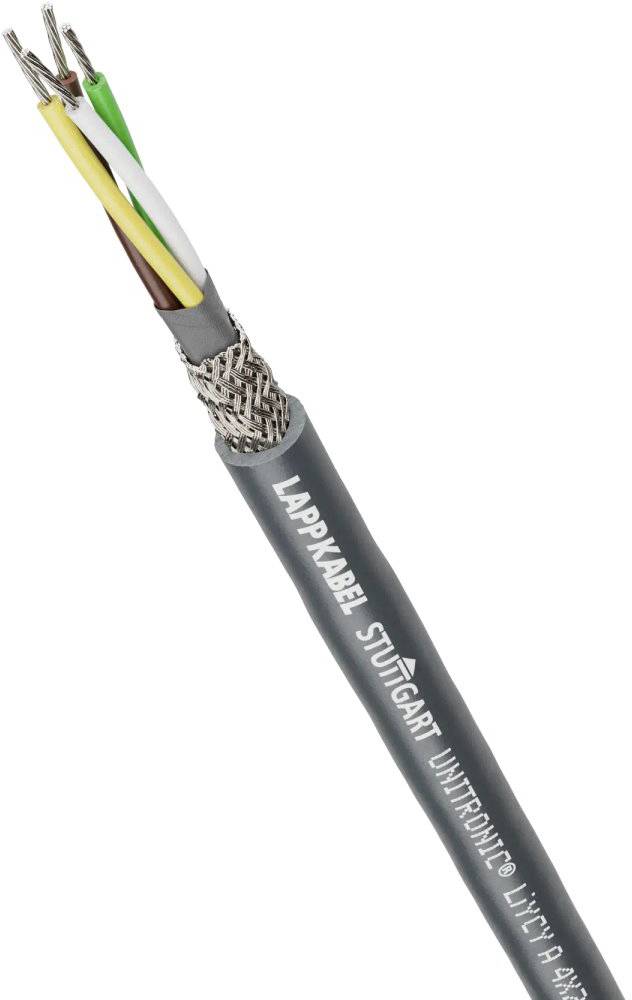

A grey, multi-core cable with metal braiding and coloured wires at the end, marked with 'LAPPKABEL STUTTGART UNITRONIC'.

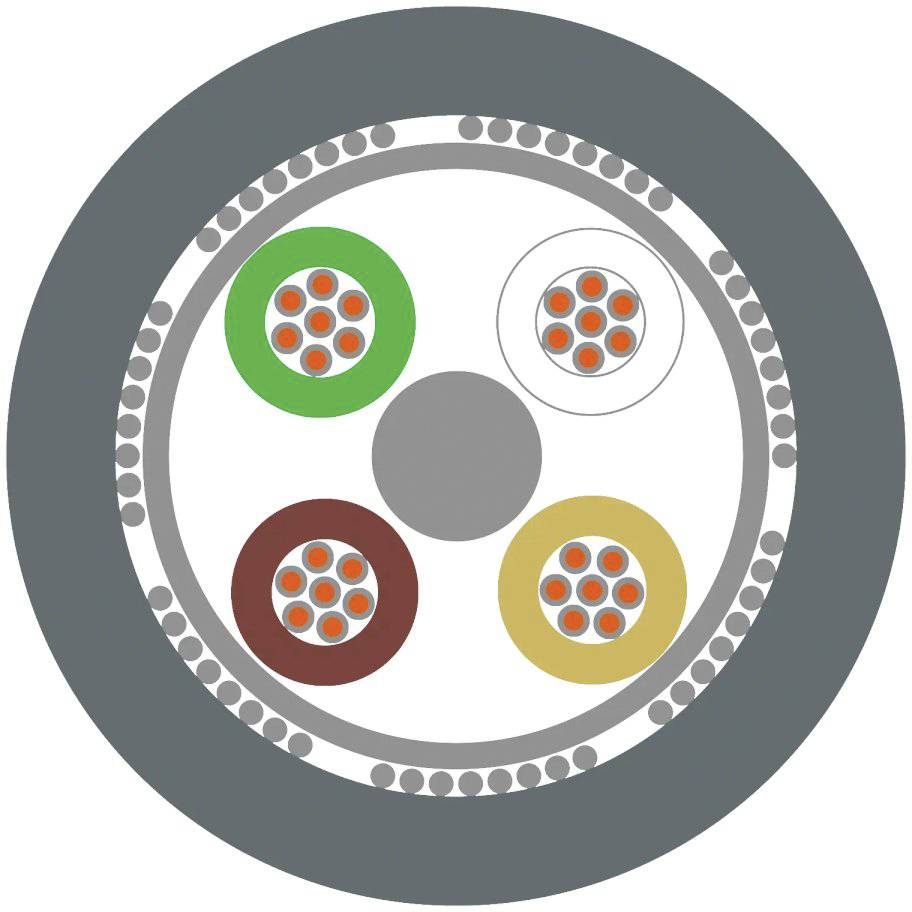

Cross-section of a cable with four differently coloured conductor pairs, surrounded by insulation and small protective spheres for protection and functionality.

1/2

Image similar

Product type

Data transfer cable

No. of leads

3 x

Cross section (each core)

0.34 mm²

Cable features

Shielded

Cable type

UNITRONIC® LiYCY

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Data transfer cable

Cable type: UNITRONIC® LiYCY

No. of leads: 3 x

Cross section (each core): 0.34 mm²

Cross section: 3 x 0.34 mm²

Cable features: Shielded

Outside Ø: 5 mm

Content: 305 m

AWG (min.): 22

AWG max.: 22

Bend radius (no. of ODs for fixed installation): 6

Bend radius (no. of ODs for flexible installation): 15

Sold per metre: Yes

Halogen-free: No

Shielded: Yes

Manufacturer part #: 0044703/305

Insulation material: Polyvinyl chloride

Min. temperature range (flexible installation): -40 °C

Max. temperature range (flexible installation): 80 °C

Min. temperature range (fixed installation): -40 °C

Max. temperature range (fixed installation): 80 °C

Max. length sold by the metre: 305 m

Type: UNITRONIC® LiYCY A 3X22AWG/7

: FALSE

: 0.34 mm²

: Polyvinyl chloride (PVC)

: Colour

: Other

: Copper

: Polyvinyl chloride (PVC)

: -40-80 °C

: 3

: FALSE

: FALSE

: 5.7 mm

: FALSE

: Tinned

: Other

: 85.5 mm

: 34.2 mm

: Other

: Other

: Round

: FALSE

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3351824 LAPP 0044703/305 Data transfer cable UNITRONIC® LiYCY 3 x 0.34 mm² 305 m

User & Safety Instructions

User & Safety Instructions 3351824 LAPP 0044703/305 Data transfer cable UNITRONIC® LiYCY 3 x 0.34 mm² 305 m

Description

UNITRONIC® LiYCY A 3X22AWG/7 Data cable low frequency; 3X22 AWG; Wire color code: DIN 47100 without color repetition; PVC; shielded; UL recognized; flexible

This text is machine translated.

Description

UNITRONIC® LiYCY A 3X22AWG/7 Data cable low frequency; 3X22 AWG; Wire color code: DIN 47100 without color repetition; PVC; shielded; UL recognized; flexible
