Name: LAPP 1030607/500 Data transfer cable UNITRONIC® LiYCY (TP) 1.5 x 2 x 0.14 mm² Black 500 m
Brand: LAPP
SKU: 3351417

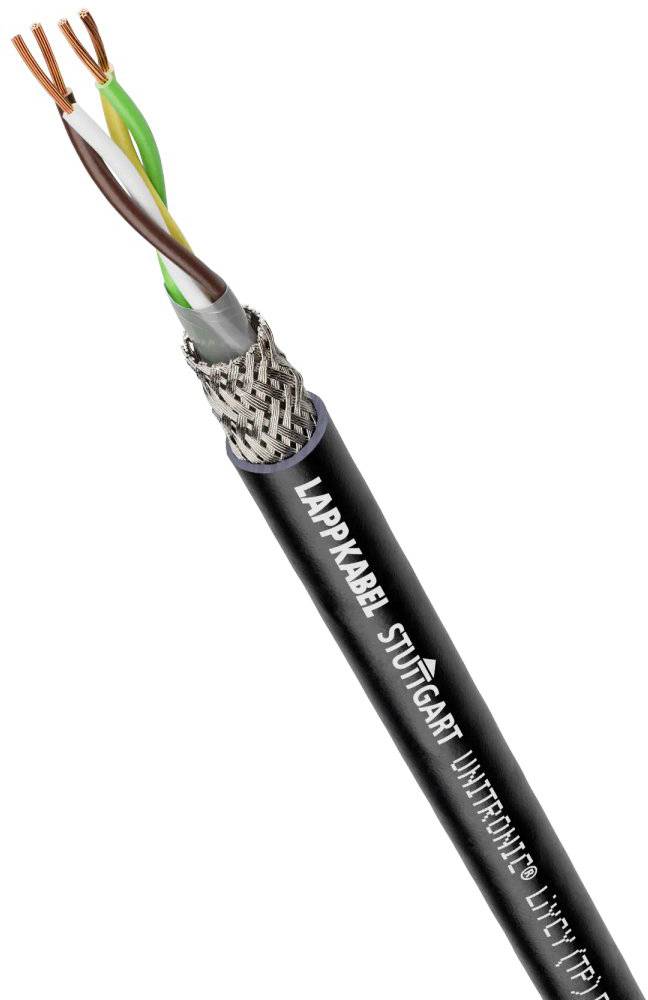

A black cable with the inscription 'LAPPKABEL STUTTGART UNITRONIC' and exposed, coloured copper wires at one end.

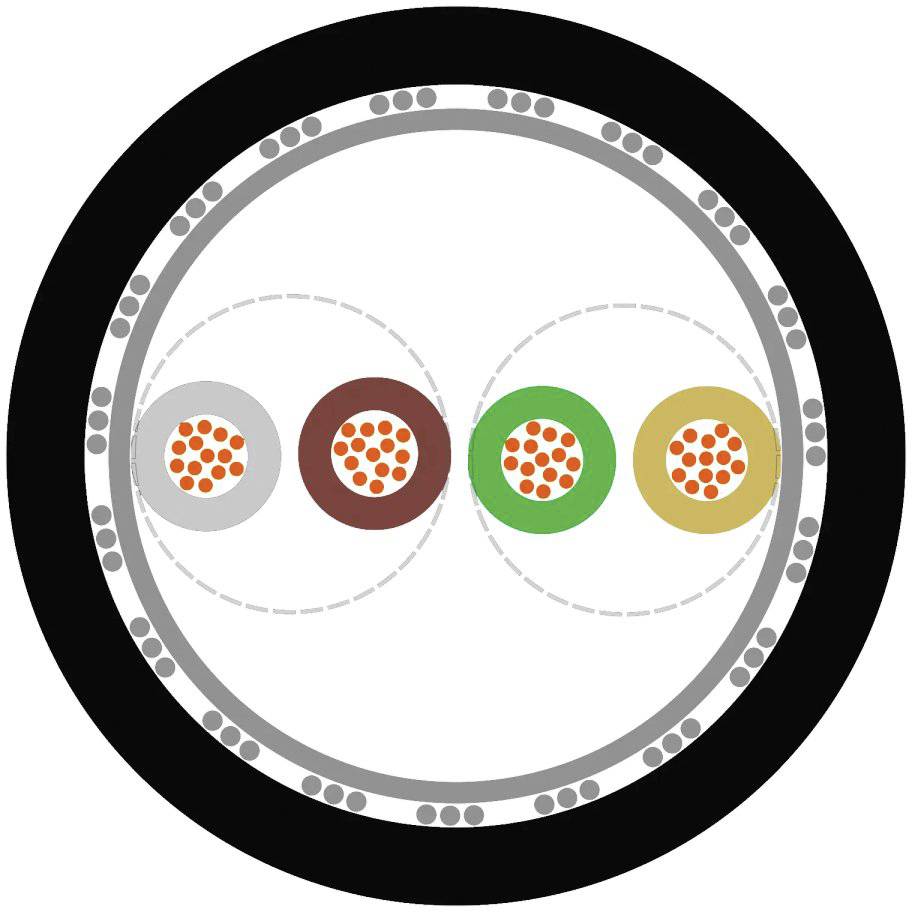

Cross-section of a cable shows four differently coloured conductors: grey, brown, green/yellow, and yellow, each with orange dots inside.

1/2

Image similar

Product type

Data transfer cable

No. of leads

3 x

Cross section (each core)

0.14 mm²

Cable features

Shielded

Cable type

UNITRONIC® LiYCY (TP)

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Data transfer cable

Cable type: UNITRONIC® LiYCY (TP)

No. of leads: 3 x

Cross section (each core): 0.14 mm²

Twisted pair cabling (part 1): Yes (1)

Cross section: 1.5 x 2 x 0.14 mm²

Cable features: Shielded

Outside Ø: 5 mm

Factory colour: Black

Content: 500 m

Bend radius (no. of ODs for fixed installation): 6

Bend radius (no. of ODs for flexible installation): 15

Sold per metre: No

Shielded: Yes

Manufacturer part #: 1030607/500

Insulation material: Polyvinyl chloride

Min. temperature range (fixed installation): -40 °C

Max. temperature range (fixed installation): 80 °C

Max. length sold by the metre: 500 m

Type: UNITRONIC® LiYCY (TP) 3x2x0,14 BK

: TRUE

: 0.14 mm²

: Polyvinyl chloride (PVC)

: Black

: Copper

: Polyvinyl chloride (PVC)

: -40-80 °C

: 5.8 mm

: Bare

: 87.0 mm

: 34.8 mm

: Other

: Other

: Round

Documents & Downloads

Datasheet

Datasheet 3351417 LAPP 1030607/500 Data transfer cable UNITRONIC® LiYCY (TP) 1.5 x 2 x 0.14 mm² Black 500 m

User & Safety Instructions

User & Safety Instructions 3351417 LAPP 1030607/500 Data transfer cable UNITRONIC® LiYCY (TP) 1.5 x 2 x 0.14 mm² Black 500 m

Description

UNITRONIC ® LiYCY (TP) 3x2x0.14 BK low-frequency data cable; 3X2X0.14; wire color code: DIN 47100; PVC; shielded; flexible

This text is machine translated.

Description

UNITRONIC ® LiYCY (TP) 3x2x0.14 BK low-frequency data cable; 3X2X0.14; wire color code: DIN 47100; PVC; shielded; flexible
