Name: LAPP 1030612/100 Data transfer cable UNITRONIC® LiYCY (TP) 2 x 2 x 0.25 mm² Black 100 m
Brand: LAPP
SKU: 3351438

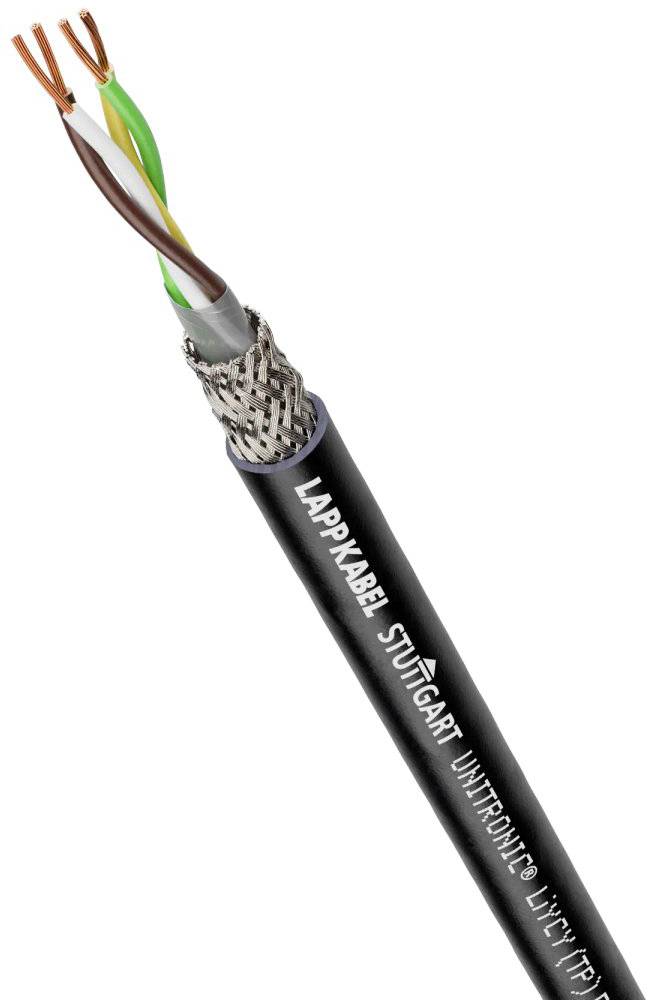

A black cable, slightly curved, with the print 'LAPPKABEL STUTTGART UNITRONIC'. The end shows four coloured wires.

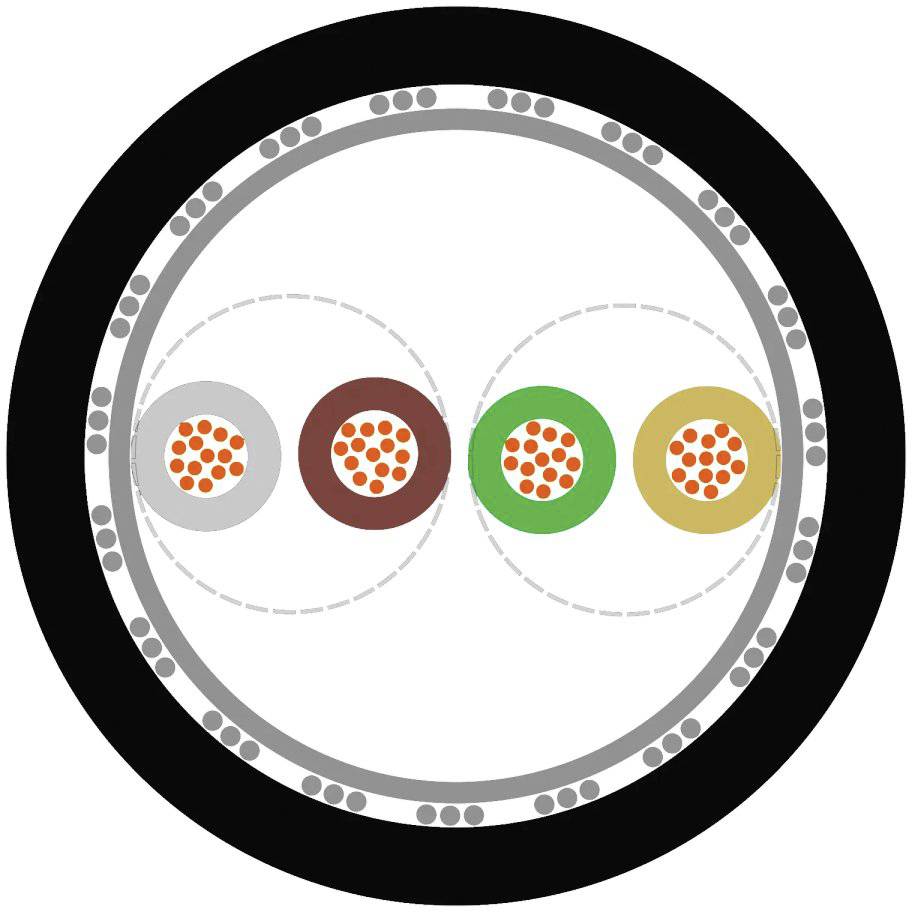

Cross-section of a coaxial cable with four coloured conductors (grey, brown, green, yellow). Inner copper wire and insulation visible.

1/2

Image similar

Product type

Data transfer cable

No. of leads

4 x

Cross section (each core)

0.25 mm²

Cable features

Shielded

Cable type

UNITRONIC® LiYCY (TP)

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Data transfer cable

Cable type: UNITRONIC® LiYCY (TP)

No. of leads: 4 x

Cross section (each core): 0.25 mm²

Twisted pair cabling (part 1): Yes (1)

No. of leads (part 2): 2 x

Cross section: 2 x 2 x 0.25 mm²

Cable features: Shielded

Outside Ø: 7 mm

Factory colour: Black

Content: 100 m

Bend radius (no. of ODs for fixed installation): 45.6

Bend radius (no. of ODs for flexible installation): 114

Sold per metre: Yes

Shielded: Yes

Manufacturer part #: 1030612/100

Insulation material: Polyvinyl chloride

Min. temperature range (flexible installation): -40 °C

Max. temperature range (flexible installation): 80 °C

Min. temperature range (fixed installation): -40 °C

Max. temperature range (fixed installation): 80 °C

Max. length sold by the metre: 100 m

Type: UNITRONIC® LiYCY (TP) 4x2x0,25 BK

: TRUE

: 0.25 mm²

: Polyvinyl chloride (PVC)

: Black

: Copper

: Polyvinyl chloride (PVC)

: -40-80 °C

: 7.6 mm

: Bare

: 114.0 mm

: 45.6 mm

: Other

: Other

: Round

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3351438 LAPP 1030612/100 Data transfer cable UNITRONIC® LiYCY (TP) 2 x 2 x 0.25 mm² Black 100 m

User & Safety Instructions

User & Safety Instructions 3351438 LAPP 1030612/100 Data transfer cable UNITRONIC® LiYCY (TP) 2 x 2 x 0.25 mm² Black 100 m

Description

UNITRONIC ® LiYCY (TP) 4x2x0.25 BK low-frequency data cable; 4x2x0.25; conductor color code: DIN 47100; PVC; shielded; flexible
