Name: LAPP 1030613/1000 Data transfer cable UNITRONIC® LiYCY (TP) 0 2 x 0.25 mm² Black 1000 m
Brand: LAPP
SKU: 3351461

Black data cable with exposed copper wires and shielding, labelled: 'LAPPKABEL STUTTGART UNITRONIC® LiYCY (TP)'.

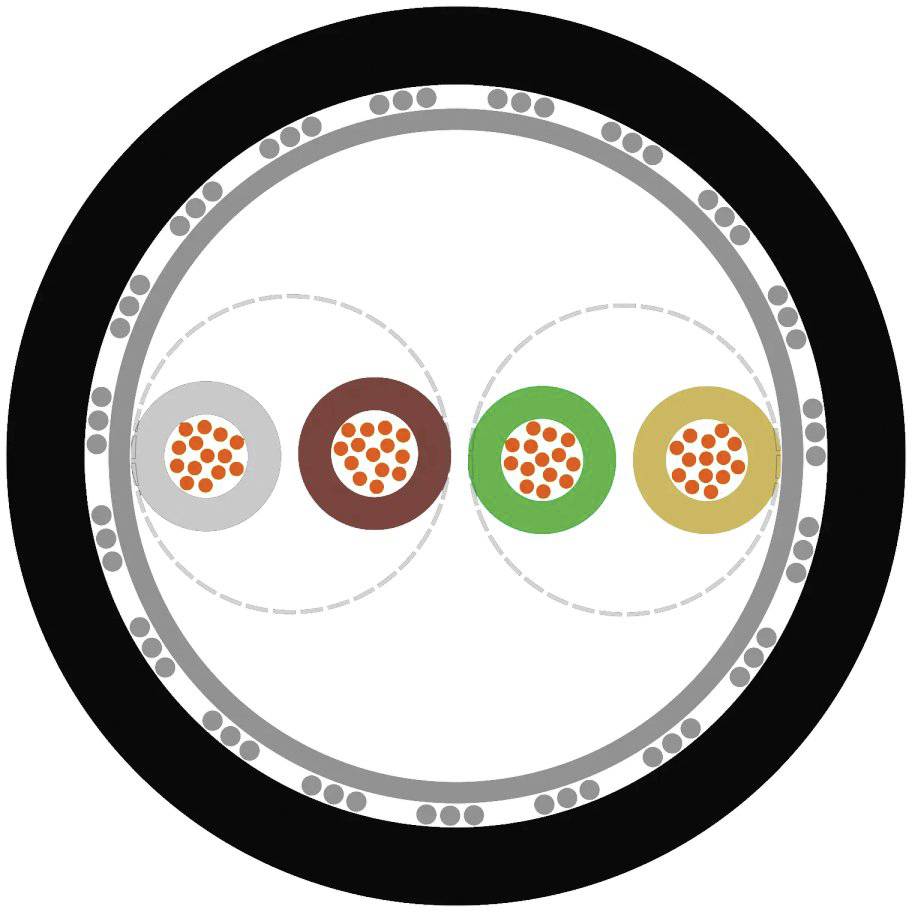

Cross-section of a cable with four coloured wires in a black sheath, arranged in a circular configuration.

1/2

Image similar

Product type

Data transfer cable

Cross section (each core)

0.25 mm²

Cable features

Flexible

Cable type

UNITRONIC® LiYCY (TP)

Twisted pair cabling (part 1)

Yes (1)

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Data transfer cable

Cable type: UNITRONIC® LiYCY (TP)

Cross section (each core): 0.25 mm²

Twisted pair cabling (part 1): Yes (1)

Cross section: 0 2 x 0.25 mm²

Cable features: Flexible

Outside Ø: 8 mm

Factory colour: Black

Content: 1000 m

Bend radius (no. of ODs for fixed installation): 6

Bend radius (no. of ODs for flexible installation): 15

Sold per metre: Yes

Shielded: Yes

Manufacturer part #: 1030613/1000

Insulation material: Polyvinyl chloride

Min. temperature range (flexible installation): -40 °C

Max. temperature range (flexible installation): 80 °C

Min. temperature range (fixed installation): -40 °C

Max. temperature range (fixed installation): 80 °C

Max. length sold by the metre: 1000 m

Type: UNITRONIC® LiYCY (TP) 6x2x0,25 BK

: TRUE

: 0.25 mm²

: Polyvinyl chloride (PVC)

: Black

: Copper

: Polyvinyl chloride (PVC)

: -40-80 °C

: 8.5 mm

: Bare

: 127.5 mm

: 51.0 mm

: Other

: Other

: Round

Documents & Downloads

Datasheet

Datasheet 3351461 LAPP 1030613/1000 Data transfer cable UNITRONIC® LiYCY (TP) 0 2 x 0.25 mm² Black 1000 m

User & Safety Instructions

User & Safety Instructions 3351461 LAPP 1030613/1000 Data transfer cable UNITRONIC® LiYCY (TP) 0 2 x 0.25 mm² Black 1000 m

Description

UNITRONIC ® LiYCY (TP) 6x2x0.25 BK low-frequency data cable; 6X2X0.25; Wire color code: DIN 47100; PVC; shielded flexible

This text is machine translated.

Description

UNITRONIC ® LiYCY (TP) 6x2x0.25 BK low-frequency data cable; 6X2X0.25; Wire color code: DIN 47100; PVC; shielded flexible

This text is machine translated.
