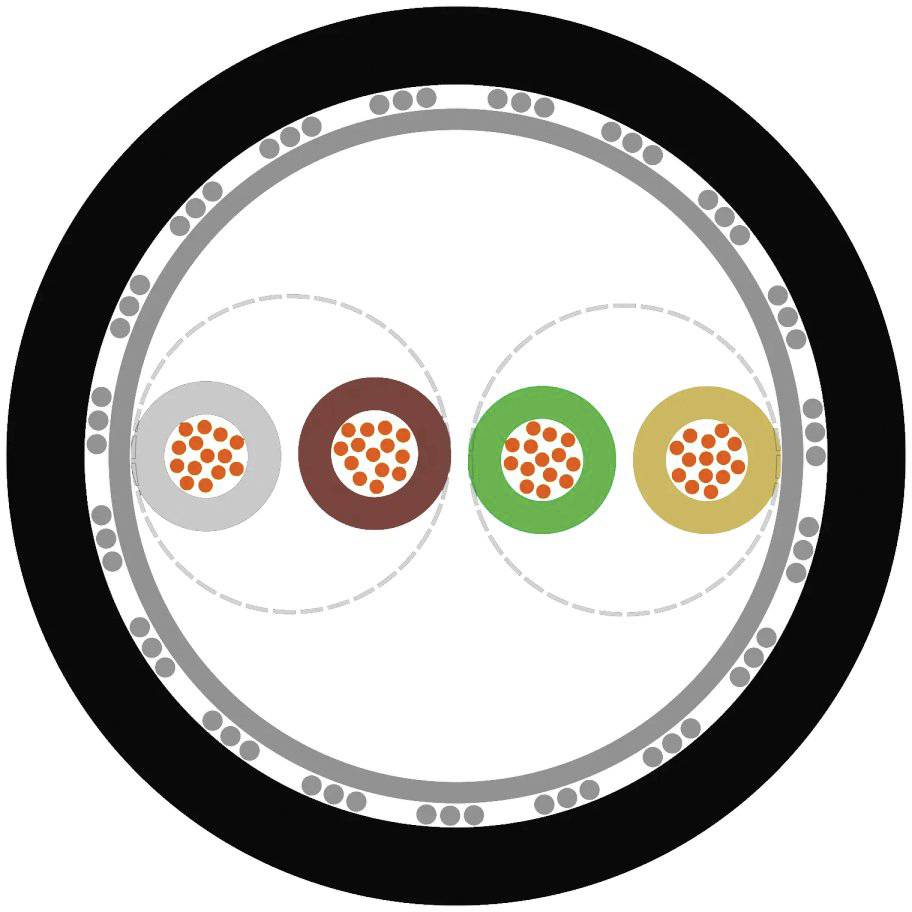

LAPP 1030633/1000 Data transfer cable UNITRONIC® LiYCY (TP) 2 x 2 x 1 mm² Black 1000 m
Product type
Data transfer cable
No. of leads
4 x
Cross section (each core)
1 mm²
Cable features
Flexible
Cable type
UNITRONIC® LiYCY (TP)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Data transfer cable
- Cable type
UNITRONIC® LiYCY (TP)
- No. of leads
4 x
- Cross section (each core)
1 mm²
- Twisted pair cabling (part 1)
Yes (1)
- Cross section
2 x 2 x 1 mm²
- Cable features
Flexible
- Outside Ø
9 mm
- Factory colour
Black
- Content
1000 m
- Packaged
No
- Sold per metre
No
- Shielded
Yes
- Manufacturer part #
1030633/1000
- Insulation material
Polyvinyl chloride
- Min. temperature range (fixed installation)
-40 °C
- Max. temperature range (fixed installation)
80 °C
- Max. length sold by the metre
1000 m
- Type
UNITRONIC® LiYCY (TP) 2x2x1 BK
TRUE
1 mm²
Polyvinyl chloride (PVC)
Black
Copper
Polyvinyl chloride (PVC)
-40-80 °C
9 mm
Bare
135.0 mm
54.0 mm
Other
Other
Round
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3351415 LAPP 1030633/1000 Data transfer cable UNITRONIC® LiYCY (TP) 2 x 2 x 1 mm² Black 1000 m
User & Safety Instructions
User & Safety Instructions 3351415 LAPP 1030633/1000 Data transfer cable UNITRONIC® LiYCY (TP) 2 x 2 x 1 mm² Black 1000 m
Description
UNITRONIC ® LiYCY (TP) 2x2x1 BK low-frequency data line; 2x2x1; wire color code: DIN 47100; PVC; shielded flexible
This text is machine translated.
This text is machine translated.
