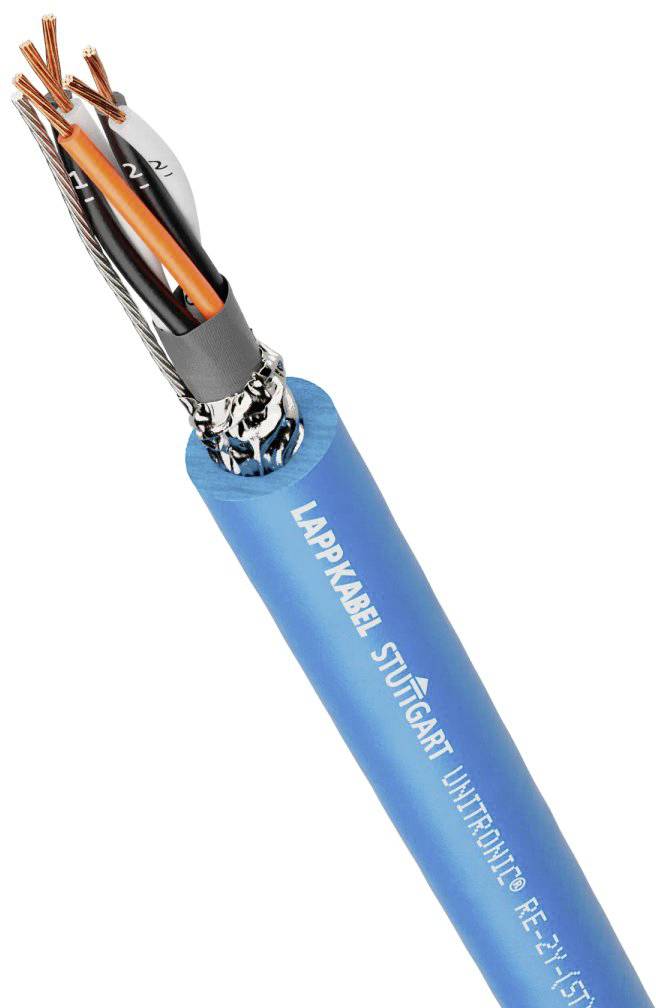

LAPP 1032401/100 Data transfer cable UNITRONIC® RE-2Y(ST)YV 2 x 2 x 0.5 mm² Blue 100 m
Product type
Data transfer cable
No. of leads
4 x
Cross section (each core)
0.5 mm²
Cable features
Flexible
Cable type
UNITRONIC® RE-2Y(ST)YV
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Data transfer cable
- Cable type
UNITRONIC® RE-2Y(ST)YV
- No. of leads
4 x
- Cross section (each core)
0.5 mm²
- Twisted pair cabling (part 1)
Yes (1)
- Cross section

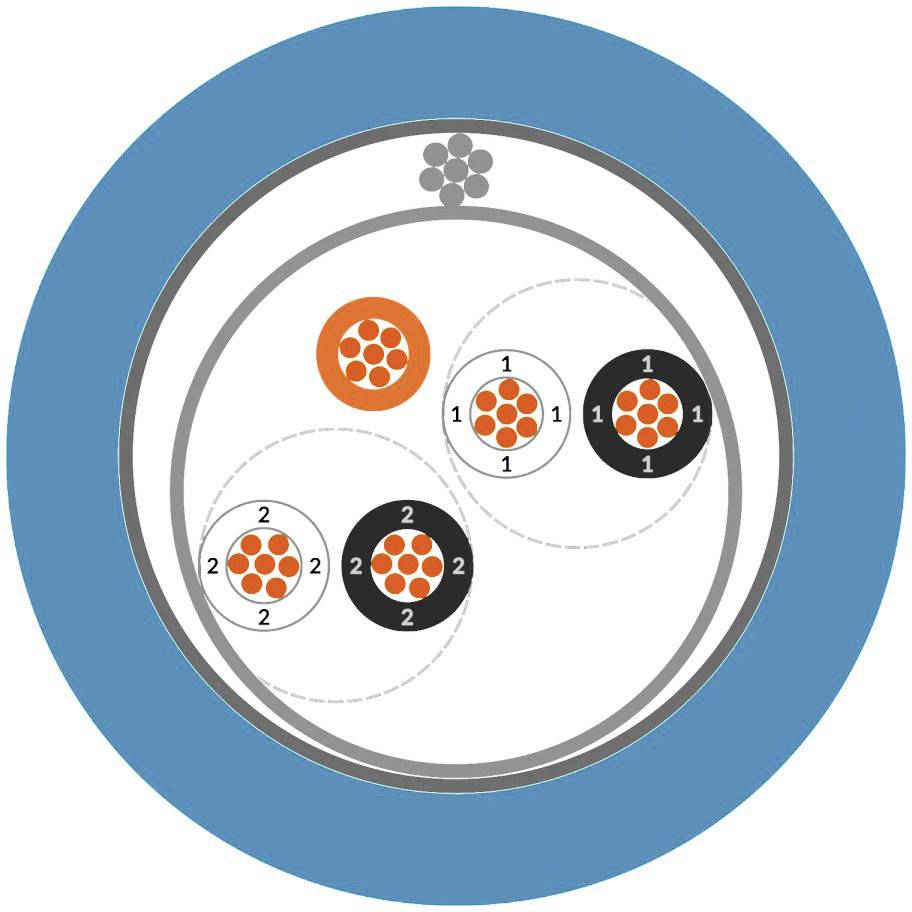

2 x 2 x 0.5 mm²
- Cable features
Flexible
- Outside Ø
8 mm
- Factory colour
Blue
- Content
100 m
- Bend radius (no. of ODs for fixed installation)
7.5
- Bend radius (no. of ODs for flexible installation)
15
- Packaged
Yes
- Sold per metre
No
- Shielded
Yes
- Manufacturer part #
1032401/100
- Insulation material
Polyvinyl chloride
- Min. temperature range (fixed installation)
-40 °C
- Max. temperature range (fixed installation)
80 °C
- Max. length sold by the metre
100 m
- Type
UNITRONIC® RE-2Y(ST)YV S 2X2X0,5 BU
FALSE
0.5 mm²
Other
Colours and numbers
Blue
Copper
Polyvinyl chloride (PVC)
-40-80 °C
8.5 mm
Bare
127.5 mm
63.8 mm
Polyethylene (PE)
Other
Round
Documents & Downloads
Datasheet
Datasheet 3352163 LAPP 1032401/100 Data transfer cable UNITRONIC® RE-2Y(ST)YV 2 x 2 x 0.5 mm² Blue 100 m
User & Safety Instructions
User & Safety Instructions 3352163 LAPP 1032401/100 Data transfer cable UNITRONIC® RE-2Y(ST)YV 2 x 2 x 0.5 mm² Blue 100 m
Description
UNITRONIC® RE-2Y(ST)YV S 2X2X0.5 BU COMPUTER CABLE; 2X0.5; BLUE; PVC; SHIELDED; flexible
This text is machine translated.
This text is machine translated.
