Name: LAPP 11139505/1000 Data transfer cable UNITRONIC® FD CP (TP) plus A 6 x 2 x 0.14 mm² Grey 1000 m
Brand: LAPP
SKU: 3351155

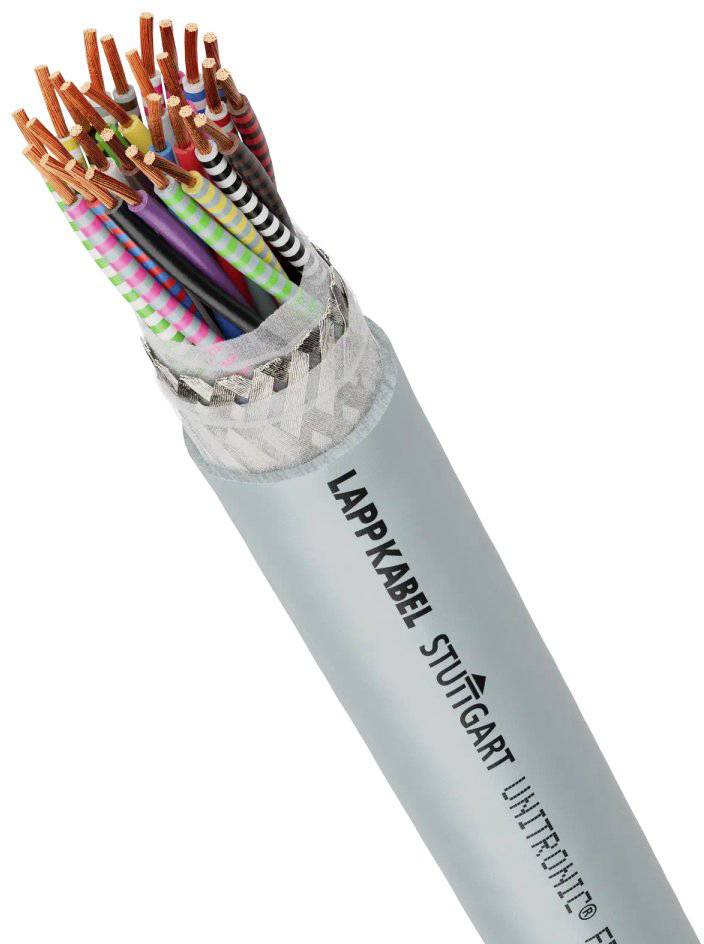

A grey, multi-core cable with coloured conductors, on which 'LAPPKABEL STUTTGART UNITRONIC' is written.

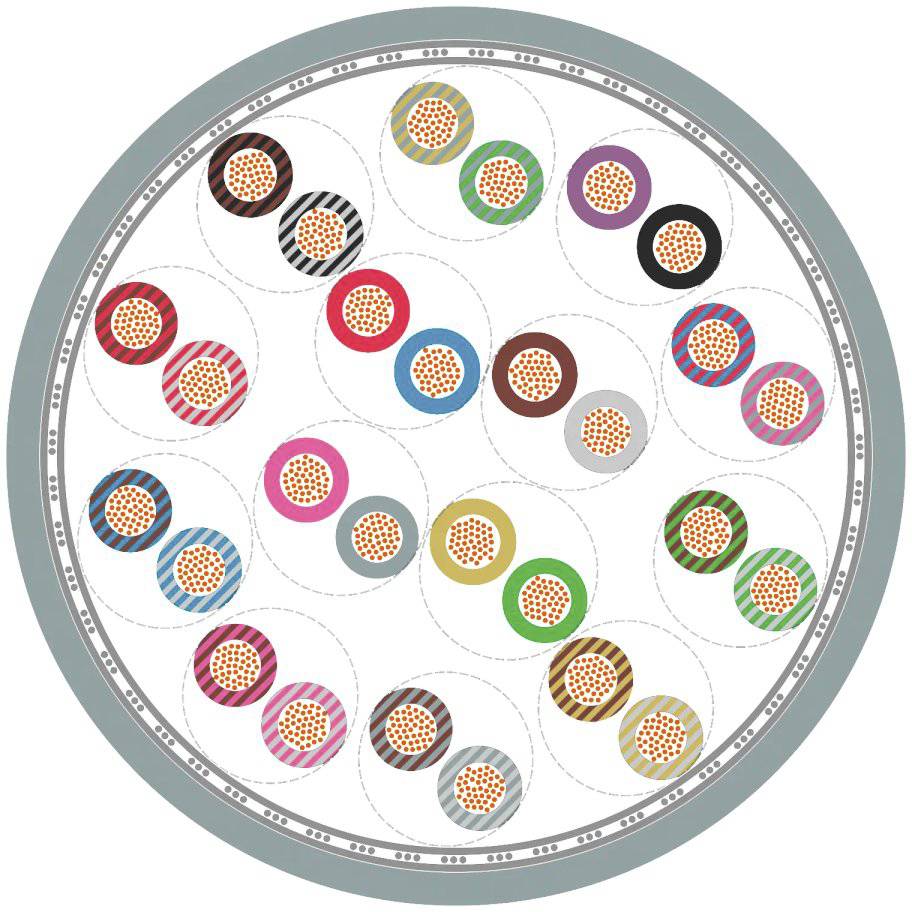

Multicoloured Cable Cross-Section: Various insulated wires in a circular pattern demonstrate the internal structure of a multicore cable.

1/2

Image similar

Product type

Data transfer cable

No. of leads

12 x

Cross section (each core)

0.14 mm²

Cable features

Suitable for drag chains

Cable type

UNITRONIC® FD CP (TP) plus A

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Data transfer cable

Cable type: UNITRONIC® FD CP (TP) plus A

No. of leads: 12 x

Cross section (each core): 0.14 mm²

Twisted pair cabling (part 1): Yes (1)

Cross section: 6 x 2 x 0.14 mm²

Cable features: Suitable for drag chains

Outside Ø: 7 mm

Factory colour: Grey

Content: 1000 m

Bend radius (no. of ODs for fixed installation): 30

Bend radius (no. of ODs for flexible installation): 56.3

Sold per metre: Yes

Halogen-free: No

Shielded: Yes

Manufacturer part #: 11139505/1000

Insulation material: Polyurethane

Min. temperature range (flexible installation): -40 °C

Max. temperature range (flexible installation): 80 °C

Min. temperature range (fixed installation): -40 °C

Max. temperature range (fixed installation): 80 °C

Max. length sold by the metre: 1000 m

Type: UNITRONIC® FD CP (TP) plus A 6X2X0,14

: TRUE

: 0.14 mm²

: Polyolefin

: Colour

: Grey

: Copper

: Polyurethane (PUR)

: -40-+80 °C

: 7.5 mm

: FALSE

: FALSE

: Bare

: 56.3 mm

: 30.0 mm

: Other

: Other

: Round

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3351155 LAPP 11139505/1000 Data transfer cable UNITRONIC® FD CP (TP) plus A 6 x 2 x 0.14 mm² Grey 1000 m

User & Safety Instructions

User & Safety Instructions 3351155 LAPP 11139505/1000 Data transfer cable UNITRONIC® FD CP (TP) plus A 6 x 2 x 0.14 mm² Grey 1000 m

Description

UNITRONIC® FD CP (TP) plus A 6X2X0.14 Low frequency data cable; 6X2X0.14; Wire color code: DIN 47100; PUR; shielded; UL recognized; drag chain

This text is machine translated.

Description

UNITRONIC® FD CP (TP) plus A 6X2X0.14 Low frequency data cable; 6X2X0.14; Wire color code: DIN 47100; PUR; shielded; UL recognized; drag chain
