Name: LAPP 11139608/1000 Data transfer cable UNITRONIC® FD CP plus A 2 x 0.25 mm² Grey 1000 m
Brand: LAPP
SKU: 3351214

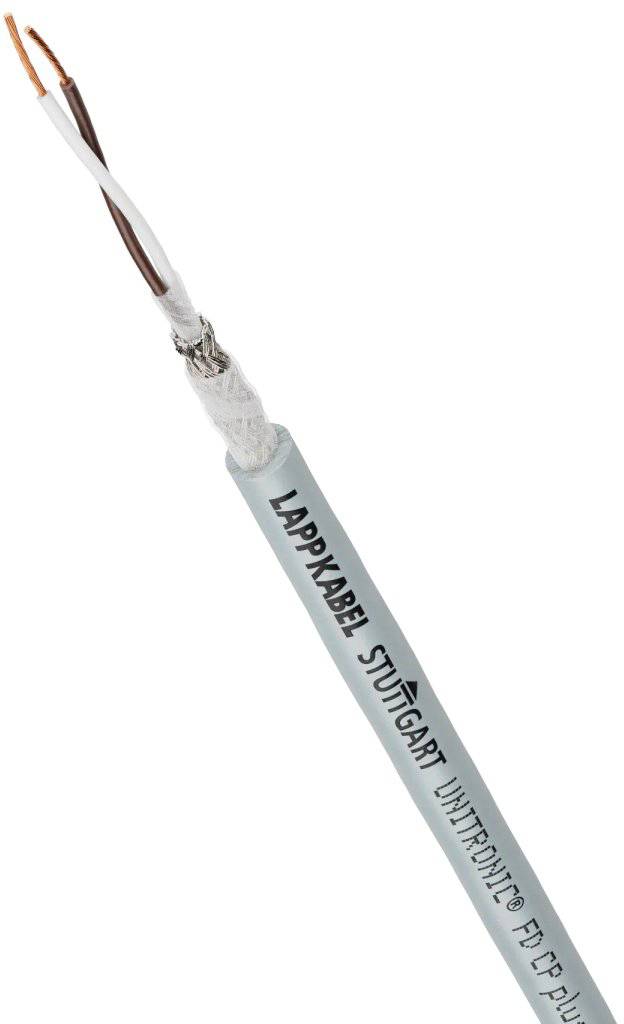

Two-core, shielded cable with grey outer sheath and the inscription 'Lappkabel Stuttgart UNITRONIC FD P'.

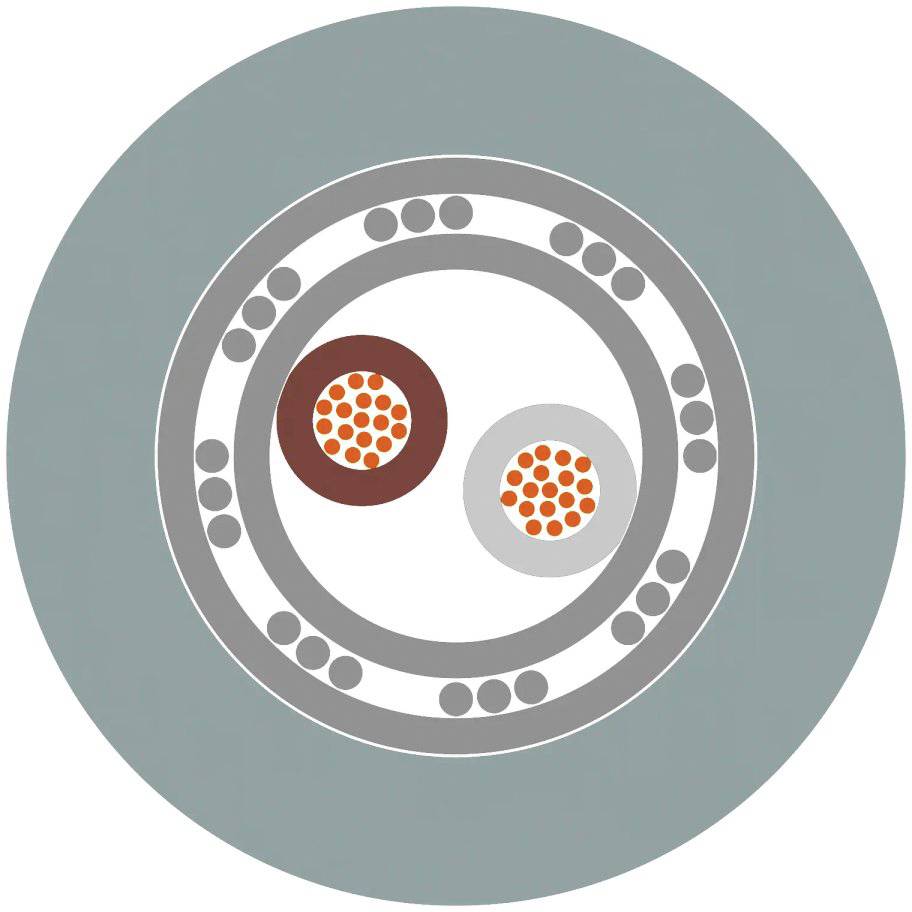

Pie chart of a structured cabling system showing two cores with orange points in different grey rings on a grey background.

1/2

Image similar

Product type

Data transfer cable

No. of leads

2 x

Cross section (each core)

0.25 mm²

Cable features

UL-approved

Shielded

Round

Colour-coded

PUR coating

Suitable for drag chains

UV-resistant

Cable type

UNITRONIC® FD CP plus A

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Data transfer cable

Cable type: UNITRONIC® FD CP plus A

No. of leads: 2 x

Cross section (each core): 0.25 mm²

Cross section: 2 x 0.25 mm²

Cable features: UL-approved
Shielded
Round
Colour-coded
PUR coating
Suitable for drag chains
UV-resistant

Outside Ø: 4 mm

Factory colour: Grey

Content: 1000 m

Sold per metre: Yes

Halogen-free: No

Shielded: Yes

Manufacturer part #: 11139608/1000

Insulation material: Polyurethane

Min. temperature range (fixed installation): -40 °C

Max. temperature range (fixed installation): 80 °C

Max. length sold by the metre: 1000 m

Type: UNITRONIC® FD CP plus A 2X0,25

: TRUE

: 0.25 mm²

: Polyolefin

: Colour

: Grey

: Copper

: Polyurethane (PUR)

: -40-+80 °C

: 2

: 4.7 mm

: FALSE

: FALSE

: Bare

: 35.3 mm

: 18.8 mm

: Other

: Other

: Round

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3351214 LAPP 11139608/1000 Data transfer cable UNITRONIC® FD CP plus A 2 x 0.25 mm² Grey 1000 m

User & Safety Instructions

User & Safety Instructions 3351214 LAPP 11139608/1000 Data transfer cable UNITRONIC® FD CP plus A 2 x 0.25 mm² Grey 1000 m

Description

UNITRONIC® FD CP plus A 2x0.25 data cable low frequency; 2X0.25; conductor color code: DIN 47100; PUR; shielded; UL recognized; drag chain

This text is machine translated.

Description

UNITRONIC® FD CP plus A 2x0.25 data cable low frequency; 2X0.25; conductor color code: DIN 47100; PUR; shielded; UL recognized; drag chain
