LAPP 15340001/100 Overhead line MM 3 x 1.5 mm² + 3 x 1.5 mm² 100 m
Product type
Overhead line
Cable type
MM
No. of leads
3 x
Cross section (each core)
1.5 mm²
No. of leads (part 2)
3 x
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Overhead line
- Cable type
MM
- No. of leads
3 x
- Cross section (each core)
1.5 mm²
- No. of leads (part 2)
3 x
- Cross section (each core) (part 2)
1.5 mm²
- Cross section
3 x 1.5 mm² + 3 x 1.5 mm²
- Cable features
Flat
Flexible
- Outside Ø
7.9 mm
- Content
100 m
- Nominal voltage
1000 V
- Nominal voltage U0
600 V
- Manufacturer part #
15340001/100
- Min. temperature range (fixed installation)
-45 °C
- Max. temperature range (fixed installation)
120 °C
- Max. length sold by the metre
100 m
- Type
ÖLFLEX® TRAIN 340 600V 3X1,5
1.5 mm²
Other
Numbers
1 kV
Black
Copper
Other
Class 5 = flexible
-45-120 °C
0.6 kV
FALSE
3
FALSE
TRUE
7.9 mm
FALSE
TRUE
Tinned
31.6 mm
Other
Other
Round
FALSE
FALSE
FALSE
FALSE
No
FALSE
TRUE
FALSE
FALSE
FALSE
FALSE
TRUE
TRUE
FALSE
FALSE
Documents & Downloads
Datasheet
Datasheet 3348829 LAPP 15340001/100 Overhead line MM 3 x 1.5 mm² + 3 x 1.5 mm² 100 m
Datasheet 3348829 LAPP 15340001/100 Overhead line MM 3 x 1.5 mm² + 3 x 1.5 mm² 100 m
User & Safety Instructions
User & Safety Instructions 3348829 LAPP 15340001/100 Overhead line MM 3 x 1.5 mm² + 3 x 1.5 mm² 100 m
Description

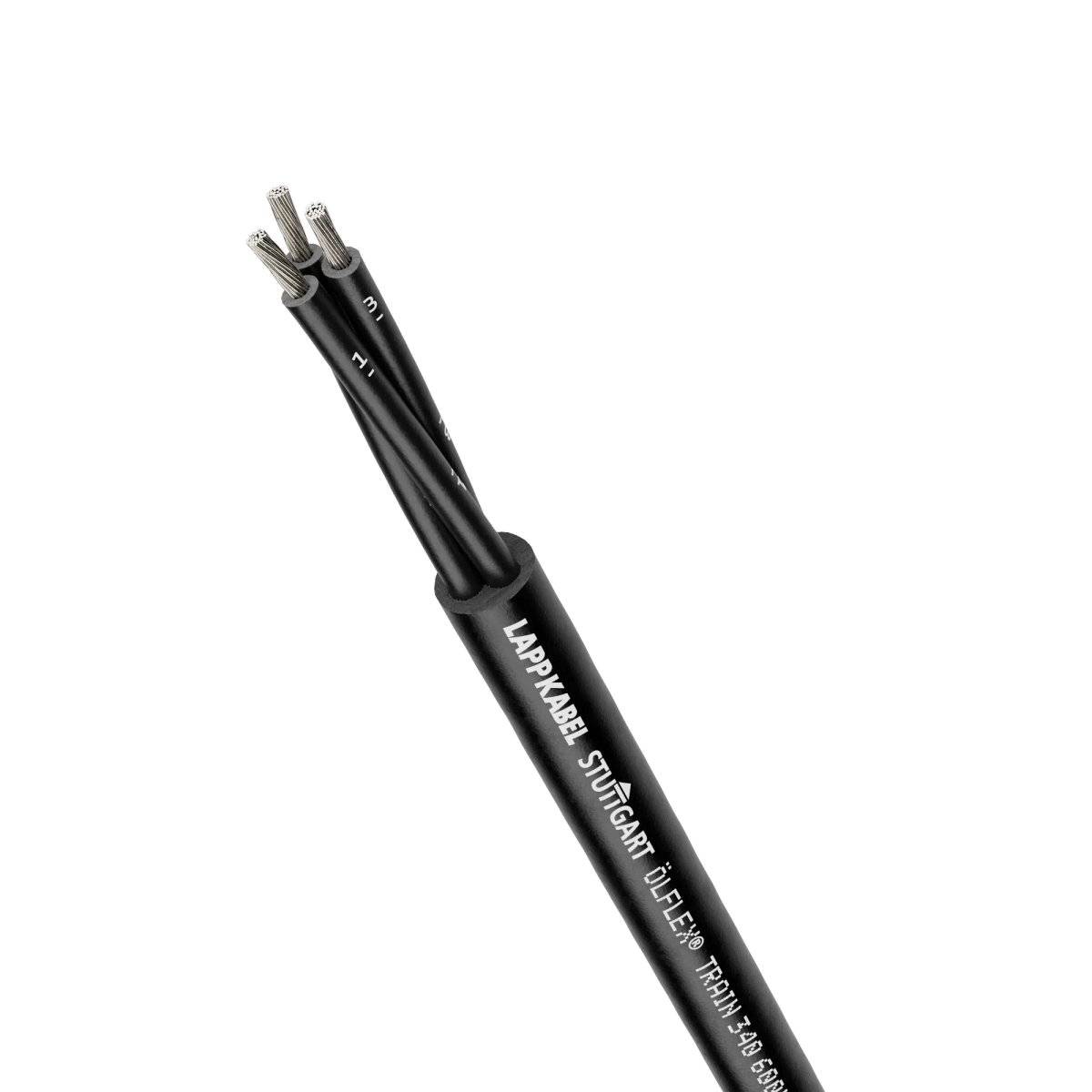

ÖLFLEX® TRAIN 340 600V 3x1.5 TRAIN; 3x1.5; EN 50264-3-2; type MM; U0/U: 0,6/1 kV; -45 - 120 °C; electron beam cross-linked polymer compound;
