Name: LAPP 2170209/500 Bus cable UNITRONIC® BUS 3 x 2 x 0.22 mm² + 0 2 x 0.22 mm² Violet 500 m
Brand: LAPP
SKU: 1044581

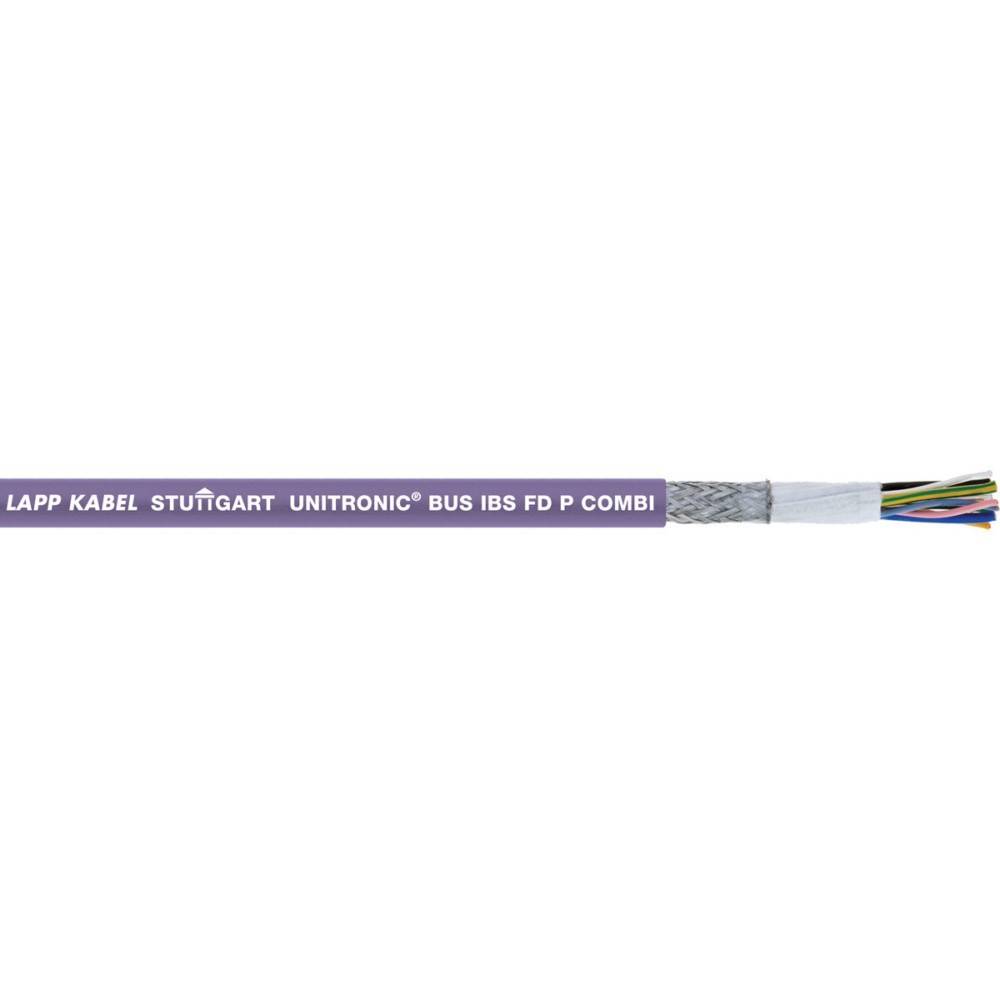

A purple cable with the inscription 'LAPP KABEL UNITRONIC BUS IBS', reveals various isolated cores at its end.

Image similar

Product type

Bus cable

Cable type

UNITRONIC® BUS

No. of leads

6 x

Cross section (each core)

0.22 mm²

Cross section (each core) (part 2)

0.22 mm²

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

UNITRONIC® InterBus-S

Technical specifications

Product type: Bus cable

Cable type: UNITRONIC® BUS

No. of leads: 6 x

Cross section (each core): 0.22 mm²

Cross section (each core) (part 2): 0.22 mm²

Cross section: 3 x 2 x 0.22 mm² + 0 2 x 0.22 mm²

Cable features: Flame-retardant

Outside Ø: 7.2

Type: For fixed installation

Factory colour: Violet

Content: 500 m

Nominal voltage: 250 V

Test voltage: Ader/Ader 1500 V

AWG max.: 24

Bend radius (no. of ODs for fixed installation): 8

Packaged: Yes

Sold per metre: No

Halogen-free: No

Shielded: No

Manufacturer part #: 2170209/500

Insulation material: PVC

Min. temperature range (fixed installation): -40 °C

Max. temperature range (fixed installation): +80 °C

Min. temperature range (flexible installation): -40 °C

Max. temperature range (flexible installation): +80 °C

Core resistance: Schleife: max. 186 Ω/km

Operating capacity: (800Hz) max. 60 nF/km

Certification marks: UL/CSA CMX approval

Wave impedance: 100 Ω

Type: UNITRONIC® BUS IBS A

Max. length sold by the metre: 500 m

Twisted pair cabling (part 1): Yes (1)

Twisted pair cabling (yes/no): Yes (1)

Peak operating voltage: (not for heavy current applications) 250 V

Bend radius: 8 x external dia., when permanently installed

Temperature range: -40 - +80 °C

Standards: InterBus

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 1044581 LAPP 2170209/500 Bus cable UNITRONIC® BUS 3 x 2 x 0.22 mm² + 0 2 x 0.22 mm² Violet 500 m

User & Safety Instructions

User & Safety Instructions 1044581 LAPP 2170209/500 Bus cable UNITRONIC® BUS 3 x 2 x 0.22 mm² + 0 2 x 0.22 mm² Violet 500 m

Description

IBS cable - for permanent installations (remote bus cable + installed remote bus cable). The maximum cable length of a bus segment for given bit rates are as follows:
500 kBit/s = max. 400 m (remote bus cable) = max. 50m (installed remote bus cable).
InterBus = one of the first field bus systems. Influence in the automotive industry.
LAPP CABLE is a member of the InterBus CLUB user organisation.
