LAPP 2170236/1000 Bus cable UNITRONIC® BUS 1 x 2 x 0.32 mm² + 0.32 mm² Violet-black 1000 m
EAN:
Part number:
Item no:
Product type
Bus cable
Cable type
UNITRONIC® BUS
No. of leads
2 x
Cross section (each core)
0.32 mm²
Cross section (each core) (part 2)
0.32 mm²
Datasheet (PDF)
Highlights & Details

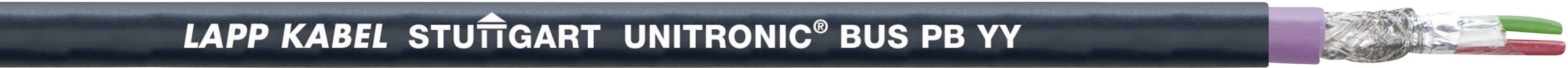

UNITRONIC ® BUS PB YY
Technical specifications
- Product type
Bus cable
- Cable type
UNITRONIC® BUS
- No. of leads
2 x
- Cross section (each core)
0.32 mm²
- Cross section (each core) (part 2)
0.32 mm²
- Cross section
1 x 2 x 0.32 mm² + 0.32 mm²
- Cable features
Halogen-free
Shielded
Common shield
UV-resistant
- Outside Ø
9.50 mm
- Factory colour
Violet-black
- Content
1000 m
- Nominal voltage
250 V
- Test voltage
Wire/Wire: 1500 V eff · Wire/shield: 1500 V
- Bend radius (no. of ODs for fixed installation)
10
- Packaged
Yes
- Sold per metre
No
- Halogen-free
Yes
- Shielded
Yes
- Manufacturer part #
2170236/1000
- Insulation material
PVC
- Min. temperature range (fixed installation)
-40 °C
- Max. temperature range (fixed installation)
+80 °C
- Min. temperature range (flexible installation)
-5 °C
- Max. temperature range (flexible installation)
+50 °C
- Operating capacity
(800 Hz): max. 30 nF/km
- Wave impedance
150 Ω
- Type
UNITRONIC BUS PB YY 1X2X0,64
- Max. length sold by the metre
1000 m
- Twisted pair cabling (part 1)
Yes (1)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1044708 LAPP 2170236/1000 Bus cable UNITRONIC® BUS 1 x 2 x 0.32 mm² + 0.32 mm² Violet-black 1000 m
User & Safety Instructions
User & Safety Instructions 1044708 LAPP 2170236/1000 Bus cable UNITRONIC® BUS 1 x 2 x 0.32 mm² + 0.32 mm² Violet-black 1000 m
Description
Robust, UV- and weather-resistant. Cables can be used both for PROFIBUS-DP, PROFIBUS-FMS and FIP.
This text is machine translated.
This text is machine translated.
