Name: LAPP 2170310/1000 Bus cable UNITRONIC® BUS 1 x 2 x 0.32 mm² + 0.32 mm² Black 1000 m
Brand: LAPP
SKU: 1044703

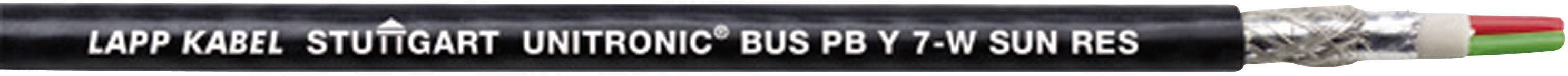

Black cable marked 'LAPP KABEL STUTTGART UNITRONIC BUS PB Y A IN SUN RES', with red and green wires at one end.

Product type

Bus cable

Cable type

UNITRONIC® BUS

No. of leads

2 x

Cross section (each core)

0.32 mm²

Cross section (each core) (part 2)

0.32 mm²

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

UNITRONIC ® BUS PB

Technical specifications

Product type: Bus cable

Cable type: UNITRONIC® BUS

No. of leads: 2 x

Cross section (each core): 0.32 mm²

Cross section (each core) (part 2): 0.32 mm²

Cross section: 1 x 2 x 0.32 mm² + 0.32 mm²

Cable features: Shielded
Common shield
UV-resistant

Outside Ø: 7.80 mm

Type: 7-strand, e.g. for applications with vibration

Factory colour: Black

Content: 1000 m

Test voltage: Wire/wire: 1500 V

Bend radius (no. of ODs for fixed installation): 8

Bend radius (no. of ODs for flexible installation): 15

Packaged: Yes

Sold per metre: No

Halogen-free: No

Shielded: Yes

Manufacturer part #: 2170310/1000

Insulation material: PVC

Min. temperature range (fixed installation): -40 °C

Max. temperature range (fixed installation): +80 °C

Min. temperature range (flexible installation): -10 °C

Max. temperature range (flexible installation): +70 °C

Core resistance: (Loop): Max. 133 Ohm/km

Wave impedance: 150 +/- 15 Ω

Type: UNITRONIC BUS PB Y 7-W FC BK

Max. length sold by the metre: 1000 m

Twisted pair cabling (part 1): Yes (1)

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 1044703 LAPP 2170310/1000 Bus cable UNITRONIC® BUS 1 x 2 x 0.32 mm² + 0.32 mm² Black 1000 m

User & Safety Instructions

User & Safety Instructions 1044703 LAPP 2170310/1000 Bus cable UNITRONIC® BUS 1 x 2 x 0.32 mm² + 0.32 mm² Black 1000 m

Description

Maximum EMC Sprung strips, suitable for dry and wet rooms. These bus cables can also be used for PROFIBUS-DP, PROFIBUS-FMS and FIP.

This text is machine translated.

Hints

For the bit rates listed according to the PNO specifications the following maximum cable length of a bus segment result (cable type A, PROFIBUS-DP): 93.75 kbit/s = 1200 m

187.5 kbit/s = 1000 m

500 kbit/s = 400 m

1.5 Mbit/s = 200 m

12.0 Mbit/s = 100 m.
